[løst] IDE-disker vises ikke (Ubuntu)

The Stig · 14. oktober 2007

Hei,

etter litt mas og fjas har jeg nå endelig fått Ubuntu opp på filserveren min. Etter en hel natts kranglig med Samba og diverse andre rariter, har jeg nå kommet til IDE-diskene mine.

Jeg har totalt 4 disker i serveren, 2 er SATA og 2 er PATA. De to førstnevnte fungerer godt som gull, og har forsåvidt alltid gjort det.

- 80Gb SATA disk ("C:"), OS installasjonen - ext3

- 200Gb SATA disk, filmer og div - NTFS

- 120Gb PATA disk, div kritiske dokumenter - NTFS

- 40Gb PATA disk, blank - NTFS

Grunnen til at jeg har NTFS på alle diskene er at filserveren tidligere kjørte på 2k3server, og WinXP før der. Under XP hadde jeg dog en lignende problem, der kunne diskene av og til "forsvinne", men en enkel restart løste dette.

Går jeg under dev/disk/by-id finner jeg kun de to SATA-diskene. Ergo vil jeg tro jeg mangler en form for driver eller lignende til IDE-kontrolleren.

Etter litt lesing på nett prøvde jeg å sette IDE-kontrolleren til "enchanced mode" fra "auto". Dette gjorde dog oppstarttiden noe voldsomt forlenget, fra ett minutt til ti! Fant forøvrig heller ikke diskene. Etter denne bomturen gikk jeg tilbake til "auto", men dessverre bruker serveren fortsatt like lang tid på oppstarten.

Jeg har store planer om å partisjonere samtlige av diskene til ext3, men skulle aller helst kunne fått hentet ut dokumentene fra 120Gb-disken først. Forenkler det dog problemet vesentlig at jeg kjører "riktig" filsystem, kan jeg ta back-up av hjelp av en windows-maskin. Dog, jeg vil tro at jeg må kunne se diskene før jeg kan partisjonere og formatere de

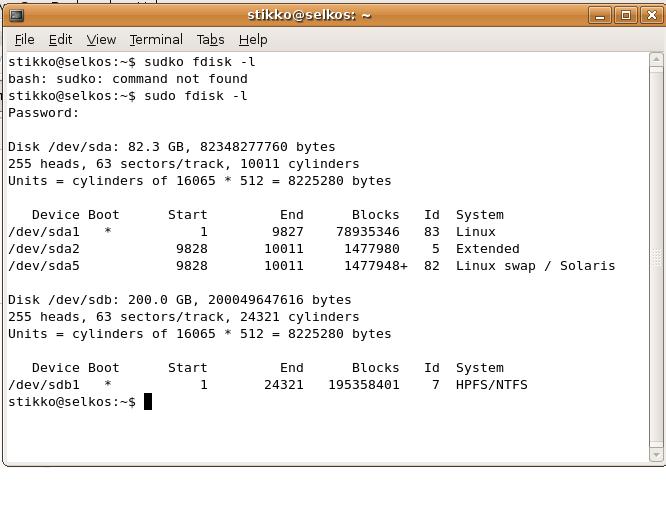

Legger ved resultatet av "fdisk -l".

Som alltid, tusen takk for svar!

Endret 15. oktober 2007 av Stikko

Del · 14. oktober 2007

Merkelige greier. Dårlig støttede IDE kontrollere er noe dritt, det burde vært ulovlig å ikke oppgi spesifikasjoner på dem. Sjekk om du får listet opp hvilken kontroller det er fra terminal:

lspci

Installer hwinfo fra terminal:

sudo aptitude install hwinfo

Se om den får rapportert noe:

hwinfo --pci

hwinfo --disk

The Stig · 14. oktober 2007

Sånn, tok med rubbel og bit - blir mye lesing. Må takke for hjelpa, setter enormt pris på dette

LSPCI:

stikko@selkos:~$ lspci
00:00.0 Host bridge: Intel Corporation 82915G/P/GV/GL/PL/910GL Memory Controller Hub (rev 04)
00:02.0 VGA compatible controller: Intel Corporation 82915G/GV/910GL Integrated Graphics Controller (rev 04)
00:1b.0 Audio device: Intel Corporation 82801FB/FBM/FR/FW/FRW (ICH6 Family) High Definition Audio Controller (rev 03)
00:1c.0 PCI bridge: Intel Corporation 82801FB/FBM/FR/FW/FRW (ICH6 Family) PCI Express Port 1 (rev 03)
00:1c.2 PCI bridge: Intel Corporation 82801FB/FBM/FR/FW/FRW (ICH6 Family) PCI Express Port 3 (rev 03)
00:1d.0 USB Controller: Intel Corporation 82801FB/FBM/FR/FW/FRW (ICH6 Family) USB UHCI #1 (rev 03)
00:1d.1 USB Controller: Intel Corporation 82801FB/FBM/FR/FW/FRW (ICH6 Family) USB UHCI #2 (rev 03)
00:1d.2 USB Controller: Intel Corporation 82801FB/FBM/FR/FW/FRW (ICH6 Family) USB UHCI #3 (rev 03)
00:1d.3 USB Controller: Intel Corporation 82801FB/FBM/FR/FW/FRW (ICH6 Family) USB UHCI #4 (rev 03)
00:1d.7 USB Controller: Intel Corporation 82801FB/FBM/FR/FW/FRW (ICH6 Family) USB2 EHCI Controller (rev 03)
00:1e.0 PCI bridge: Intel Corporation 82801 PCI Bridge (rev d3)
00:1f.0 ISA bridge: Intel Corporation 82801FB/FR (ICH6/ICH6R) LPC Interface Bridge (rev 03)
00:1f.2 IDE interface: Intel Corporation 82801FB/FW (ICH6/ICH6W) SATA Controller (rev 03)
00:1f.3 SMBus: Intel Corporation 82801FB/FBM/FR/FW/FRW (ICH6 Family) SMBus Controller (rev 03)
01:00.0 Ethernet controller: Marvell Technology Group Ltd. 88E8053 PCI-E Gigabit Ethernet Controller (rev 15)
02:00.0 Ethernet controller: Intel Corporation 82572EI Gigabit Ethernet Controller (Copper) (rev 06)

HWINFO --PCI

stikko@selkos:~$ hwinfo --pci
10: PCI 00.0: 0600 Host bridge
[Created at pci.281]
UDI: /org/freedesktop/Hal/devices/pci_8086_2580
Unique ID: qLht.kXEQ38Q+CK4
SysFS ID: /devices/pci0000:00/0000:00:00.0
SysFS BusID: 0000:00:00.0
Hardware Class: bridge
Model: "AOPEN 915G/P/GV/GL/PL/910GL Express Memory Controller Hub"
Vendor: pci 0x8086 "Intel Corporation"
Device: pci 0x2580 "915G/P/GV/GL/PL/910GL Express Memory Controller Hub"
SubVendor: pci 0xa0a0 "AOPEN Inc."
SubDevice: pci 0x2580
Revision: 0x04
Driver: "agpgart-intel"
Driver Modules: "intel_agp"
Module Alias: "pci:v00008086d00002580sv0000A0A0sd00002580bc06sc00i00"
Driver Info #0:
Driver Status: intel_agp is active
Driver Activation Cmd: "modprobe intel_agp"
Config Status: cfg=new, avail=yes, need=no, active=unknown

11: PCI 02.0: 0300 VGA compatible controller (VGA)
[Created at pci.281]
UDI: /org/freedesktop/Hal/devices/pci_8086_2582
Unique ID: _Znp.l8e1h6x1ij7
SysFS ID: /devices/pci0000:00/0000:00:02.0
SysFS BusID: 0000:00:02.0
Hardware Class: graphics card
Model: "AOPEN 915 G"
Vendor: pci 0x8086 "Intel Corporation"
Device: pci 0x2582 "915 G"
SubVendor: pci 0xa0a0 "AOPEN Inc."
SubDevice: pci 0x2582
Revision: 0x04
Memory Range: 0xd0200000-0xd027ffff (rw,non-prefetchable)
I/O Ports: 0xe000-0xe007 (rw)
Memory Range: 0xc0000000-0xcfffffff (rw,prefetchable)
Memory Range: 0xd0280000-0xd02bffff (rw,non-prefetchable)
IRQ: 16 (2288433 events)
I/O Ports: 0x3c0-0x3df (rw)
Module Alias: "pci:v00008086d00002582sv0000A0A0sd00002582bc03sc00i00"
Driver Info #0:
XFree86 v4 Server Module: i810
Driver Info #1:
XFree86 v4 Server Module: i810
3D Support: yes
Extensions: dri
Config Status: cfg=new, avail=yes, need=no, active=unknown

12: PCI 1b.0: 0403 Audio device
[Created at pci.281]
UDI: /org/freedesktop/Hal/devices/pci_8086_2668
Unique ID: u1Nb.0bikjj3j6B9
SysFS ID: /devices/pci0000:00/0000:00:1b.0
SysFS BusID: 0000:00:1b.0
Hardware Class: sound
Model: "AOPEN 82801FB/FBM/FR/FW/FRW (ICH6 Family) High Definition Audio Controller"
Vendor: pci 0x8086 "Intel Corporation"
Device: pci 0x2668 "82801FB/FBM/FR/FW/FRW (ICH6 Family) High Definition Audio Controller"
SubVendor: pci 0xa0a0 "AOPEN Inc."
SubDevice: pci 0x0501
Revision: 0x03
Driver: "HDA Intel"
Driver Modules: "snd_hda_intel"
Memory Range: 0xd02c0000-0xd02c3fff (rw,non-prefetchable)
IRQ: 16 (2288433 events)
Module Alias: "pci:v00008086d00002668sv0000A0A0sd00000501bc04sc03i00"
Driver Info #0:
Driver Status: snd_hda_intel is active
Driver Activation Cmd: "modprobe snd_hda_intel"
Config Status: cfg=new, avail=yes, need=no, active=unknown

13: PCI 1c.0: 0604 PCI bridge (Normal decode)
[Created at pci.281]
UDI: /org/freedesktop/Hal/devices/pci_8086_2660
Unique ID: z8Q3.hdHR1LU2D6A
SysFS ID: /devices/pci0000:00/0000:00:1c.0
SysFS BusID: 0000:00:1c.0
Hardware Class: bridge
Model: "Intel 82801FB/FBM/FR/FW/FRW (ICH6 Family) PCI Express Port 1"
Vendor: pci 0x8086 "Intel Corporation"
Device: pci 0x2660 "82801FB/FBM/FR/FW/FRW (ICH6 Family) PCI Express Port 1"
Revision: 0x03
Driver: "pcieport-driver"
IRQ: 16 (2288433 events)
Module Alias: "pci:v00008086d00002660sv00000000sd00000000bc06sc04i00"
Driver Info #0:
Driver Status: shpchp is active
Driver Activation Cmd: "modprobe shpchp"
Config Status: cfg=new, avail=yes, need=no, active=unknown

14: PCI 1c.2: 0604 PCI bridge (Normal decode)
[Created at pci.281]
UDI: /org/freedesktop/Hal/devices/pci_8086_2664
Unique ID: hoOk.lH3RycysJeB
SysFS ID: /devices/pci0000:00/0000:00:1c.2
SysFS BusID: 0000:00:1c.2
Hardware Class: bridge
Model: "Intel 82801FB/FBM/FR/FW/FRW (ICH6 Family) PCI Express Port 3"
Vendor: pci 0x8086 "Intel Corporation"
Device: pci 0x2664 "82801FB/FBM/FR/FW/FRW (ICH6 Family) PCI Express Port 3"
Revision: 0x03
Driver: "pcieport-driver"
IRQ: 17 (98284743 events)
Module Alias: "pci:v00008086d00002664sv00000000sd00000000bc06sc04i00"
Driver Info #0:
Driver Status: shpchp is active
Driver Activation Cmd: "modprobe shpchp"
Config Status: cfg=new, avail=yes, need=no, active=unknown

15: PCI 1d.0: 0c03 USB Controller (UHCI)
[Created at pci.281]
UDI: /org/freedesktop/Hal/devices/pci_8086_2658
Unique ID: 1GTX.uaeGlAs3Rs1
SysFS ID: /devices/pci0000:00/0000:00:1d.0
SysFS BusID: 0000:00:1d.0
Hardware Class: usb controller
Model: "AOPEN 82801FB/FBM/FR/FW/FRW (ICH6 Family) USB UHCI #1"
Vendor: pci 0x8086 "Intel Corporation"
Device: pci 0x2658 "82801FB/FBM/FR/FW/FRW (ICH6 Family) USB UHCI #1"
SubVendor: pci 0xa0a0 "AOPEN Inc."
SubDevice: pci 0x2658
Revision: 0x03
Driver: "uhci_hcd"
Driver Modules: "uhci_hcd"
I/O Ports: 0xe100-0xe11f (rw)
IRQ: 18 (2 events)
Module Alias: "pci:v00008086d00002658sv0000A0A0sd00002658bc0Csc03i00"
Driver Info #0:
Driver Status: uhci-hcd is active
Driver Activation Cmd: "modprobe uhci-hcd"
Config Status: cfg=new, avail=yes, need=no, active=unknown

16: PCI 1d.1: 0c03 USB Controller (UHCI)
[Created at pci.281]
UDI: /org/freedesktop/Hal/devices/pci_8086_2659
Unique ID: vayM.wcASKayyqr5
SysFS ID: /devices/pci0000:00/0000:00:1d.1
SysFS BusID: 0000:00:1d.1
Hardware Class: usb controller
Model: "AOPEN 82801FB/FBM/FR/FW/FRW (ICH6 Family) USB UHCI #2"
Vendor: pci 0x8086 "Intel Corporation"
Device: pci 0x2659 "82801FB/FBM/FR/FW/FRW (ICH6 Family) USB UHCI #2"
SubVendor: pci 0xa0a0 "AOPEN Inc."
SubDevice: pci 0x2659
Revision: 0x03
Driver: "uhci_hcd"
Driver Modules: "uhci_hcd"
I/O Ports: 0xe200-0xe21f (rw)
IRQ: 19 (2920 events)
Module Alias: "pci:v00008086d00002659sv0000A0A0sd00002659bc0Csc03i00"
Driver Info #0:
Driver Status: uhci-hcd is active
Driver Activation Cmd: "modprobe uhci-hcd"
Config Status: cfg=new, avail=yes, need=no, active=unknown

17: PCI 1d.2: 0c03 USB Controller (UHCI)
[Created at pci.281]
UDI: /org/freedesktop/Hal/devices/pci_8086_265a
Unique ID: mvRC.yeidvz2sEr9
SysFS ID: /devices/pci0000:00/0000:00:1d.2
SysFS BusID: 0000:00:1d.2
Hardware Class: usb controller
Model: "AOPEN 82801FB/FBM/FR/FW/FRW (ICH6 Family) USB UHCI #3"
Vendor: pci 0x8086 "Intel Corporation"
Device: pci 0x265a "82801FB/FBM/FR/FW/FRW (ICH6 Family) USB UHCI #3"
SubVendor: pci 0xa0a0 "AOPEN Inc."
SubDevice: pci 0x265a
Revision: 0x03
Driver: "uhci_hcd"
Driver Modules: "uhci_hcd"
I/O Ports: 0xe300-0xe31f (rw)
IRQ: 17 (98284743 events)
Module Alias: "pci:v00008086d0000265Asv0000A0A0sd0000265Abc0Csc03i00"
Driver Info #0:
Driver Status: uhci-hcd is active
Driver Activation Cmd: "modprobe uhci-hcd"
Config Status: cfg=new, avail=yes, need=no, active=unknown

18: PCI 1d.3: 0c03 USB Controller (UHCI)
[Created at pci.281]
UDI: /org/freedesktop/Hal/devices/pci_8086_265b
Unique ID: eEx1._gEpUN9leqD
SysFS ID: /devices/pci0000:00/0000:00:1d.3
SysFS BusID: 0000:00:1d.3
Hardware Class: usb controller
Model: "AOPEN 82801FB/FBM/FR/FW/FRW (ICH6 Family) USB UHCI #4"
Vendor: pci 0x8086 "Intel Corporation"
Device: pci 0x265b "82801FB/FBM/FR/FW/FRW (ICH6 Family) USB UHCI #4"
SubVendor: pci 0xa0a0 "AOPEN Inc."
SubDevice: pci 0x265b
Revision: 0x03
Driver: "uhci_hcd"
Driver Modules: "uhci_hcd"
I/O Ports: 0xe400-0xe41f (rw)
IRQ: 16 (2288433 events)
Module Alias: "pci:v00008086d0000265Bsv0000A0A0sd0000265Bbc0Csc03i00"
Driver Info #0:
Driver Status: uhci-hcd is active
Driver Activation Cmd: "modprobe uhci-hcd"
Config Status: cfg=new, avail=yes, need=no, active=unknown

19: PCI 1d.7: 0c03 USB Controller (EHCI)
[Created at pci.281]
UDI: /org/freedesktop/Hal/devices/pci_8086_265c
Unique ID: 5YuN.WjMAMrkOaf6
SysFS ID: /devices/pci0000:00/0000:00:1d.7
SysFS BusID: 0000:00:1d.7
Hardware Class: usb controller
Model: "AOPEN 82801FB/FBM/FR/FW/FRW (ICH6 Family) USB2 EHCI Controller"
Vendor: pci 0x8086 "Intel Corporation"
Device: pci 0x265c "82801FB/FBM/FR/FW/FRW (ICH6 Family) USB2 EHCI Controller"
SubVendor: pci 0xa0a0 "AOPEN Inc."
SubDevice: pci 0x265c
Revision: 0x03
Driver: "ehci_hcd"
Driver Modules: "ehci_hcd"
Memory Range: 0xd02c4000-0xd02c43ff (rw,non-prefetchable)
IRQ: 18 (2 events)
Module Alias: "pci:v00008086d0000265Csv0000A0A0sd0000265Cbc0Csc03i20"
Driver Info #0:
Driver Status: ehci-hcd is active
Driver Activation Cmd: "modprobe ehci-hcd"
Config Status: cfg=new, avail=yes, need=no, active=unknown

20: PCI 1e.0: 0604 PCI bridge (Subtractive decode)
[Created at pci.281]
UDI: /org/freedesktop/Hal/devices/pci_8086_244e
Unique ID: 6NW+.OG+Sv+NxnRB
SysFS ID: /devices/pci0000:00/0000:00:1e.0
SysFS BusID: 0000:00:1e.0
Hardware Class: bridge
Model: "Intel 82801 PCI Bridge"
Vendor: pci 0x8086 "Intel Corporation"
Device: pci 0x244e "82801 PCI Bridge"
Revision: 0xd3
Module Alias: "pci:v00008086d0000244Esv00000000sd00000000bc06sc04i01"
Config Status: cfg=new, avail=yes, need=no, active=unknown

21: PCI 1f.0: 0601 ISA bridge
[Created at pci.281]
UDI: /org/freedesktop/Hal/devices/pci_8086_2640
Unique ID: BUZT.6_G49xIFaR2
SysFS ID: /devices/pci0000:00/0000:00:1f.0
SysFS BusID: 0000:00:1f.0
Hardware Class: bridge
Model: "Intel 82801FB/FR (ICH6/ICH6R) LPC Interface Bridge"
Vendor: pci 0x8086 "Intel Corporation"
Device: pci 0x2640 "82801FB/FR (ICH6/ICH6R) LPC Interface Bridge"
SubVendor: pci 0x8086 "Intel Corporation"
SubDevice: pci 0x2640
Revision: 0x03
Module Alias: "pci:v00008086d00002640sv00008086sd00002640bc06sc01i00"
Driver Info #0:
Driver Status: iTCO_wdt is active
Driver Activation Cmd: "modprobe iTCO_wdt"
Driver Info #1:
Driver Status: intel_rng is not active
Driver Activation Cmd: "modprobe intel_rng"
Config Status: cfg=new, avail=yes, need=no, active=unknown

22: PCI 1f.2: 0101 IDE interface
[Created at pci.281]
UDI: /org/freedesktop/Hal/devices/pci_8086_2651
Unique ID: w7Y8.TeJFeCN8ADA
SysFS ID: /devices/pci0000:00/0000:00:1f.2
SysFS BusID: 0000:00:1f.2
Hardware Class: storage
Model: "AOPEN 82801FB/FW (ICH6/ICH6W) SATA Controller"
Vendor: pci 0x8086 "Intel Corporation"
Device: pci 0x2651 "82801FB/FW (ICH6/ICH6W) SATA Controller"
SubVendor: pci 0xa0a0 "AOPEN Inc."
SubDevice: pci 0x2651
Revision: 0x03
Driver: "ata_piix"
Driver Modules: "ata_piix"
I/O Ports: 0x1f0-0x1f7 (rw)
I/O Port: 0x3f6 (rw)
I/O Ports: 0x170-0x177 (rw)
I/O Port: 0x376 (rw)
I/O Ports: 0xf000-0xf00f (rw)
IRQ: 19 (2920 events)
Module Alias: "pci:v00008086d00002651sv0000A0A0sd00002651bc01sc01i80"
Driver Info #0:
Driver Status: ata_piix is active
Driver Activation Cmd: "modprobe ata_piix"
Driver Info #1:
Driver Status: ata_generic is active
Driver Activation Cmd: "modprobe ata_generic"
Driver Info #2:
Driver Status: generic is active
Driver Activation Cmd: "modprobe generic"
Config Status: cfg=new, avail=yes, need=no, active=unknown

23: PCI 1f.3: 0c05 SMBus
[Created at pci.281]
UDI: /org/freedesktop/Hal/devices/pci_8086_266a
Unique ID: nS1_.Ua5xjwfE7x7
SysFS ID: /devices/pci0000:00/0000:00:1f.3
SysFS BusID: 0000:00:1f.3
Hardware Class: unknown
Model: "AOPEN 82801FB/FBM/FR/FW/FRW (ICH6 Family) SMBus Controller"
Vendor: pci 0x8086 "Intel Corporation"
Device: pci 0x266a "82801FB/FBM/FR/FW/FRW (ICH6 Family) SMBus Controller"
SubVendor: pci 0xa0a0 "AOPEN Inc."
SubDevice: pci 0x266a
Revision: 0x03
I/O Ports: 0x5000-0x501f (rw)
IRQ: 11 (no events)
Module Alias: "pci:v00008086d0000266Asv0000A0A0sd0000266Abc0Csc05i00"
Driver Info #0:
Driver Status: i2c_i801 is not active
Driver Activation Cmd: "modprobe i2c_i801"
Config Status: cfg=new, avail=yes, need=no, active=unknown

24: PCI 100.0: 0200 Ethernet controller
[Created at pci.281]
UDI: /org/freedesktop/Hal/devices/pci_11ab_4362
Unique ID: JNkJ.lf+6nAPgie6
Parent ID: z8Q3.hdHR1LU2D6A
SysFS ID: /devices/pci0000:00/0000:00:1c.0/0000:01:00.0
SysFS BusID: 0000:01:00.0
Hardware Class: network
Model: "AOPEN Marvell 88E8053 Gigabit Ethernet Controller (Aopen)"
Vendor: pci 0x11ab "Marvell Technology Group Ltd."
Device: pci 0x4362 "88E8053 PCI-E Gigabit Ethernet Controller"
SubVendor: pci 0xa0a0 "AOPEN Inc."
SubDevice: pci 0x0506 "Marvell 88E8053 Gigabit Ethernet Controller (Aopen)"
Revision: 0x15
Driver: "sky2"
Driver Modules: "sky2"
Device File: eth1
Memory Range: 0xd0020000-0xd0023fff (rw,non-prefetchable)
I/O Ports: 0xc000-0xcfff (rw)
Memory Range: 0x20000000-0x2001ffff (ro,prefetchable,disabled)
IRQ: 16 (2288433 events)
HW Address: 00:01:80:58:6d:8c
Module Alias: "pci:v000011ABd00004362sv0000A0A0sd00000506bc02sc00i00"
Driver Info #0:
Driver Status: sky2 is active
Driver Activation Cmd: "modprobe sky2"
Config Status: cfg=new, avail=yes, need=no, active=unknown
Attached to: #13 (PCI bridge)

25: PCI 200.0: 0200 Ethernet controller
[Created at pci.281]
UDI: /org/freedesktop/Hal/devices/pci_8086_10b9
Unique ID: rBUF.qdX+b0QYyl2
Parent ID: hoOk.lH3RycysJeB
SysFS ID: /devices/pci0000:00/0000:00:1c.2/0000:02:00.0
SysFS BusID: 0000:02:00.0
Hardware Class: network
Model: "Intel Ethernet controller"
Vendor: pci 0x8086 "Intel Corporation"
Device: pci 0x10b9
SubVendor: pci 0x8086 "Intel Corporation"
SubDevice: pci 0x1083
Revision: 0x06
Driver: "e1000"
Driver Modules: "e1000"
Device File: eth0
Memory Range: 0xd0100000-0xd011ffff (rw,non-prefetchable)
Memory Range: 0xd0120000-0xd013ffff (rw,non-prefetchable)
I/O Ports: 0xd000-0xdfff (rw)
Memory Range: 0x20100000-0x2011ffff (ro,prefetchable,disabled)
IRQ: 17 (98284743 events)
HW Address: 00:15:17:24:11:b5
Module Alias: "pci:v00008086d000010B9sv00008086sd00001083bc02sc00i00"
Driver Info #0:
Driver Status: e1000 is active
Driver Activation Cmd: "modprobe e1000"
Config Status: cfg=new, avail=yes, need=no, active=unknown
Attached to: #14 (PCI bridge)

HWINFO --DISK

stikko@selkos:~$ hwinfo --disk
18: IDE 00.0: 10600 Disk
[Created at block.218]
UDI: /org/freedesktop/Hal/devices/storage_serial_1ATA_HDS728080PLA380_PFDB32S6UVGE2N
Unique ID: mE25.Frmio6gee+8
Parent ID: w7Y8.TeJFeCN8ADA
SysFS ID: /block/sda
SysFS BusID: 0:0:0:0
SysFS Device Link: /devices/pci0000:00/0000:00:1f.2/host0/target0:0:0/0:0:0:0
Hardware Class: disk
Model: "HDS728080PLA380"
Device: "HDS728080PLA380"
Revision: "PF2O"
Driver: "ata_piix", "sd"
Driver Modules: "ata_piix"
Device File: /dev/sda
Device Files: /dev/sda, /dev/disk/by-id/scsi-1ATA_HDS728080PLA380_PFDB32S6UVGE2N, /dev/disk/by-path/pci-0000:00:1f.2-scsi-0:0:0:0
Device Number: block 8:0-8:15
BIOS id: 0x80
Drive status: no medium
Config Status: cfg=new, avail=yes, need=no, active=unknown
Attached to: #14 (IDE interface)

19: IDE 01.0: 10600 Disk
[Created at block.218]
UDI: /org/freedesktop/Hal/devices/storage_serial_1ATA_WDC_WD2000JD_00HBB0_WD_WMAL81529694
Unique ID: DQI9.5AkcGv9EBD7
Parent ID: w7Y8.TeJFeCN8ADA
SysFS ID: /block/sdb
SysFS BusID: 0:0:1:0
SysFS Device Link: /devices/pci0000:00/0000:00:1f.2/host0/target0:0:1/0:0:1:0
Hardware Class: disk
Model: "WDC WD2000JD-00H"
Vendor: "WDC"
Device: "WD2000JD-00H"
Revision: "08.0"
Driver: "ata_piix", "sd"
Driver Modules: "ata_piix"
Device File: /dev/sdb
Device Files: /dev/sdb, /dev/disk/by-id/scsi-1ATA_WDC_WD2000JD-00HBB0_WD-WMAL81529694, /dev/disk/by-path/pci-0000:00:1f.2-scsi-0:0:1:0
Device Number: block 8:16-8:31
BIOS id: 0x81
Drive status: no medium
Config Status: cfg=new, avail=yes, need=no, active=unknown
Attached to: #14 (IDE interface)
stikko@selkos:~$

Del · 14. oktober 2007

OK, S-ATA rapporteres og settes opp greit, samt to S-ATA disker. Når det gjelder P-ATA så kommer ingen kontroller frem ved lspci, hvilket betyr at hovedkortet ikke rapporterer at det har noen P-ATA kontroller. Hvis du har Plug&Play Bios (og det tror jeg du har) så skal denne rapporteres uansett om det finnes driver eller ikke. Da ser jeg bare to løsninger, enten må du inn i Bios å aktivere denne kontrolleren der (ser du P-ATA diskene fra Bios?), eller så trenger du en ny kontroller for P-ATA diskene dine. Jeg tror muligens dette er brikkeksettet ditt (levert av AOpen):

http://www.intel.com/products/chipsets/910gl/index.htm

The Stig · 14. oktober 2007

Nå satt jeg tilbake til "enhanced mode", noe som gjør at jeg ser alle 4 diskene i BIOS. Men nå bruker den enooooooormt langt tid på å starte, dvs - har enda til gode å se at den klarer å boote.

Okai, edit: Ser ikke ut som den klarer, sitter å ser på en lang liste med masse feileldigner. Det som går igjen er I/0 error på device sda ... tydeligvis en disk

Endret 14. oktober 2007 av Stikko

Del · 14. oktober 2007

Du kan jo ta en google runde på hardwaren din, men jeg vil tro den er meget godt støttet (uten at jeg egentlig har sjekket), så her er det noe merkelig. Hvis diskene ikke engang synes i Bios så kan du ikke regne med at noe OS ser dem. Den skal naturligvis boote normalt. Hvis du vil vite hvor den stopper i boot prosessen, så kan du gjøre en liten endring i /boot/grub/menu.lst, finn linjen hvor det står noe slikt (og som korresponderer til kjernen du prøver å boote med):

kernel /boot/vmlinuz-2.6.20-15-386 root=/dev/sda1 ro quiet splash

og så fjerner du quiet splash slik at linjen ser ut omtrent slik:

kernel /boot/vmlinuz-2.6.20-15-386 root=/dev/sda1 ro

Det kan være verdt å prøve Gutsy dersom det rett og slett er buggy driver til IDE-kontrolleren, ellers kan du jo kjøre disk check på IDE diskene, kanskje det er noen feil på dem som gjør at det henger, eksempelvis koble ut en eller begge og se om problemet fortsatt er der.

The Stig · 14. oktober 2007

Og nok en oppdatering, hadde laget meg et litt tullete oppsett i bios i sta. Så nå gjenstår det å se om den klarer å starte når alt er korrekt i bios - nå sitter jeg å ser på Ubuntu logoen.

Okai, gode greier - den klarte å starte opp, skal kjøre gjennom kommandoene jeg fikk ovenfor, så for vi se hva resultatet blir ...

Endret 14. oktober 2007 av Stikko

The Stig · 14. oktober 2007

18: IDE 00.0: 10600 Disk
 [Created at block.218]
 UDI: /org/freedesktop/Hal/devices/storage_serial_1ATA_HDS728080PLA380_PFDB32S6UVGE2N
 Unique ID: mE25.Frmio6gee+8
 Parent ID: w7Y8.TeJFeCN8ADA
 SysFS ID: /block/sda
 SysFS BusID: 0:0:0:0
 SysFS Device Link: /devices/pci0000:00/0000:00:1f.2/host0/target0:0:0/0:0:0:0
 Hardware Class: disk
 Model: "HDS728080PLA380"
 Device: "HDS728080PLA380"
 Revision: "PF2O"
 Driver: "ata_piix", "sd"
 Driver Modules: "ata_piix"
 Device File: /dev/sda
 Device Files: /dev/sda, /dev/disk/by-id/scsi-1ATA_HDS728080PLA380_PFDB32S6UVGE2N, /dev/disk/by-path/pci-0000:00:1f.2-scsi-0:0:0:0
 Device Number: block 8:0-8:15
 BIOS id: 0x80
 Drive status: no medium
 Config Status: cfg=new, avail=yes, need=no, active=unknown
 Attached to: #14 (IDE interface)

19: IDE 01.0: 10600 Disk
 [Created at block.218]
 UDI: /org/freedesktop/Hal/devices/storage_serial_1ATA_WDC_WD2000JD_00HBB0_WD_WMAL81529694
 Unique ID: DQI9.5AkcGv9EBD7
 Parent ID: w7Y8.TeJFeCN8ADA
 SysFS ID: /block/sdb
 SysFS BusID: 0:0:1:0
 SysFS Device Link: /devices/pci0000:00/0000:00:1f.2/host0/target0:0:1/0:0:1:0
 Hardware Class: disk
 Model: "WDC WD2000JD-00H"
 Vendor: "WDC"
 Device: "WD2000JD-00H"
 Revision: "08.0"
 Driver: "ata_piix", "sd"
 Driver Modules: "ata_piix"
 Device File: /dev/sdb
 Device Files: /dev/sdb, /dev/disk/by-id/scsi-1ATA_WDC_WD2000JD-00HBB0_WD-WMAL81529694, /dev/disk/by-path/pci-0000:00:1f.2-scsi-0:0:1:0
 Device Number: block 8:16-8:31
 BIOS id: 0x81
 Drive status: no medium
 Config Status: cfg=new, avail=yes, need=no, active=unknown
 Attached to: #14 (IDE interface)

20: IDE 100.0: 10600 Disk
 [Created at block.218]
 UDI: /org/freedesktop/Hal/devices/storage_model_SAMSUNG_HD250KD
 Unique ID: gbYD.Fezwm_K2Q6E
 Parent ID: w7Y8.TeJFeCN8ADA
 SysFS ID: /block/sdc
 SysFS BusID: 1:0:0:0
 SysFS Device Link: /devices/pci0000:00/0000:00:1f.2/host1/target1:0:0/1:0:0:0
 Hardware Class: disk
 Model: "SAMSUNG HD250KD"
 Vendor: "SAMSUNG"
 Device: "HD250KD"
 Revision: "WJ10"
 Driver: "ata_piix", "sd"
 Driver Modules: "ata_piix"
 Device File: /dev/sdc
 Device Number: block 8:32-8:47
 BIOS id: 0x82
 Drive status: no medium
 Config Status: cfg=new, avail=yes, need=no, active=unknown
 Attached to: #14 (IDE interface)

Utifra min tolking finner den nå 3 disker, kan det stemme? Skal dobbelsjekke den ene disken fysisk, den har laget noe fryktelig stygge lyder i det siste - mye mulig den har tatt kveld.

Edit: Tok strømmen på diskene nå, ulyden var heldigvis bare en løs skrue. Kjørte en ny hwinfo --disk nå, nå fant den alle 4 diskene. Vil tippe den ene disken forsvant i kopieringen sist.

Men da kan vi vel konkludere med at PC-en finner diskene, både i bios og OS. Spørsmålet nå er vel hvordan jeg får de "montert" og klar til bruk?

Endret 14. oktober 2007 av Stikko

Del · 14. oktober 2007

Det stemmer, den rapporterer nå en Samsung disk (på 250GB?) som ikke var der tidligere, som nå er /dev/sdc, høres ut som om du er i ferd med å få til et bra oppsett nå.

Del · 15. oktober 2007

Men da kan vi vel konkludere med at PC-en finner diskene, både i bios og OS. Spørsmålet nå er vel hvordan jeg får de "montert" og klar til bruk?

https://www.diskusjon.no/index.php?session=...t&p=9696763

Logg inn

[løst] IDE-disker vises ikke (Ubuntu)

Anbefalte innlegg

The Stig

Lenke til kommentar

Videoannonse

Del

Lenke til kommentar

The Stig

Lenke til kommentar

Del

Lenke til kommentar

The Stig

Lenke til kommentar

Del

Lenke til kommentar

The Stig

Lenke til kommentar

The Stig

Lenke til kommentar

Del

Lenke til kommentar

Del

Lenke til kommentar

Opprett en konto eller logg inn for å kommentere

Opprett konto

Logg inn

Populær nå

Tinder er skadelig for menn. 1 2 3 4 253

Serieprat - Generell diskusjon om/rundt serier. Bruk spoilertags 1 2 3 4 1780

Hvem er aktive 0 medlemmer
