Intel 13 serie Raptor Lake

[Ola Norman]

Kan se ut som om Raptor Lake er mye lettere enn forventet å kjøle 👍



[Nizzen]

6 hours ago, Ola Norman said:

Kan se ut som om Raptor Lake er mye lettere enn forventet å kjøle 👍



Større die er alltid lettere å kjøle. Det ser man på både 11900k og x299 cpuene.



[bshagen]

Når begynner dette å nærme seg butikkhyllene mon tro,? (ikke får fulgt med noe særlig)  Ser jo spennende ut om det skalerer med høyere DRR5-hastigheter

[Cowboystrekk]

bshagen skrev (12 timer siden):

Når begynner dette å nærme seg butikkhyllene mon tro,? (ikke får fulgt med noe særlig)  Ser jo spennende ut om det skalerer med høyere DRR5-hastigheter

Skalerer nok mindre enn Alder lake pga større cache. Raptor lake '3D' med megacache hadde vært noe, da har vi nok gamingkongen

[Ola Norman]

Intel Core i9-13900K is reportedly 60% faster in 7-Zip decompression test than i9-12900K


Sitat

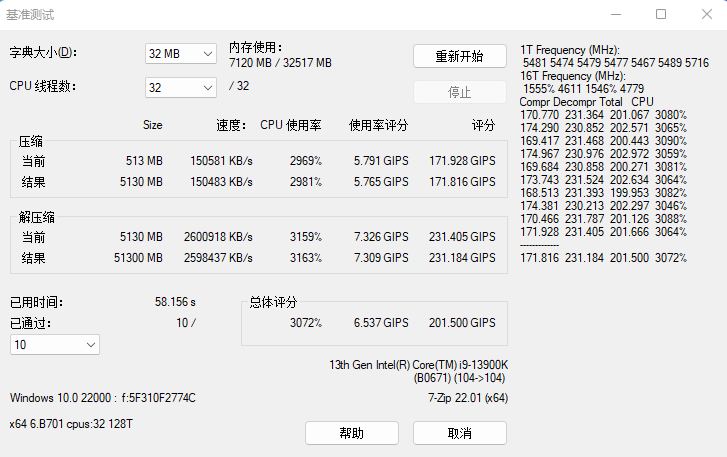

Raichu provided a screenshot showing the 7-Zip benchmark with compression and decompression ratings. The new processor is around 20% faster than 12900K in compression test, but also significantly faster in decompression. With a rating of 231 GIPS, it is 60% faster than 12900K’s 144 GIPS.

Both systems were using the same DDR5-6400CL32 memory, but there is no information on the motherboard used or memory capacity.



For sammenligning, gjør 13900k det mye bedre mot 5950x i denne benchmarken nå.. (post your 7-Zip v22.00 scores @ TPU forum)

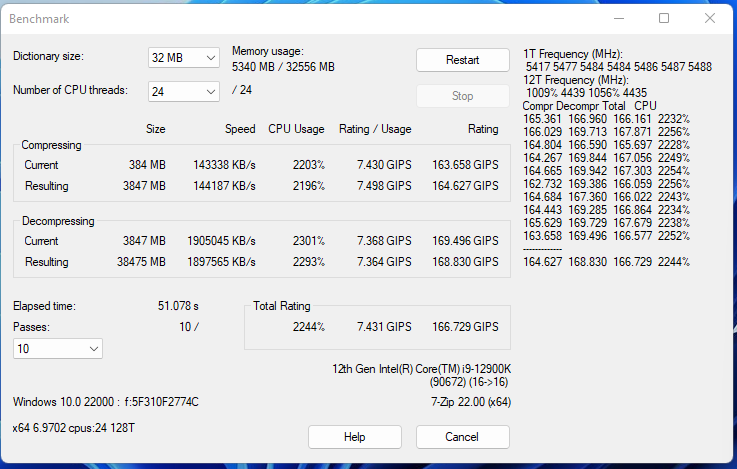

Overclocked 12900k @ 7000MT/s

13900k @ 6400MT/s

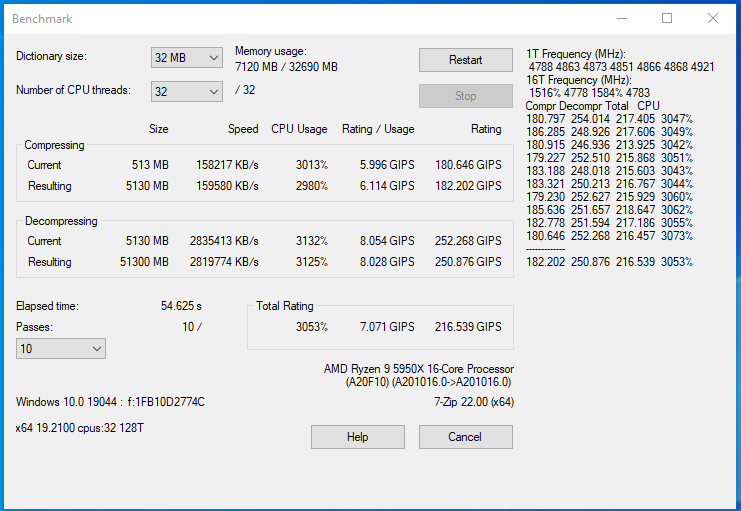

Min 5950x @ 1900:4466MT/s (compressing scaler veldig med båndbredde)



Endret 16. august 2022 av Ola Norman

[Ola Norman]

Lover godt for minneoverklokking

https://www.bilibili.com/video/BV1cd4y1Z7sY?zw

But that's not all, the Intel Raptor Lake CPUs are also shown to deliver some great memory support of up to 7400 Mbps on existing Z690 motherboards. The Core i9-13900K supported DDR5-7400 and the Core i7-13700K/Core i5-13600K offered good support for DDR5-7000 memory while DDR5-6800 is said to be the sweet spot. There's also Gear 1 support for DDR5 memory up to DDR4-4256-CL17. As for power consumption, the Intel Core i9-13900K consumed around 400W of power at over 1.5V while the Core i7-13700K consumed around 290W of power with a voltage of over 1.5V to achieve a similar 6.2 GHz P-Core overclock.



Endret 18. august 2022 av Ola Norman

[Cowboystrekk]

Ola Norman skrev (26 minutter siden):

Lover godt for minneoverklokking

https://www.bilibili.com/video/BV1cd4y1Z7sY?zw

But that's not all, the Intel Raptor Lake CPUs are also shown to deliver some great memory support of up to 7400 Mbps on existing Z690 motherboards. The Core i9-13900K supported DDR5-7400 and the Core i7-13700K/Core i5-13600K offered good support for DDR5-7000 memory while DDR5-6800 is said to be the sweet spot. There's also Gear 1 support for DDR5 memory up to DDR4-4256-CL17. As for power consumption, the Intel Core i9-13900K consumed around 400W of power at over 1.5V while the Core i7-13700K consumed around 290W of power with a voltage of over 1.5V to achieve a similar 6.2 GHz P-Core overclock.



Oi, gear 1 på DDR5, kult! Blir spennende å se hvordan det slår ut!

[Ola Norman]

Cowboystrekk skrev (3 minutter siden):

Oi, gear 1 på DDR5, kult! Blir spennende å se hvordan det slår ut!

Tipper det var en typo, mener sikkert gear1 ddr4 4256

[Cowboystrekk]

Ola Norman skrev (10 minutter siden):

Tipper det var en typo, mener sikkert gear1 ddr4 4256

Lov å håpe da! : D

[Ola Norman]

Intel 13th Gen Core “Raptor Lake-S” lineup leaks out, 4 to 24 cores and three different dies

Om jeg leser dette rett så er det kun 13900's alt over I5 som er ny Raptor Lake die, mens alt under er "bare" er rebrenda Alder Lake (?)

Sitat

It is revealed that there are three dies, and only the 13th Gen Core i9 series are to feature two clusters of Efficient cores. This is supposedly the only new die in the Raptor Lake series. There should be three SKUs based on this silicon: 13900K, 13900KF, 13900 and 13900F.

Sitat

The 13th Gen Core i5 series are to be further divided to K-series using new B0 silicon and non-K SKUs with C0 silicon, which according to HXL is a refresh of Alder Lake silicon (ADL-R). Mid-range and entry-level Raptor Lake are to offer 14, 10 or 4 cores. The slowest Raptor Lake CPU (Core i3-13100) is listed with four Performance cores and no Efficient cores available.



Endret 19. august 2022 av Ola Norman

[Ola Norman]

Interessant leak angående latency, kanskje @Nizzen ikke lengre trenger å skru av e-corene når han skal spille 😝

Neida Raptor Lake ser bedre og bedre ut, fixer endel drawbacks ifra Alder Lake

Enda litt mere:

A Preview of Raptor Lake’s Improved L2 Caches

Sitat

I ran some Champsim simulations with the different cache sizes, and expect IPC gains to be minor (simulations showed under 1% IPC improvement, though I feel the setup tends to underestimate gains). But focusing on IPC gains at fixed clock speed misses the larger picture. L2 misses decreased by 14.55% and 16.05% on the simulated P-Core and E-Core configurations, respectively. That means less data has to be pulled across the chip’s ring bus, saving power. High performance CPUs are often power limited, so using less power to move data around means that power could be spent hitting higher clocks. At higher clocks, Intel’s ring bus often doesn’t keep pace with core clock. Catching more accesses within L2 will minimize IPC loss as clock speed increases. And of course, there are bandwidth benefits to getting higher L2 hitrate. All of that comes together to give Raptor Lake some nice potential for performance and power efficiency increases, even if Intel doesn’t change the core architecture.



Endret 23. august 2022 av Ola Norman

[Ola Norman]

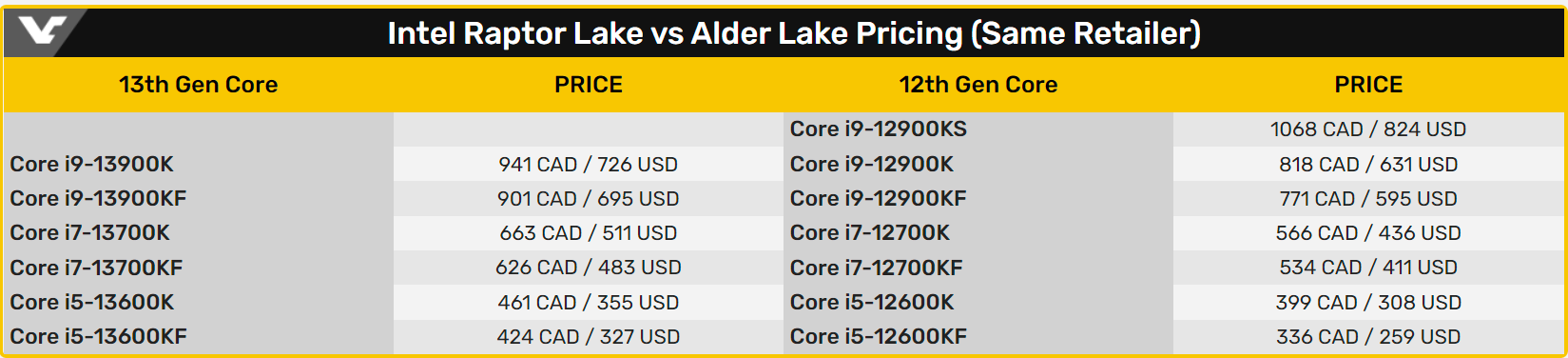

Intel 13th Gen Core “Raptor Lake” CPUS have been listed by Canadian retailer, i9-13900K for 726 USD

Sitat

The Core i9-13900K is listed for 941 CAD, which is around 726 USD. This is a higher price than i9-12900K from the same store who sell it for 631 USD. It is still cheaper than the KS-variant offering higher clocks (824 USD) though. Overall, the Core i9 series get a 95 to 100 USD price increase at this one retailer.

Sitat



Raptor Lake i7-series are listed for 511/483 USD, which is more expensive than Alder Lake models at 436/411 USD. That’s respectively an increase of 75 USD for 1x700K model and 72 USD for SKU without integrated graphics.

Finally, new Core i5 series are listed at 355/327 USD, which is again respectively higher than predecessors at 308/259 USD (an increase of 47-68 USD).





Endret 24. august 2022 av Ola Norman

[Ola Norman]

Ola Norman skrev (21 timer siden):

Intel 13th Gen Core “Raptor Lake” CPUS have been listed by Canadian retailer, i9-13900K for 726 USD

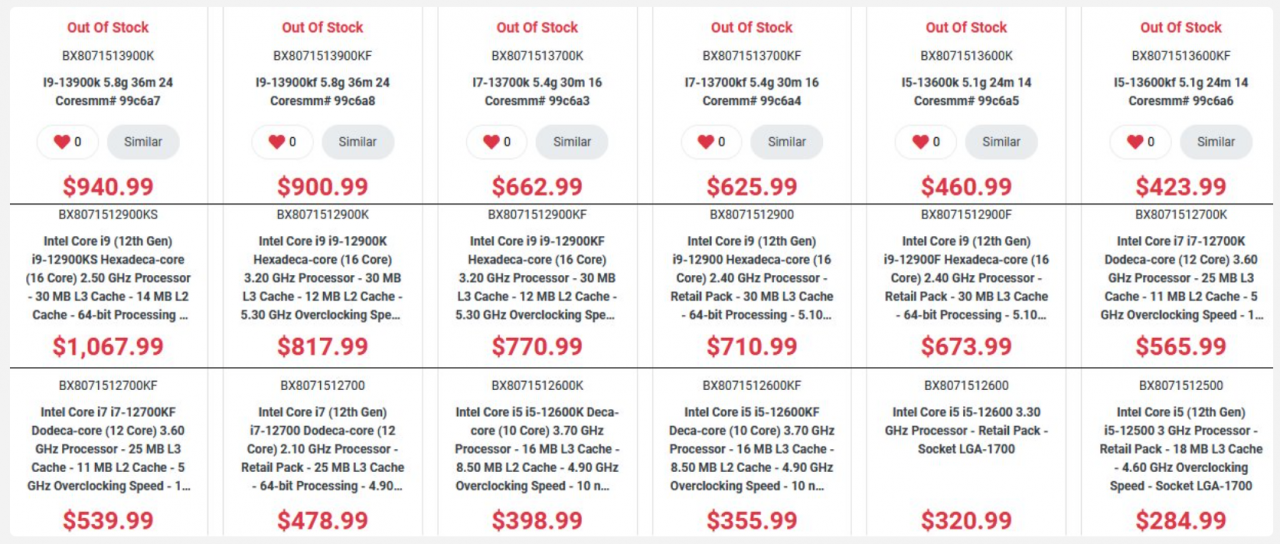

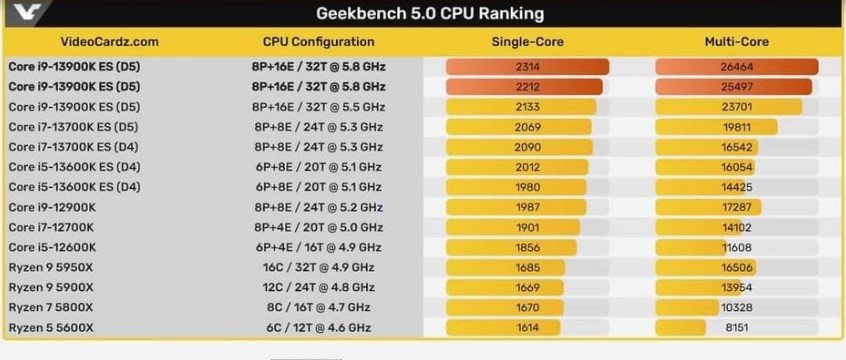

Var vist enda mer informasjon i denne leaken:

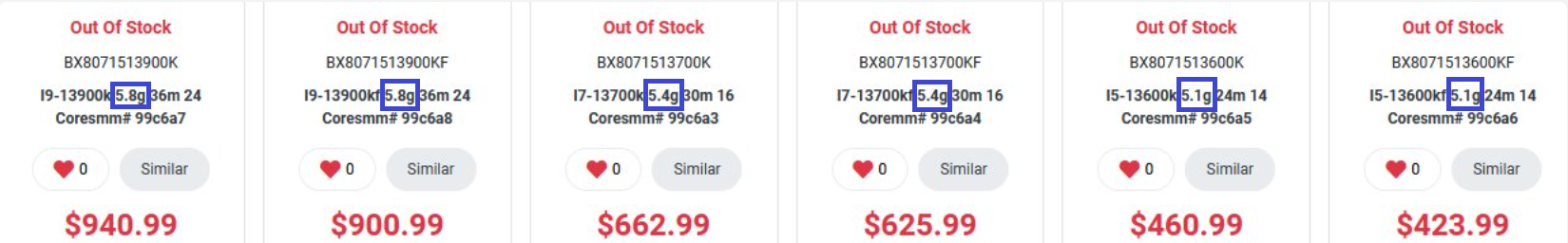

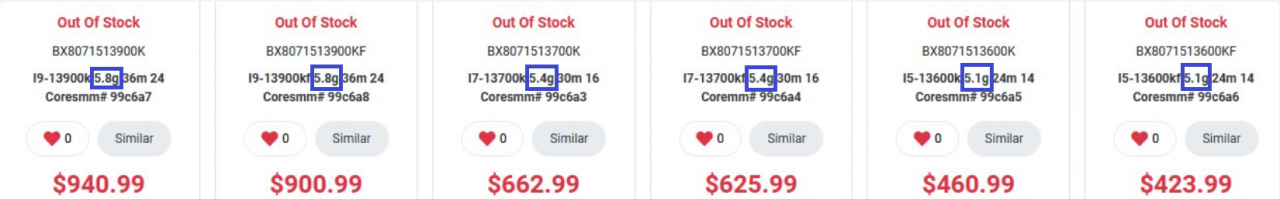

Kan se ut som om boost clocks dropper veldig fort for alt annet enn 13900k? Vet ikke hvor bra dette lover for low end market.. Ser jo ut som om AMD planlegger å konkurrere med færre (e-)kjerner og høyere klokkehastighet.

Endret 25. august 2022 av Ola Norman

[Nizzen]

Ikkje sjekka om det er bra eller dårlig
Edit:
 Sjekka med 5.3ghz 12900k og 6800mhz cl 32, noe som ikkje er veldig vanskelig. 2197 singlecore score i Geek 5.
Noe sier meg at den testen der er kjørt med treigt ddr5 xmp minne



Endret 25. august 2022 av Nizzen

[Nizzen]

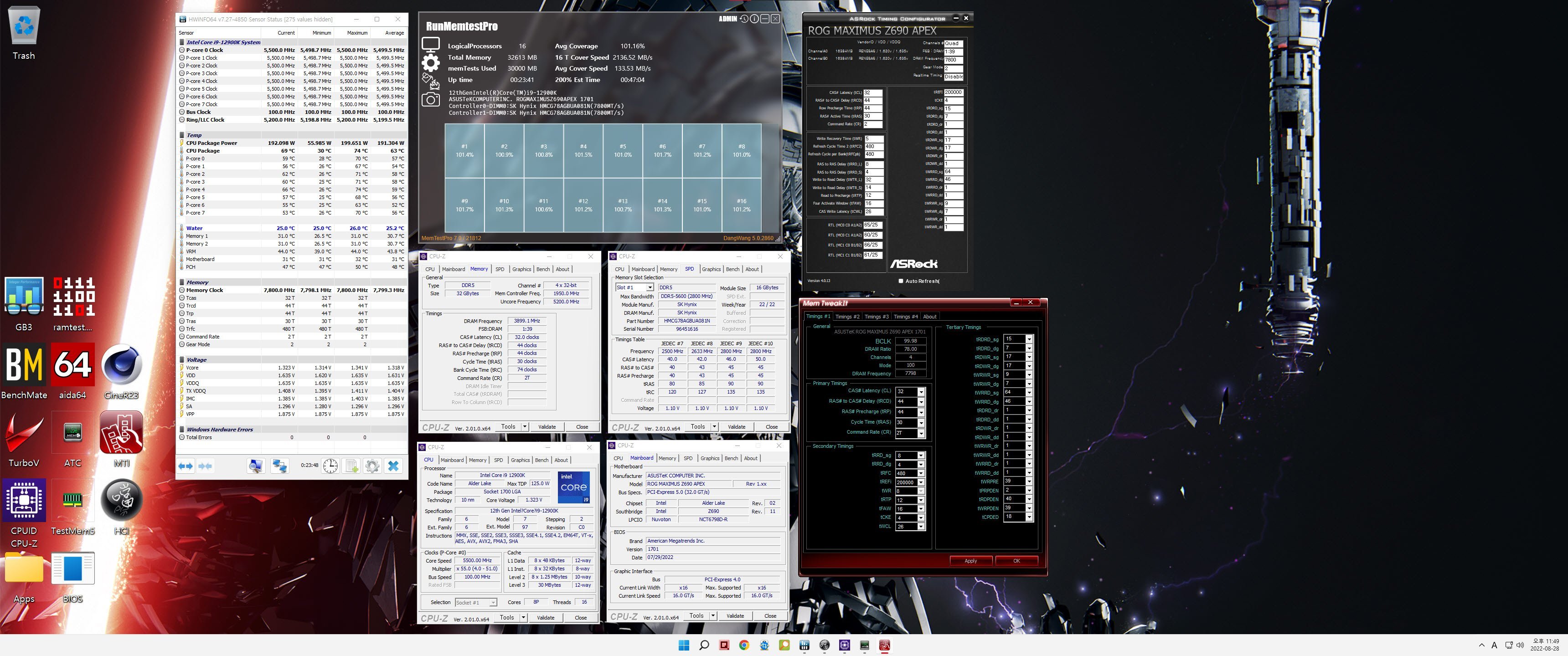

A-die Hynix dualrank har ganske bra ytelse
2x32GB
Bedre ytelse enn 7600c30 singlerank!



[Cowboystrekk]

Nizzen skrev (4 timer siden):

A-die Hynix dualrank har ganske bra ytelse
2x32GB
Bedre ytelse enn 7600c30 singlerank!



Hva er det Micron og Samsung holder på med? Hynix har nå både M og A-die ute for DDR5 som klokker soleklart best, altså 2 chipper som begge slår konkurrentene.

[Nizzen]

sugi0lover sitt første a-die kit:

Blir sikkert bedre resultat når han blir kjent med det

Endret 28. august 2022 av Nizzen

[Cowboystrekk]

Nizzen skrev (7 timer siden):

sugi0lover sitt første a-die kit:

Blir sikkert bedre resultat når han blir kjent med det

Ser ut som Hynix A/M på DDR5 oppfører seg litt som CJR/DJR på DDR4, må ha høy RCD og RP, nen har bra CL, ok RFC. Ser ut som Samsung DDR5 kan kjøre tightere RCD og RP, men hastighet er stusselig.

[Ola Norman]

Intel 13th Gen Raptor Lake CPUs & Z790 Platform To Be Announced on 27th September, Launch on 20th October

Sitat



Intel Raptor Lake-S Processors & Intel Z790 Chipset: Enthusiast Consumer K & KF CPUs Only

• Product Information Embargo Date: 27th September 2022 @ 9:20 am PT (Intel Innovation '22)
• Sales Embargo Date: 20th October 2022 @ 06:00 am PT

Intel Raptor Lake-S Processors Commercial & Entry Workstation

• Product Information Embargo Date: 19th February - 18th March 2023
• Sales Embargo Date: 19th February - 18th March 2023

Do note that AMD's Ryzen 7000 CPUs & AM5 platform will be hitting retail shelves the same day as Intel's announcement. As per the schedule, Intel will begin taking pre-orders for the Core i9-13900K (F) on the 27th of September while pre-orders for the Core i7-13700K (F) and Core i5-13600K (F) are going to open on the 13th of October. Currently, we don't have the embargo date but this means the blue team will have their next-gen parts launching almost a month after AMD's Zen 4 lands on the desktop PC platforms.





Endret 30. august 2022 av Ola Norman

[Ola Norman]

Litt stock tall og uten chiller 😝

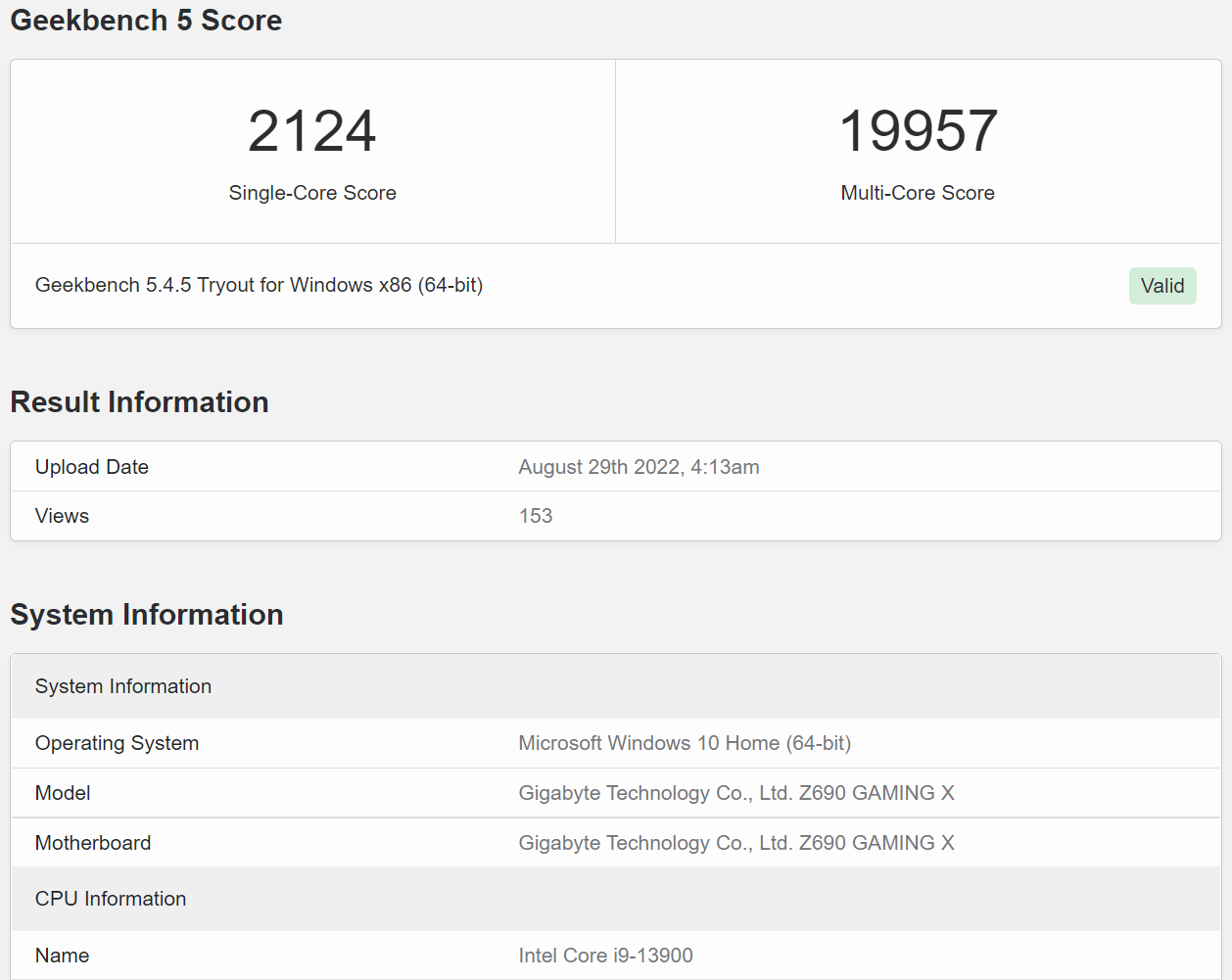

Intel Core i9-13900:

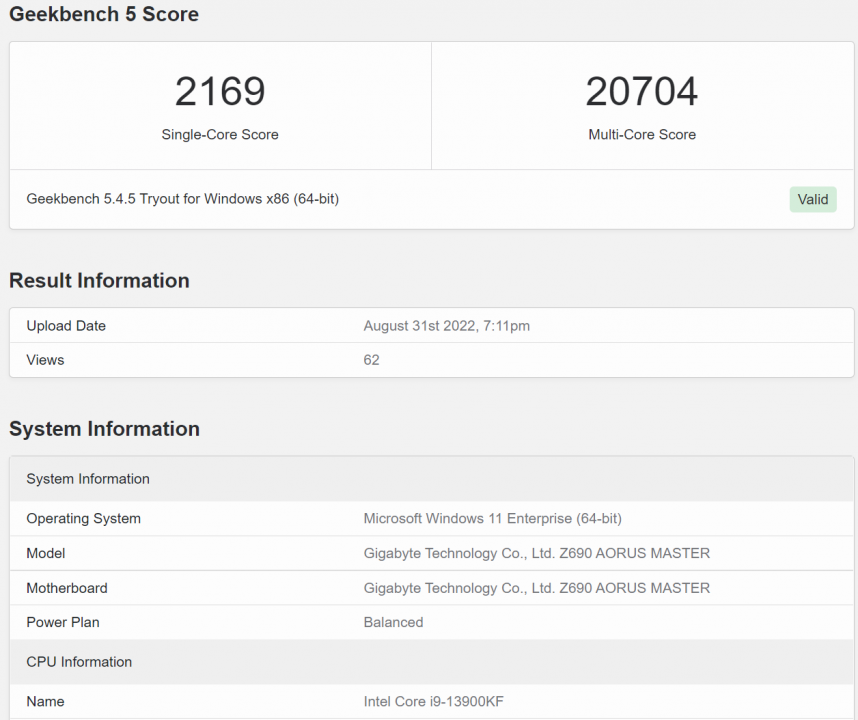

Intel Core i9-13900KF

Endret 1. september 2022 av Ola Norman
