Ingen skikkelig dualscreen med X.org eller Xinerama

Gavekort

Av Gavekort
i Operativsystemer

Anbefalte innlegg

Gavekort

Gavekort

Skrevet
Skrevet (endret)

Hei!

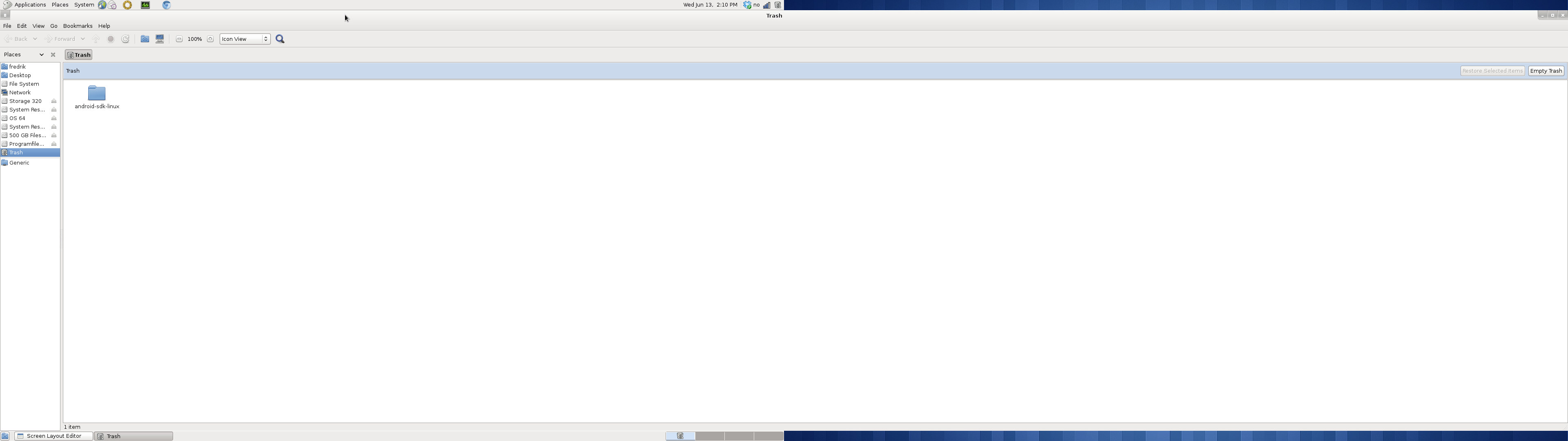

Jeg har litt problemer med å få til skikkelig dualscreen på mitt nye oppsett. Jeg får til dualscreen, men da må jeg velge mellom å ha to seperate skrivebord (kan ikke dra vinduer mellom skjermene og har to forskjellige Gnome-skrivebord) og et stort skrivebord (skrivebordet strekkes over begge skjermene og om jeg kjører noe i fullscreen så vil det dekke begge skjermene og ikke bare hovedskjermen).



Jeg har prøvd både RandR, Xinerama, AMD sitt CCC og ARandR, helt uten resultat.



Xorg.conf:

Section "ServerLayout"
Identifier	 "X.org Configured"
Screen	  0  "Screen0" 0 0
InputDevice	"Mouse0" "CorePointer"
InputDevice	"Keyboard0" "CoreKeyboard"
EndSection
Section "Files"
ModulePath   "/usr/lib64/xorg/modules"
FontPath	 "/usr/share/fonts/misc/"
FontPath	 "/usr/share/fonts/TTF/"
FontPath	 "/usr/share/fonts/OTF/"
FontPath	 "/usr/share/fonts/Type1/"
FontPath	 "/usr/share/fonts/100dpi/"
FontPath	 "/usr/share/fonts/75dpi/"
EndSection
Section "Module"
Load  "glx"
Load  "dri2"
Load  "extmod"
Load  "dbe"
Load  "dri"
Load  "record"
EndSection
Section "ServerFlags"
Option	 "Xinerama" "off"
EndSection
Section "InputDevice"
Identifier  "Keyboard0"
Driver	  "kbd"
EndSection
Section "InputDevice"
Identifier  "Mouse0"
Driver	  "mouse"
Option	 "Protocol" "auto"
Option	 "Device" "/dev/input/mice"
Option	 "ZAxisMapping" "4 5 6 7"
EndSection
Section "InputClass"
Identifier	  "keyboard-layout"
MatchIsKeyboard "yes"
Option	 "XkbLayout" "no, us, se"
Option	 "XkbOptions" "grp:caps_toggle"
EndSection
Section "Monitor"
Identifier   "Monitor0"
VendorName   "Monitor Vendor"
ModelName	"Monitor Model"
EndSection
Section "Monitor"
Identifier   "Monitor1"
VendorName   "Monitor Vendor"
ModelName	"Monitor Model"
EndSection
Section "Monitor"
Identifier   "Monitor2"
VendorName   "Monitor Vendor"
ModelName	"Monitor Model"
EndSection
Section "Monitor"
Identifier   "aticonfig-Monitor[0]-0"
Option	 "VendorName" "ATI Proprietary Driver"
Option	 "ModelName" "Generic Autodetecting Monitor"
Option	 "DPMS" "true"
EndSection
Section "Monitor"
Identifier   "0-DFP6"
Option	 "VendorName" "ATI Proprietary Driver"
Option	 "ModelName" "Generic Autodetecting Monitor"
Option	 "DPMS" "true"
Option	 "PreferredMode" "1920x1080"
Option	 "TargetRefresh" "60"
Option	 "Position" "0 0"
Option	 "Rotate" "normal"
Option	 "Disable" "false"
EndSection
Section "Monitor"
Identifier   "0-DFP7"
Option	 "VendorName" "ATI Proprietary Driver"
Option	 "ModelName" "Generic Autodetecting Monitor"
Option	 "DPMS" "true"
Option	 "PreferredMode" "1920x1080"
Option	 "TargetRefresh" "60"
Option	 "Position" "1920 0"
Option	 "Rotate" "normal"
Option	 "Disable" "false"
EndSection
Section "Device"
	### Available Driver options are:-
	### Values: &--#60;i&--#62;: integer, &--#60;f&--#62;: float, &--#60;bool&--#62;: "True"/"False",
	### &--#60;string&--#62;: "String", &--#60;freq&--#62;: "&--#60;f&--#62; Hz/kHz/MHz",
	### &--#60;percent&--#62;: "&--#60;f&--#62;%"
	### [arg]: arg optional
	#Option	 "NoAccel"			 # [&--#60;bool&--#62;]
	#Option	 "SWcursor"			# [&--#60;bool&--#62;]
	#Option	 "Dac6Bit"			 # [&--#60;bool&--#62;]
	#Option	 "Dac8Bit"			 # [&--#60;bool&--#62;]
	#Option	 "BusType"			 # [&--#60;str&--#62;]
	#Option	 "CPPIOMode"		   # [&--#60;bool&--#62;]
	#Option	 "CPusecTimeout"	   # &--#60;i&--#62;
	#Option	 "AGPMode"			 # &--#60;i&--#62;
	#Option	 "AGPFastWrite"		# [&--#60;bool&--#62;]
	#Option	 "AGPSize"			 # &--#60;i&--#62;
	#Option	 "GARTSize"			# &--#60;i&--#62;
	#Option	 "RingSize"			# &--#60;i&--#62;
	#Option	 "BufferSize"		  # &--#60;i&--#62;
	#Option	 "EnableDepthMoves"	# [&--#60;bool&--#62;]
	#Option	 "EnablePageFlip"	  # [&--#60;bool&--#62;]
	#Option	 "NoBackBuffer"		# [&--#60;bool&--#62;]
	#Option	 "DMAForXv"			# [&--#60;bool&--#62;]
	#Option	 "FBTexPercent"		# &--#60;i&--#62;
	#Option	 "DepthBits"		   # &--#60;i&--#62;
	#Option	 "PCIAPERSize"		 # &--#60;i&--#62;
	#Option	 "AccelDFS"			# [&--#60;bool&--#62;]
	#Option	 "IgnoreEDID"		  # [&--#60;bool&--#62;]
	#Option	 "CustomEDID"		  # [&--#60;str&--#62;]
	#Option	 "DisplayPriority"	 # [&--#60;str&--#62;]
	#Option	 "PanelSize"		   # [&--#60;str&--#62;]
	#Option	 "ForceMinDotClock"	# &--#60;freq&--#62;
	#Option	 "ColorTiling"		 # [&--#60;bool&--#62;]
	#Option	 "VideoKey"			# &--#60;i&--#62;
	#Option	 "RageTheatreCrystal"  # &--#60;i&--#62;
	#Option	 "RageTheatreTunerPort"  # &--#60;i&--#62;
	#Option	 "RageTheatreCompositePort"  # &--#60;i&--#62;
	#Option	 "RageTheatreSVideoPort"  # &--#60;i&--#62;
	#Option	 "TunerType"		   # &--#60;i&--#62;
	#Option	 "RageTheatreMicrocPath"  # &--#60;str&--#62;
	#Option	 "RageTheatreMicrocType"  # &--#60;str&--#62;
	#Option	 "ScalerWidth"		 # &--#60;i&--#62;
	#Option	 "RenderAccel"		 # [&--#60;bool&--#62;]
	#Option	 "SubPixelOrder"	   # [&--#60;str&--#62;]
	#Option	 "ClockGating"		 # [&--#60;bool&--#62;]
	#Option	 "VGAAccess"		   # [&--#60;bool&--#62;]
	#Option	 "ReverseDDC"		  # [&--#60;bool&--#62;]
	#Option	 "LVDSProbePLL"		# [&--#60;bool&--#62;]
	#Option	 "AccelMethod"		 # &--#60;str&--#62;
	#Option	 "DRI"				 # [&--#60;bool&--#62;]
	#Option	 "ConnectorTable"	  # &--#60;str&--#62;
	#Option	 "DefaultConnectorTable"  # [&--#60;bool&--#62;]
	#Option	 "DefaultTMDSPLL"	  # [&--#60;bool&--#62;]
	#Option	 "TVDACLoadDetect"	 # [&--#60;bool&--#62;]
	#Option	 "ForceTVOut"		  # [&--#60;bool&--#62;]
	#Option	 "TVStandard"		  # &--#60;str&--#62;
	#Option	 "IgnoreLidStatus"	 # [&--#60;bool&--#62;]
	#Option	 "DefaultTVDACAdj"	 # [&--#60;bool&--#62;]
	#Option	 "Int10"			   # [&--#60;bool&--#62;]
	#Option	 "EXAVSync"			# [&--#60;bool&--#62;]
	#Option	 "ATOMTVOut"		   # [&--#60;bool&--#62;]
	#Option	 "R4xxATOM"			# [&--#60;bool&--#62;]
	#Option	 "ForceLowPowerMode"   # [&--#60;bool&--#62;]
	#Option	 "DynamicPM"		   # [&--#60;bool&--#62;]
	#Option	 "NewPLL"			  # [&--#60;bool&--#62;]
	#Option	 "ZaphodHeads"		 # &--#60;str&--#62;
Identifier  "Card0"
Driver	  "fglrx"
Option	 "DesktopSetup" "horizontal"
Option	 "OverlayOnCRTC2" "1"
Option	 "Monitor-DFP6" "0-DFP6"
Option	 "Monitor-DFP7" "0-DFP7"
BusID	   "PCI:1:0:0"
EndSection
Section "Device"
	### Available Driver options are:-
	### Values: &--#60;i&--#62;: integer, &--#60;f&--#62;: float, &--#60;bool&--#62;: "True"/"False",
	### &--#60;string&--#62;: "String", &--#60;freq&--#62;: "&--#60;f&--#62; Hz/kHz/MHz",
	### &--#60;percent&--#62;: "&--#60;f&--#62;%"
	### [arg]: arg optional
	#Option	 "ShadowFB"			# [&--#60;bool&--#62;]
	#Option	 "Rotate"			  # &--#60;str&--#62;
	#Option	 "fbdev"			   # &--#60;str&--#62;
	#Option	 "debug"			   # [&--#60;bool&--#62;]
Identifier  "Card1"
Driver	  "fbdev"
BusID	   "PCI:1:0:0"
EndSection
Section "Device"
	### Available Driver options are:-
	### Values: &--#60;i&--#62;: integer, &--#60;f&--#62;: float, &--#60;bool&--#62;: "True"/"False",
	### &--#60;string&--#62;: "String", &--#60;freq&--#62;: "&--#60;f&--#62; Hz/kHz/MHz",
	### &--#60;percent&--#62;: "&--#60;f&--#62;%"
	### [arg]: arg optional
	#Option	 "ShadowFB"			# [&--#60;bool&--#62;]
	#Option	 "DefaultRefresh"	  # [&--#60;bool&--#62;]
	#Option	 "ModeSetClearScreen"  # [&--#60;bool&--#62;]
Identifier  "Card2"
Driver	  "vesa"
BusID	   "PCI:1:0:0"
EndSection
Section "Device"
Identifier  "aticonfig-Device[0]-0"
Driver	  "fglrx"
BusID	   "PCI:1:0:0"
EndSection
Section "Device"
Identifier  "amdcccle-Device[1]-1"
Driver	  "fglrx"
Option	 "Monitor-DFP7" "0-DFP7"
BusID	   "PCI:1:0:0"
Screen	  1
EndSection
Section "Screen"
Identifier "Screen0"
Device	 "Card0"
SubSection "Display"
 Viewport   0 0
 Virtual   3840 1920
 Depth	 1
EndSubSection
SubSection "Display"
 Viewport   0 0
 Virtual   3840 1920
 Depth	 4
EndSubSection
SubSection "Display"
 Viewport   0 0
 Virtual   3840 1920
 Depth	 8
EndSubSection
SubSection "Display"
 Viewport   0 0
 Virtual   3840 1920
 Depth	 15
EndSubSection
SubSection "Display"
 Viewport   0 0
 Virtual   3840 1920
 Depth	 16
EndSubSection
SubSection "Display"
 Viewport   0 0
 Virtual   3840 1920
 Depth	 24
EndSubSection
EndSection
Section "Screen"
Identifier "Screen1"
Device	 "Card0"
Monitor	"Monitor1"
SubSection "Display"
 Viewport   0 0
 Depth	 1
EndSubSection
SubSection "Display"
 Viewport   0 0
 Depth	 4
EndSubSection
SubSection "Display"
 Viewport   0 0
 Depth	 8
EndSubSection
SubSection "Display"
 Viewport   0 0
 Depth	 15
EndSubSection
SubSection "Display"
 Viewport   0 0
 Depth	 16
EndSubSection
SubSection "Display"
 Viewport   0 0
 Depth	 24
EndSubSection
EndSection
Section "Screen"
Identifier "Screen2"
Device	 "Card2"
Monitor	"Monitor2"
SubSection "Display"
 Viewport   0 0
 Depth	 1
EndSubSection
SubSection "Display"
 Viewport   0 0
 Depth	 4
EndSubSection
SubSection "Display"
 Viewport   0 0
 Depth	 8
EndSubSection
SubSection "Display"
 Viewport   0 0
 Depth	 15
EndSubSection
SubSection "Display"
 Viewport   0 0
 Depth	 16
EndSubSection
SubSection "Display"
 Viewport   0 0
 Depth	 24
EndSubSection
EndSection
Section "Screen"
Identifier "aticonfig-Screen[0]-0"
Device	 "aticonfig-Device[0]-0"
Monitor	"aticonfig-Monitor[0]-0"
DefaultDepth	 24
SubSection "Display"
 Viewport   0 0
 Depth	 24
EndSubSection
EndSection
Section "Screen"
Identifier "amdcccle-Screen[1]-1"
Device	 "amdcccle-Device[1]-1"
DefaultDepth	 24
SubSection "Display"
 Viewport   0 0
 Depth	 24
EndSubSection
EndSection


Endret av Gavekort
