Project: Abandon

[Gjest medlem-245286]

Project: Abandon

01.03.2011:

Got a old crappy case from a dude, unfortunately one of the side panel didn’t come with. I stripped it down and took out the electronic. Goint t post a video of my killing the MB with a nail gun This is going to be an air-cooled LAN pc with an epic look. I’m going to give it a rusty look with some new panels.

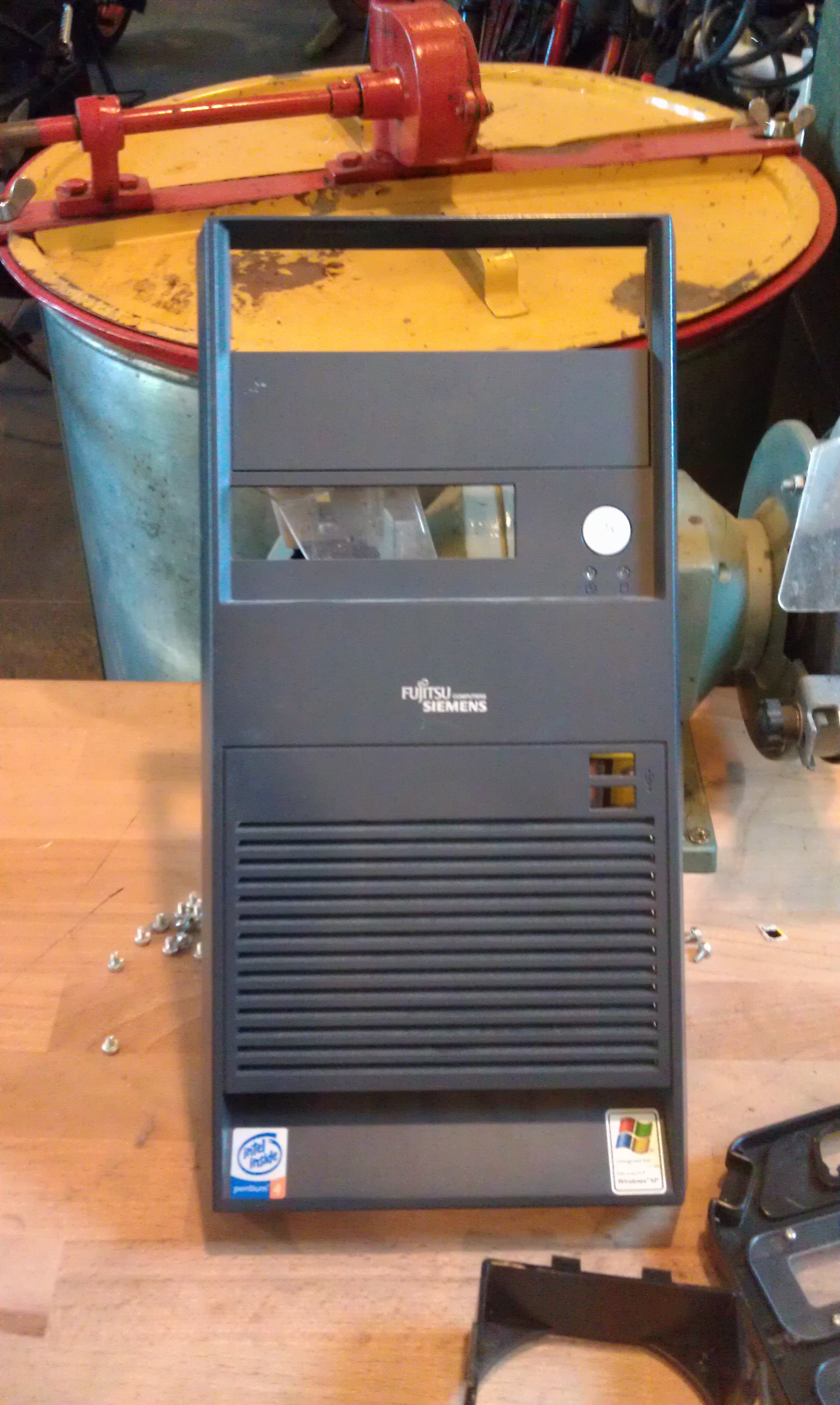

Ugly front panel ey?

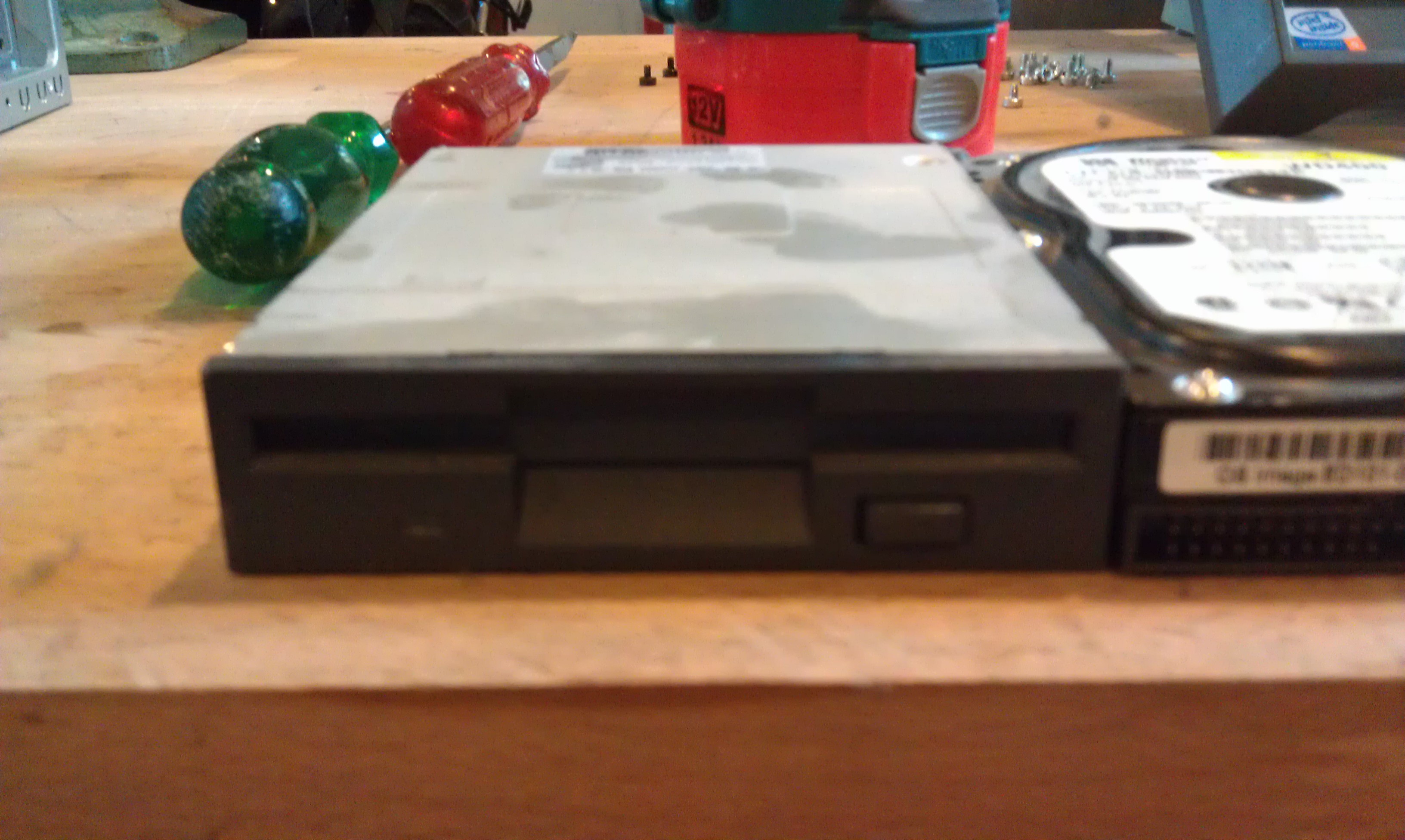

Floppy drive....Windows DOS with Zork?

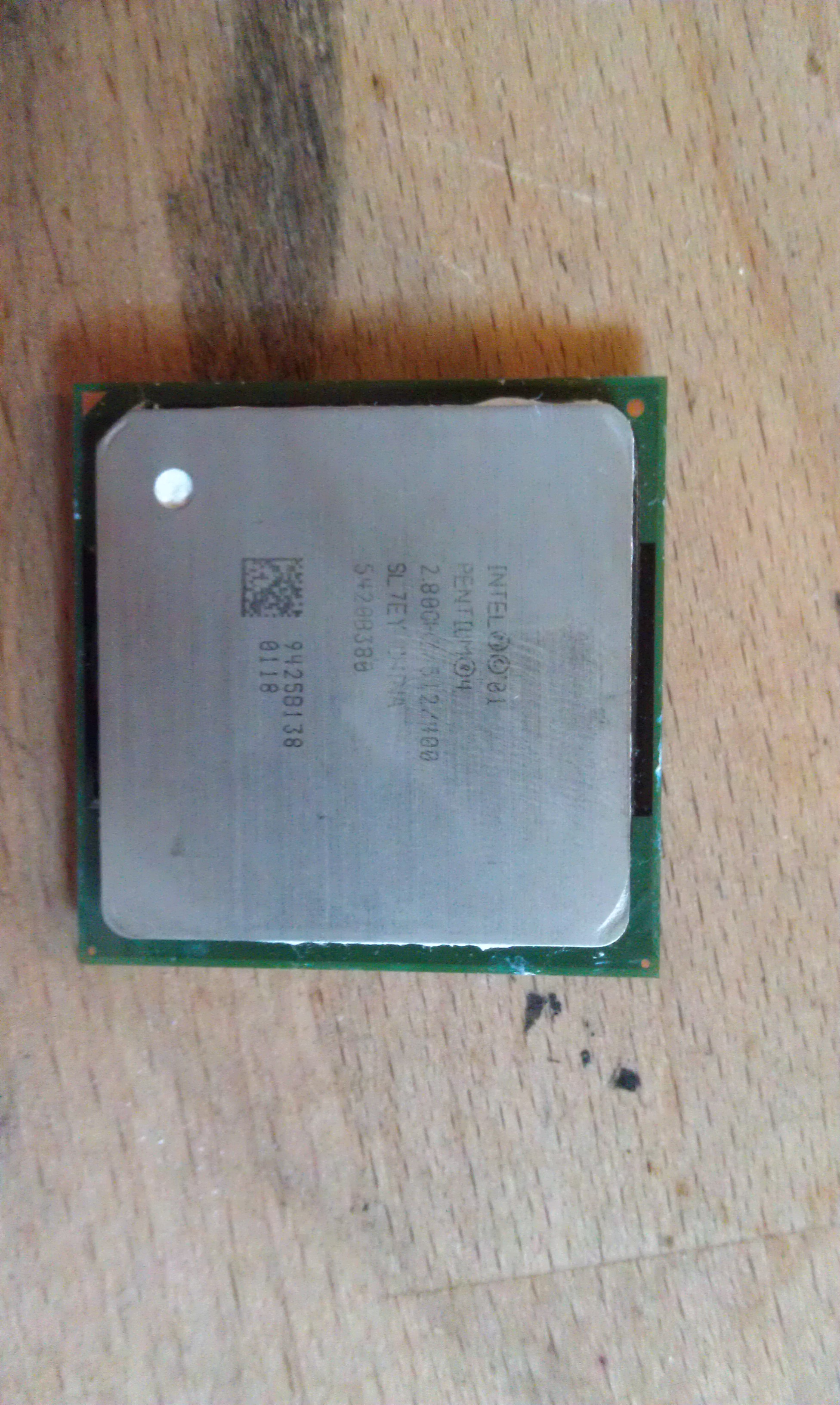

Intel Pentium 2,8GHz

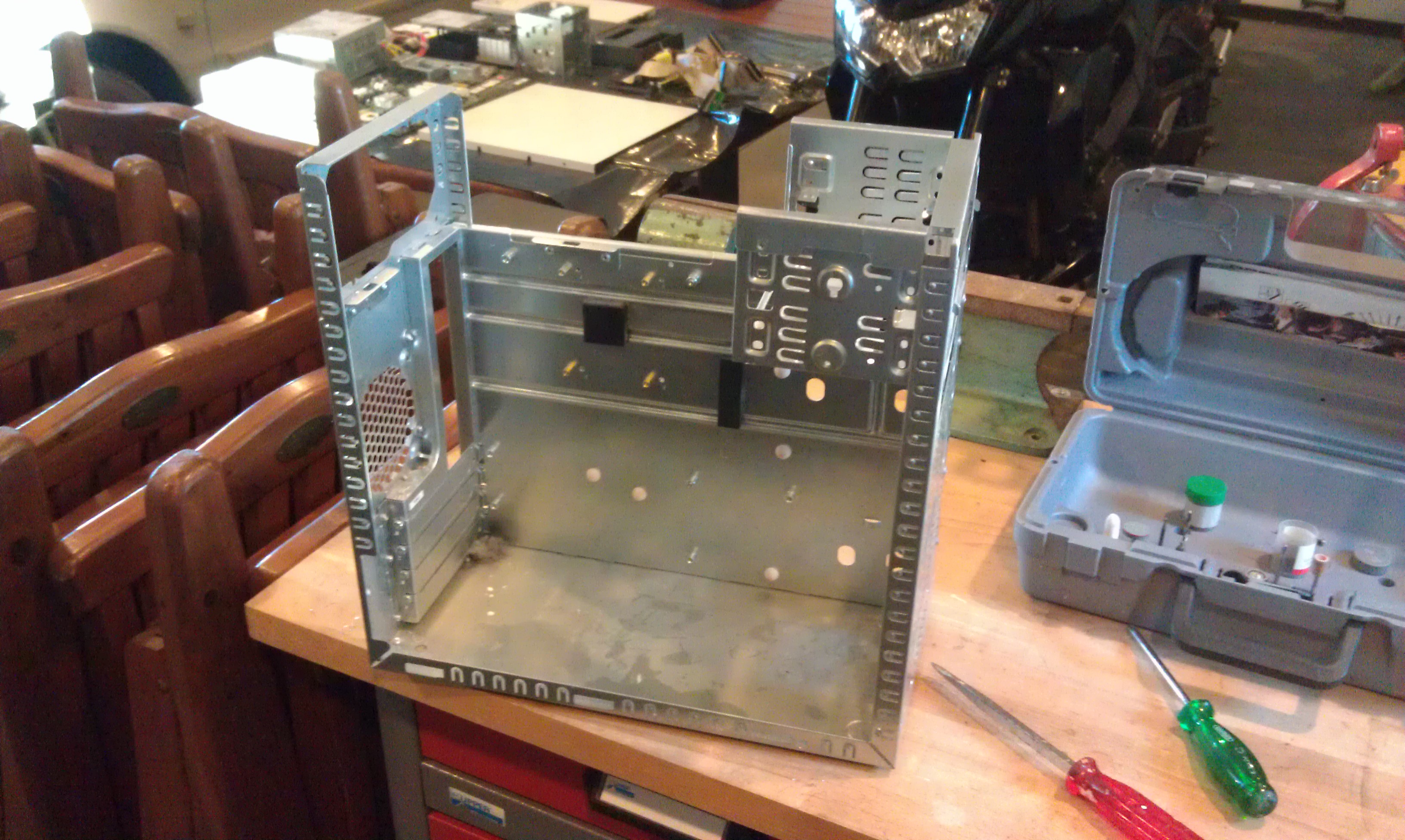

All stripped down

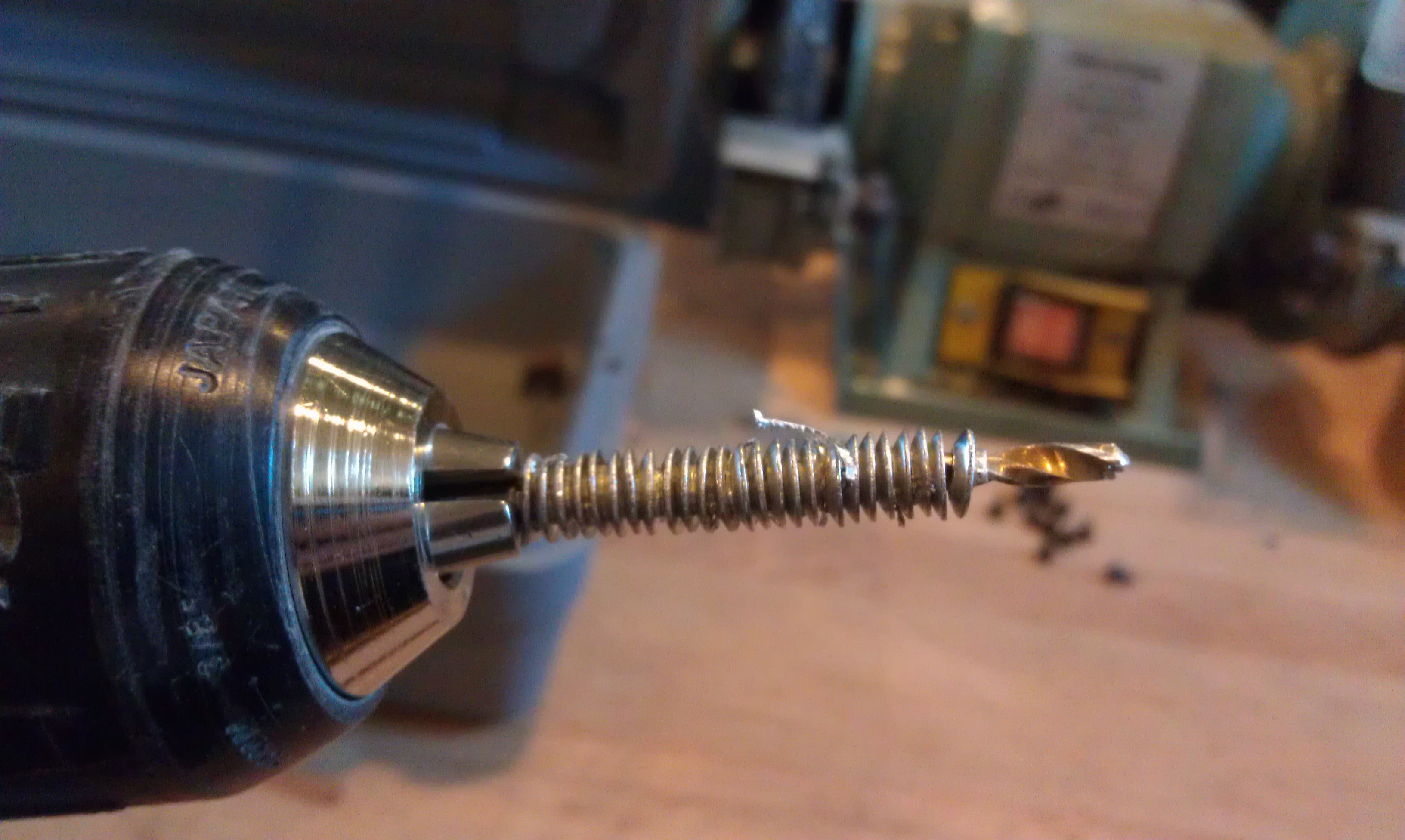

Drilling some rivets

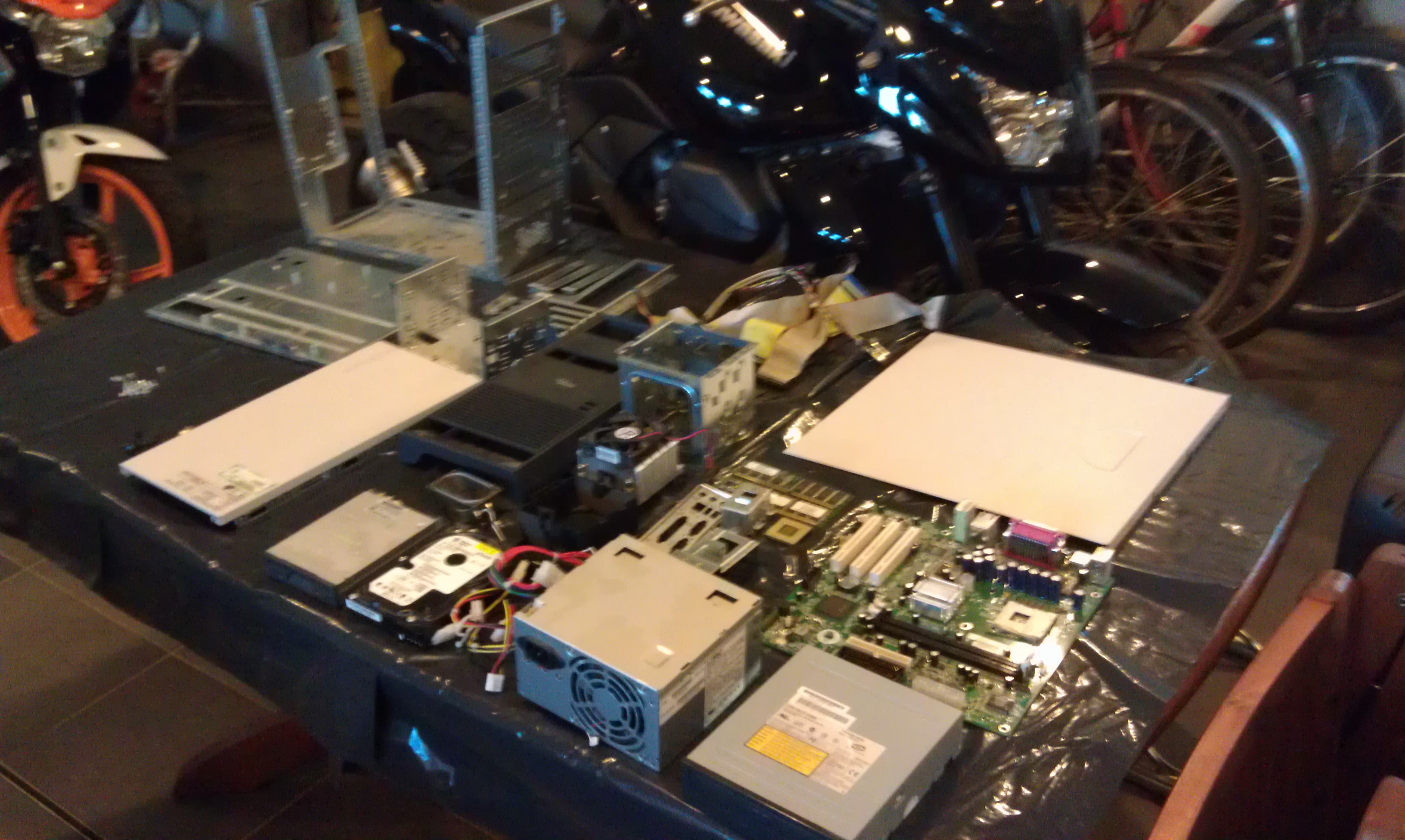

Hardware from the old pc



Jailbraking the HDD

Endret 9. mars 2012 av medlem-245286

[Gjest medlem-245286]

02.03.2011:

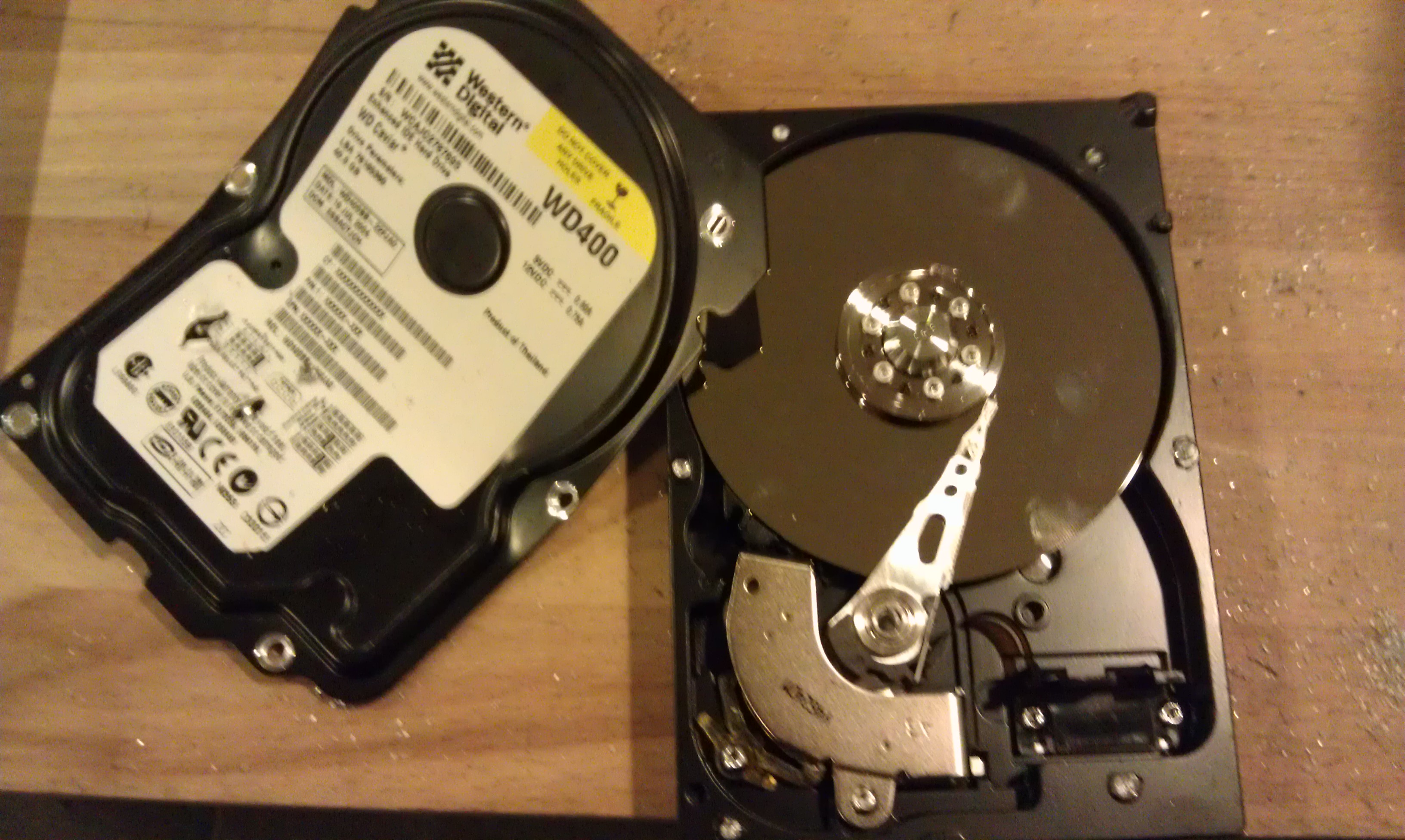

Got sick and couldn't go to school, but of course I could take a look on my new computer. I have made some rough drawings and planned on the case. Take a look: NOTalis. I also marked up everything on the computer (note that I forgot the on/off button and reset button ^^. After drilling a lot I decided why not drill up the old Hard Drive. From this point I've loved safety glasses as they saved me this time! After that I took a trip to the store and bought a new pair of glasses and some tools. Hope to make some test models in wood tomorrow evening. Pics under

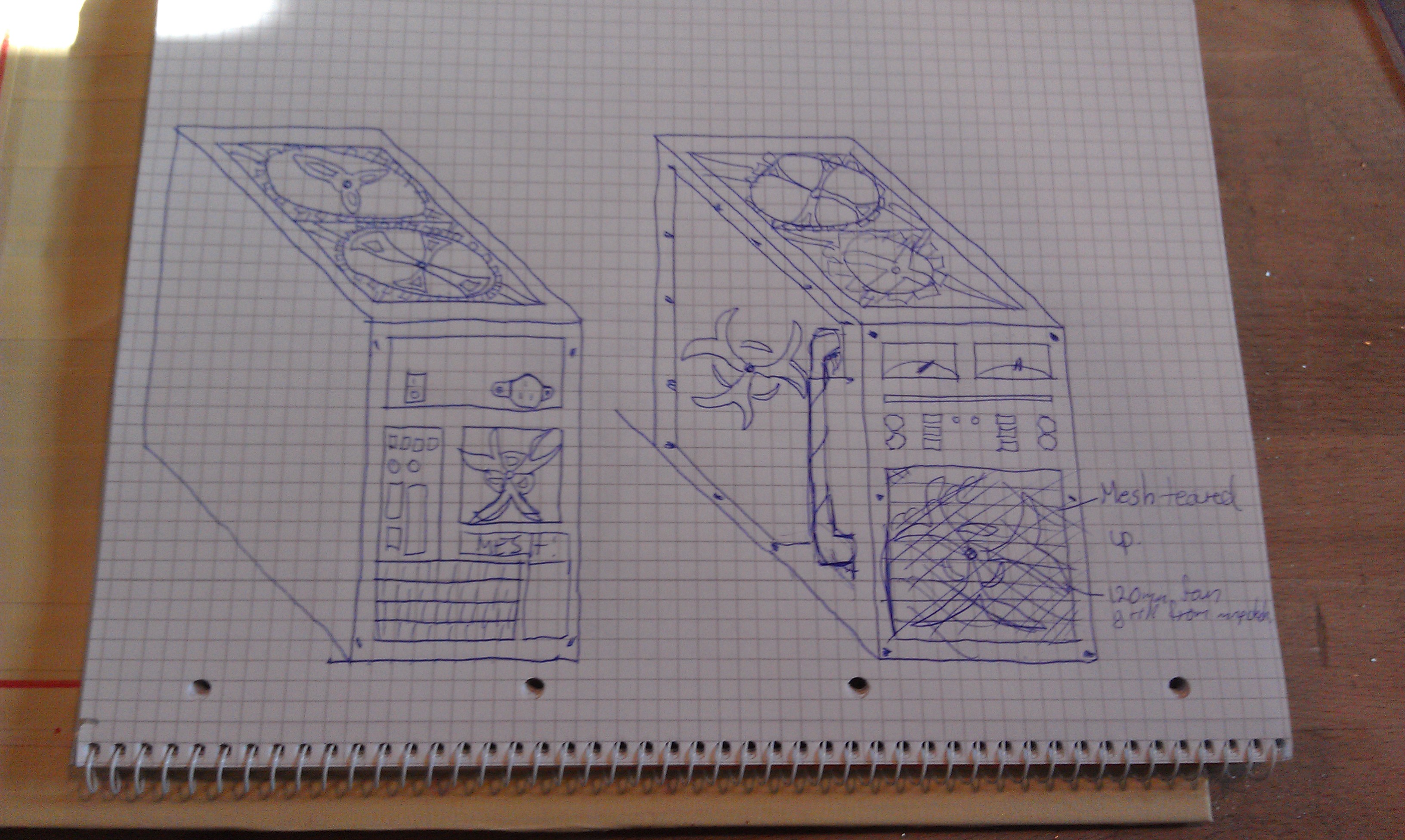

My crappy drawing skills



Marking the top panel

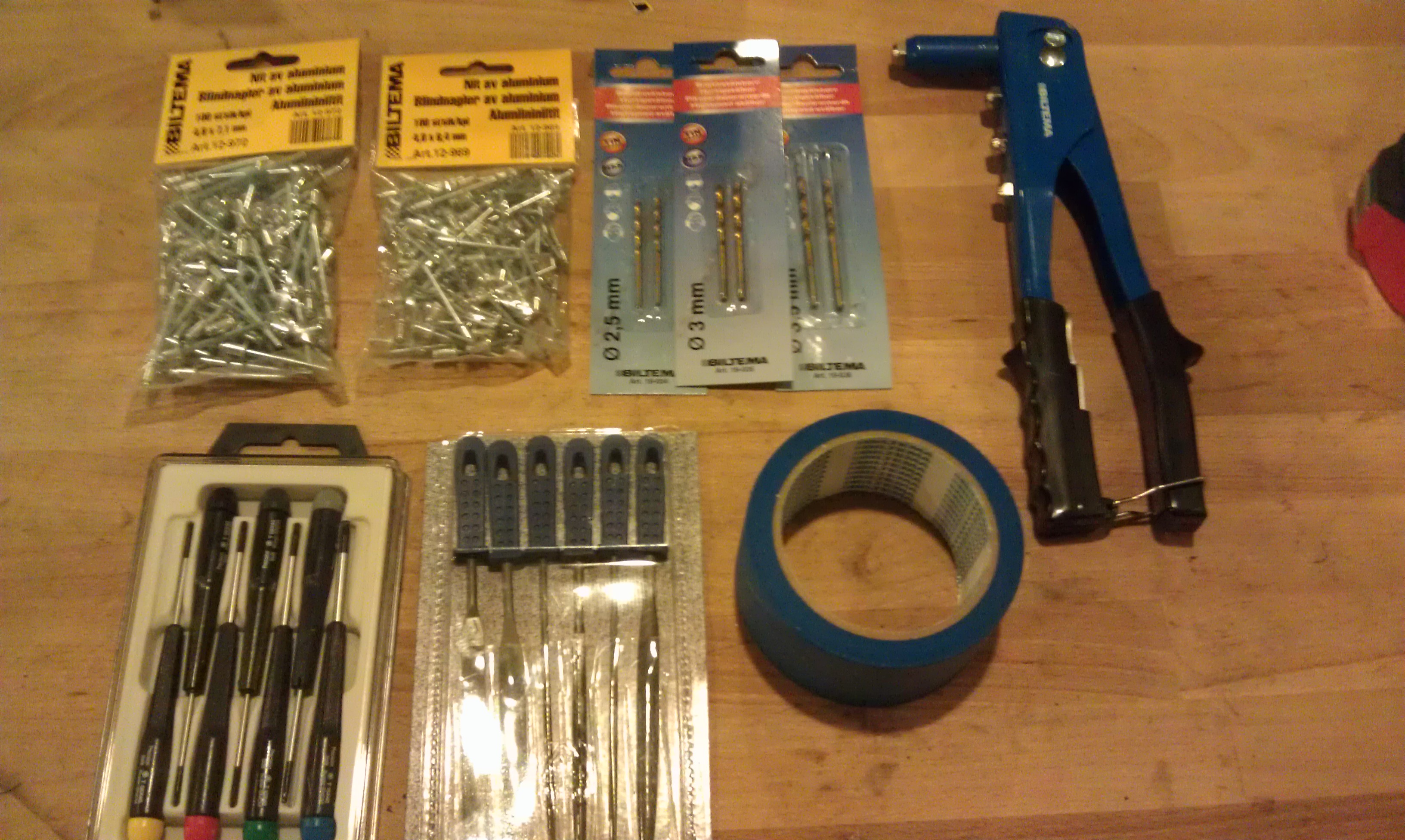

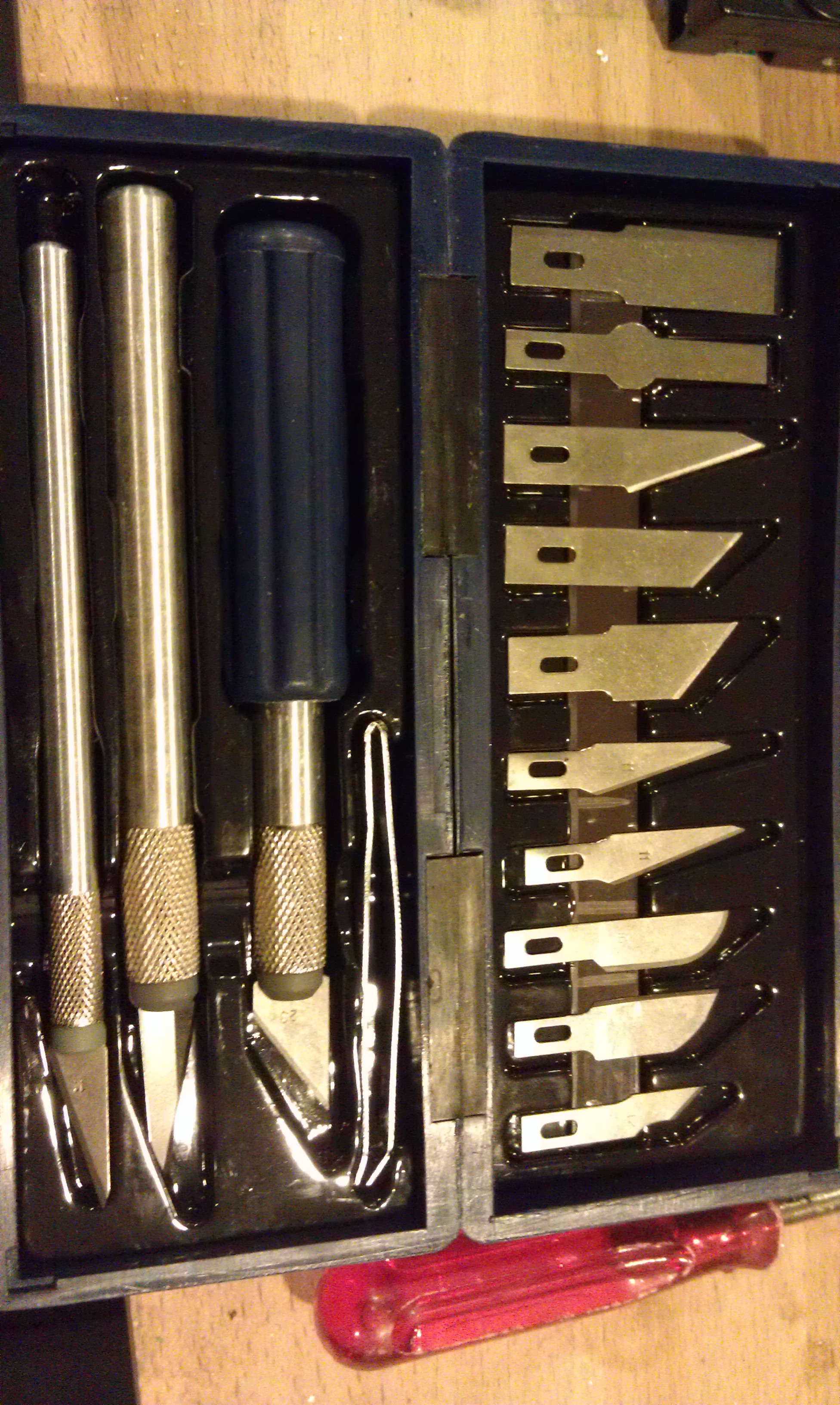

Found some tools which may come in handy..

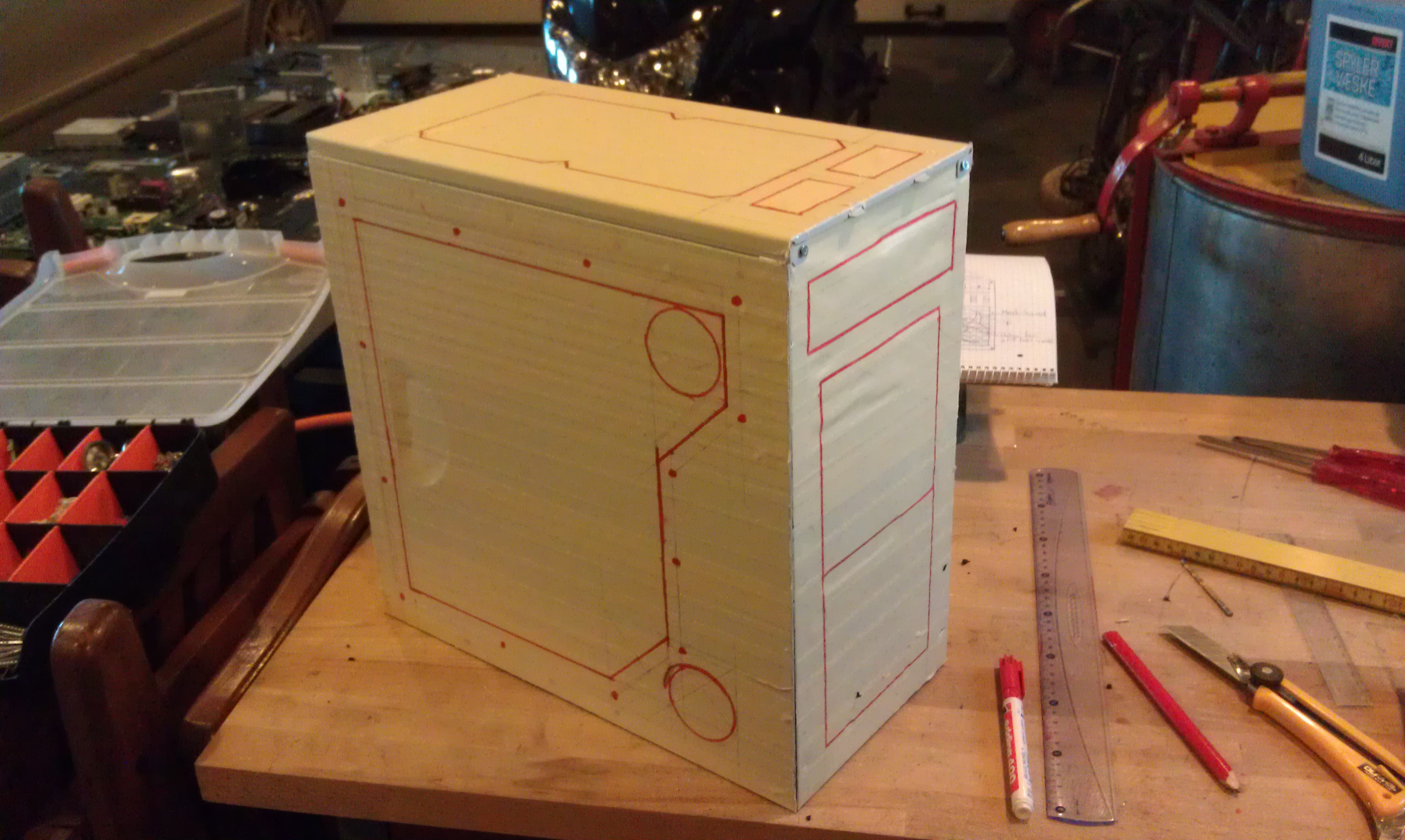

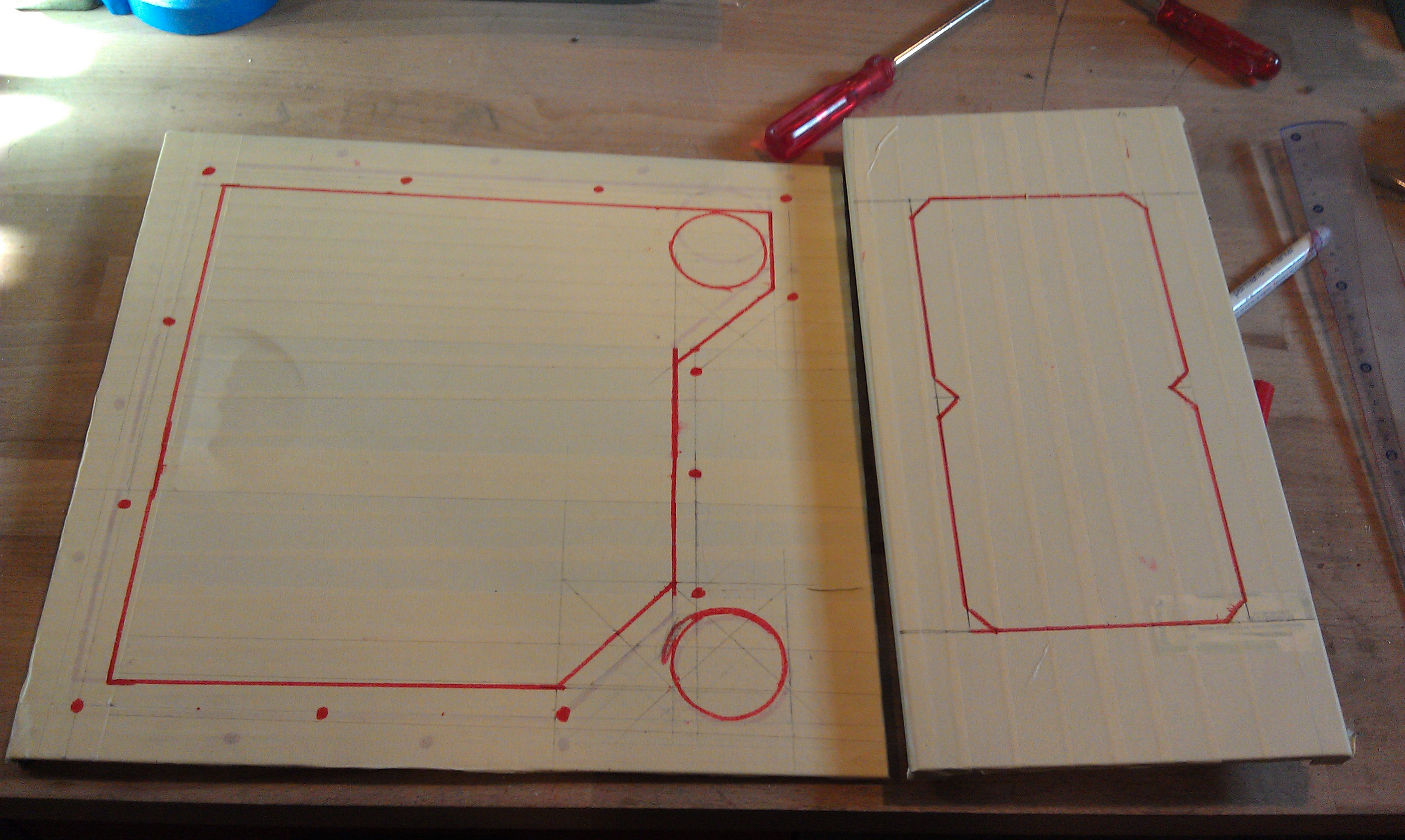

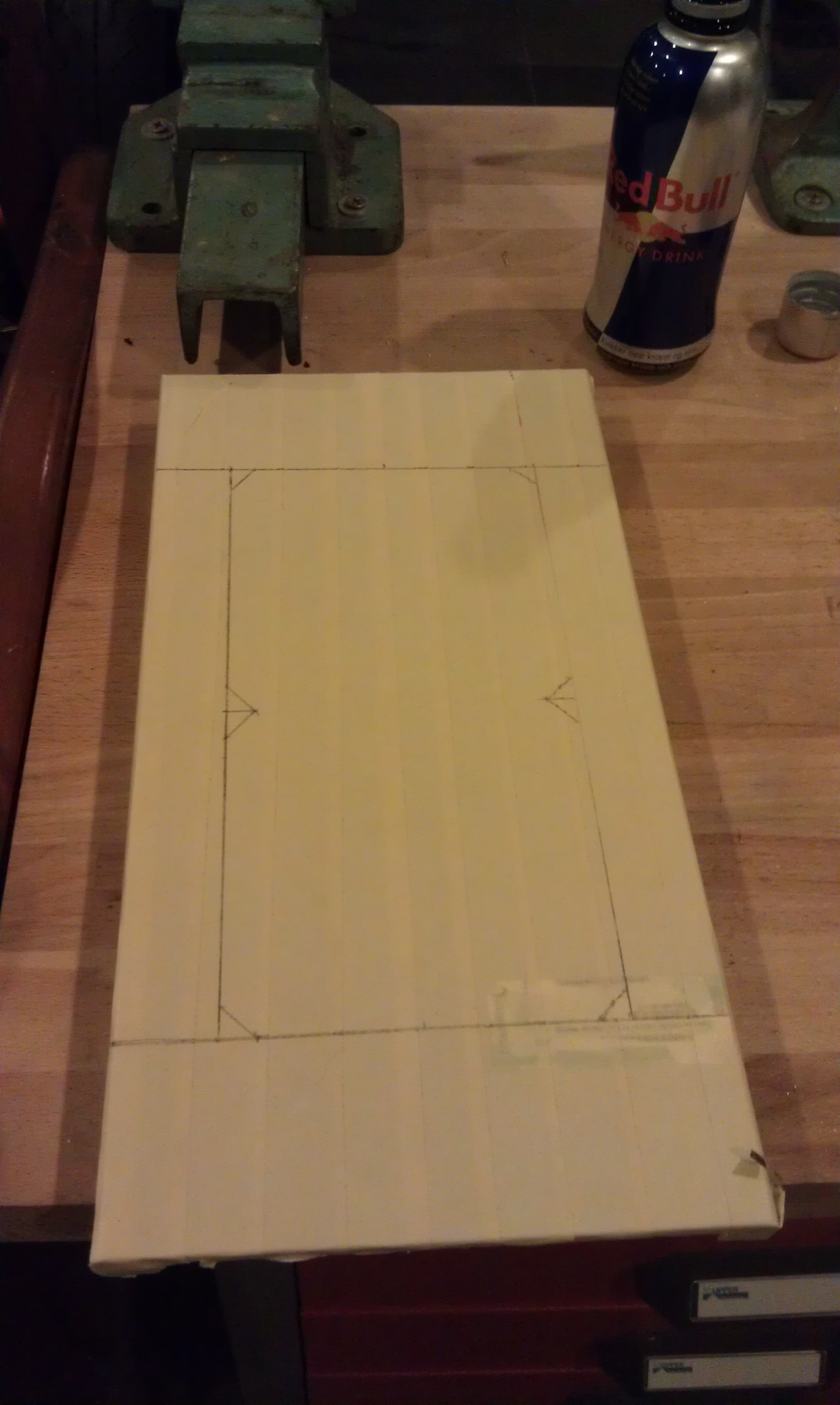

Sidepanel and top all marked up

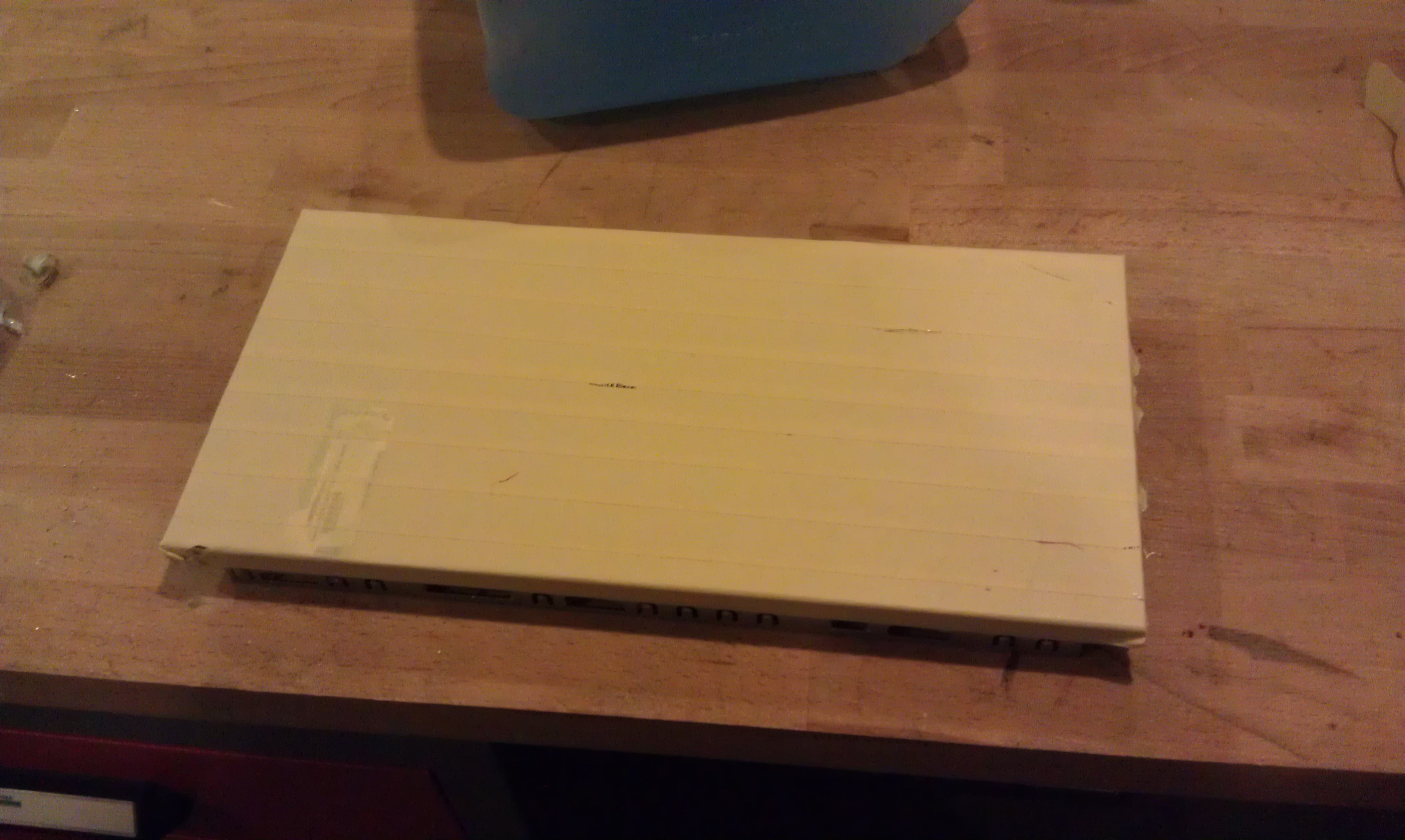

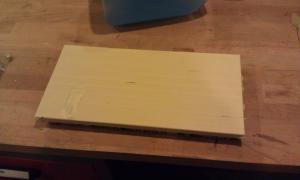

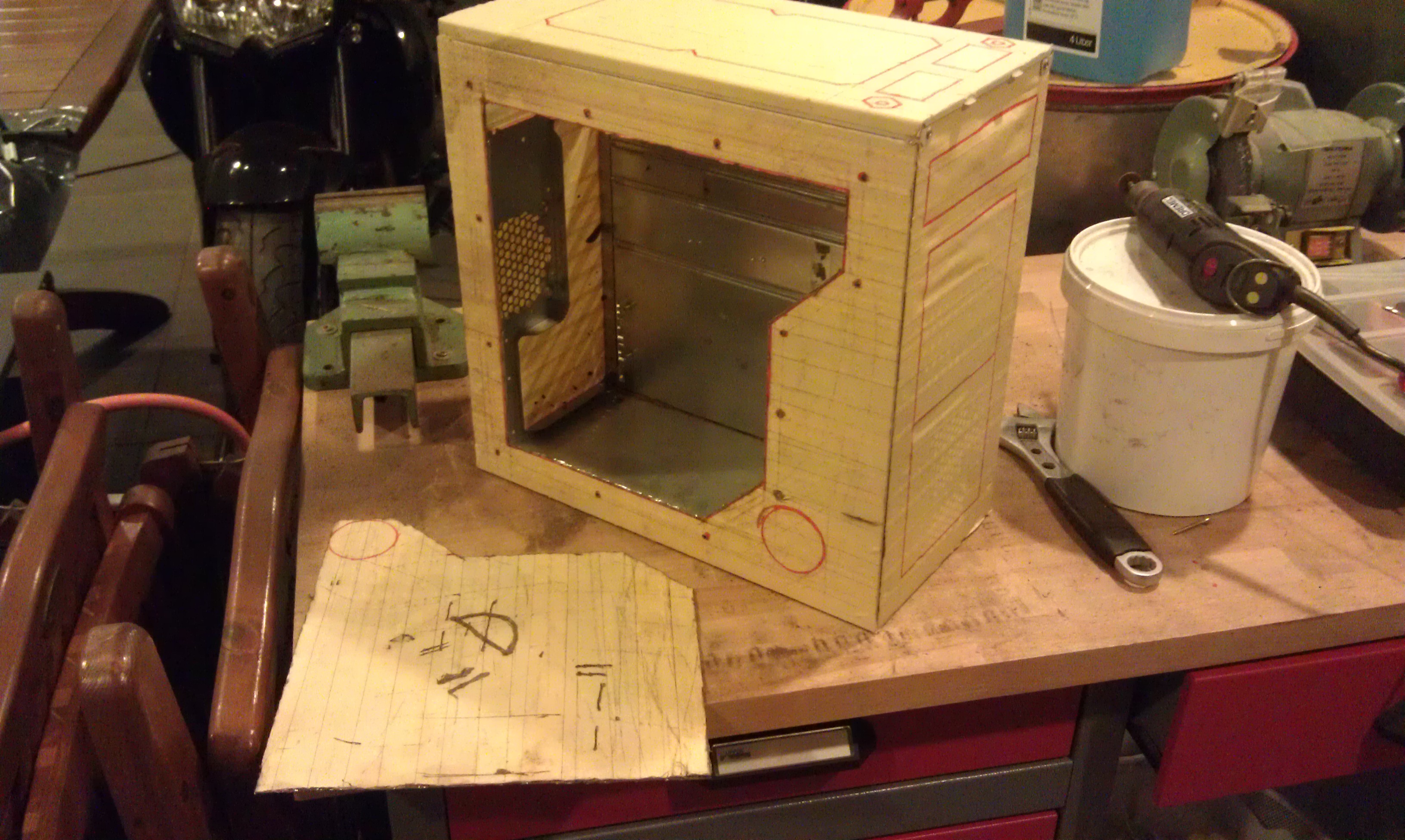

First ever masking tape mod!

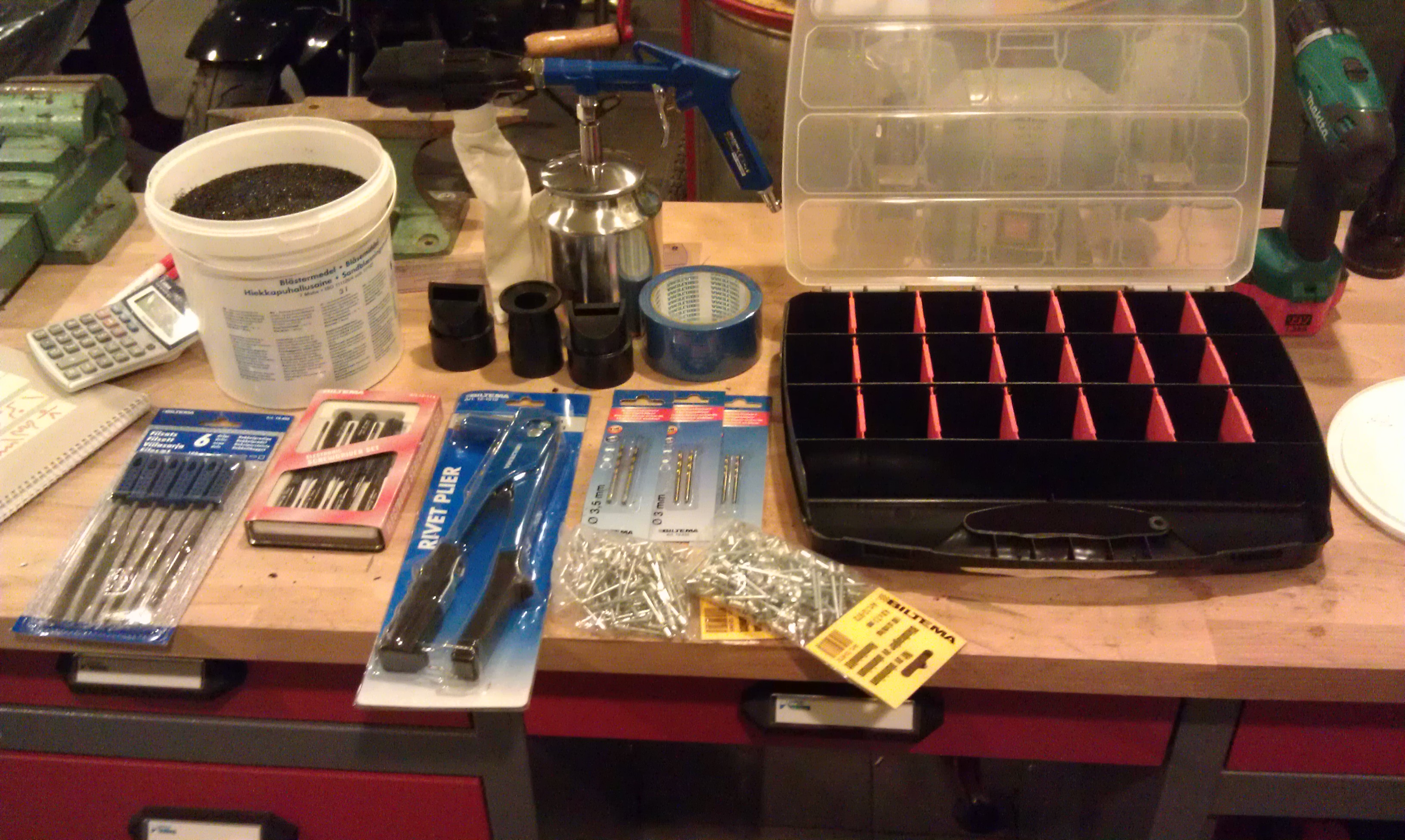

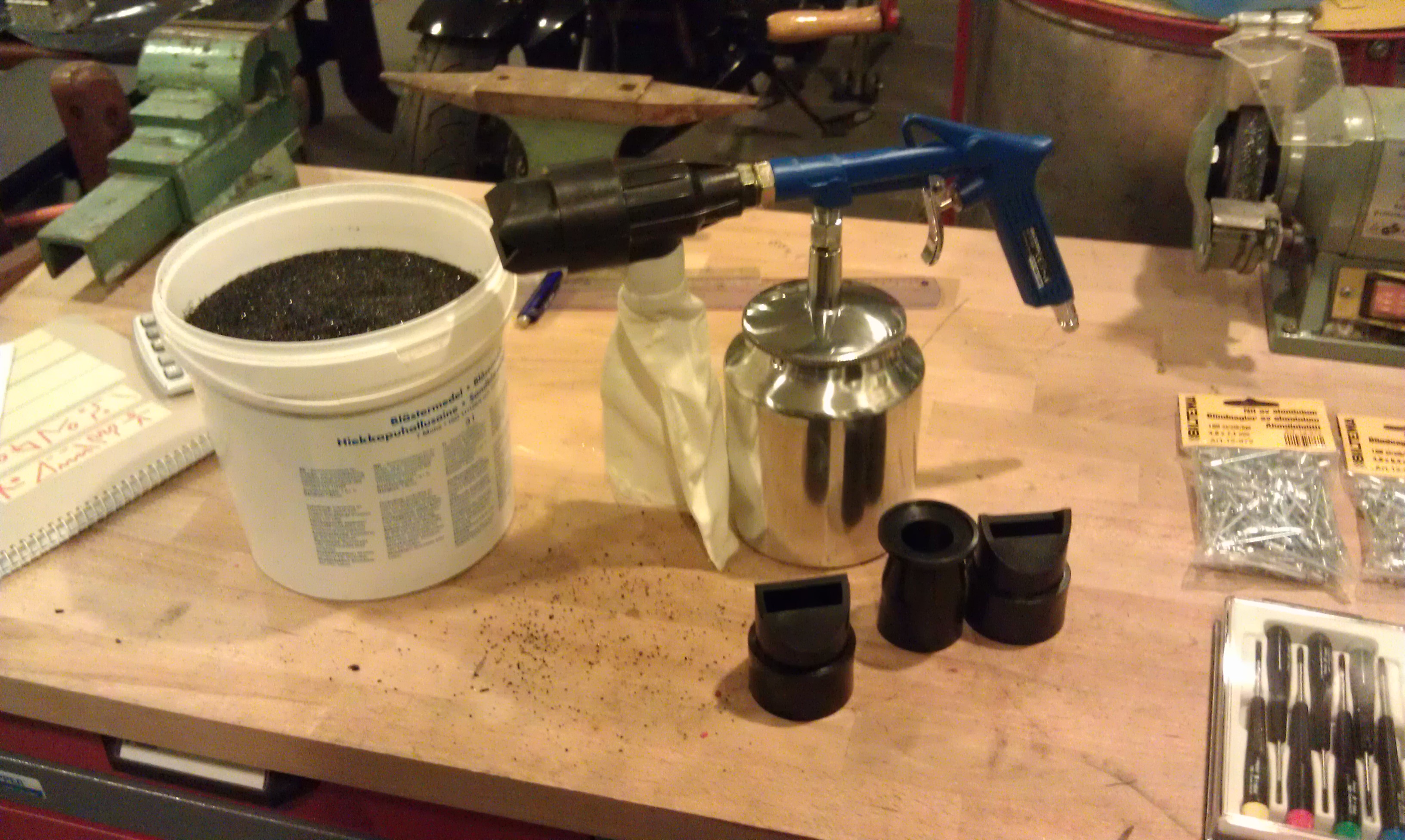

Been to the local store to buy some tools



Mhm...could be interesting

Endret 4. april 2012 av medlem-245286

[Gjest medlem-245286]

09.03.2012: Just some cutting...

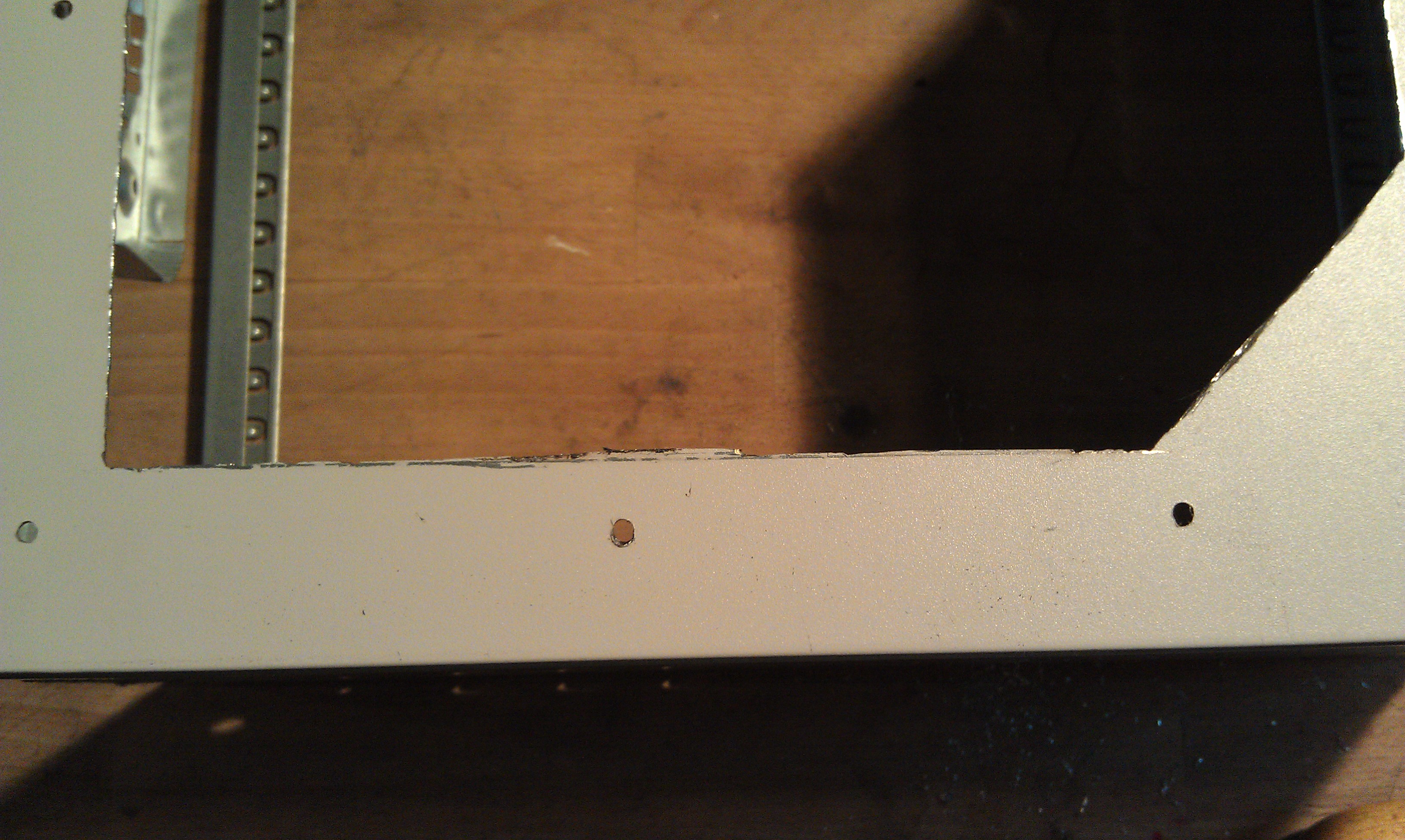

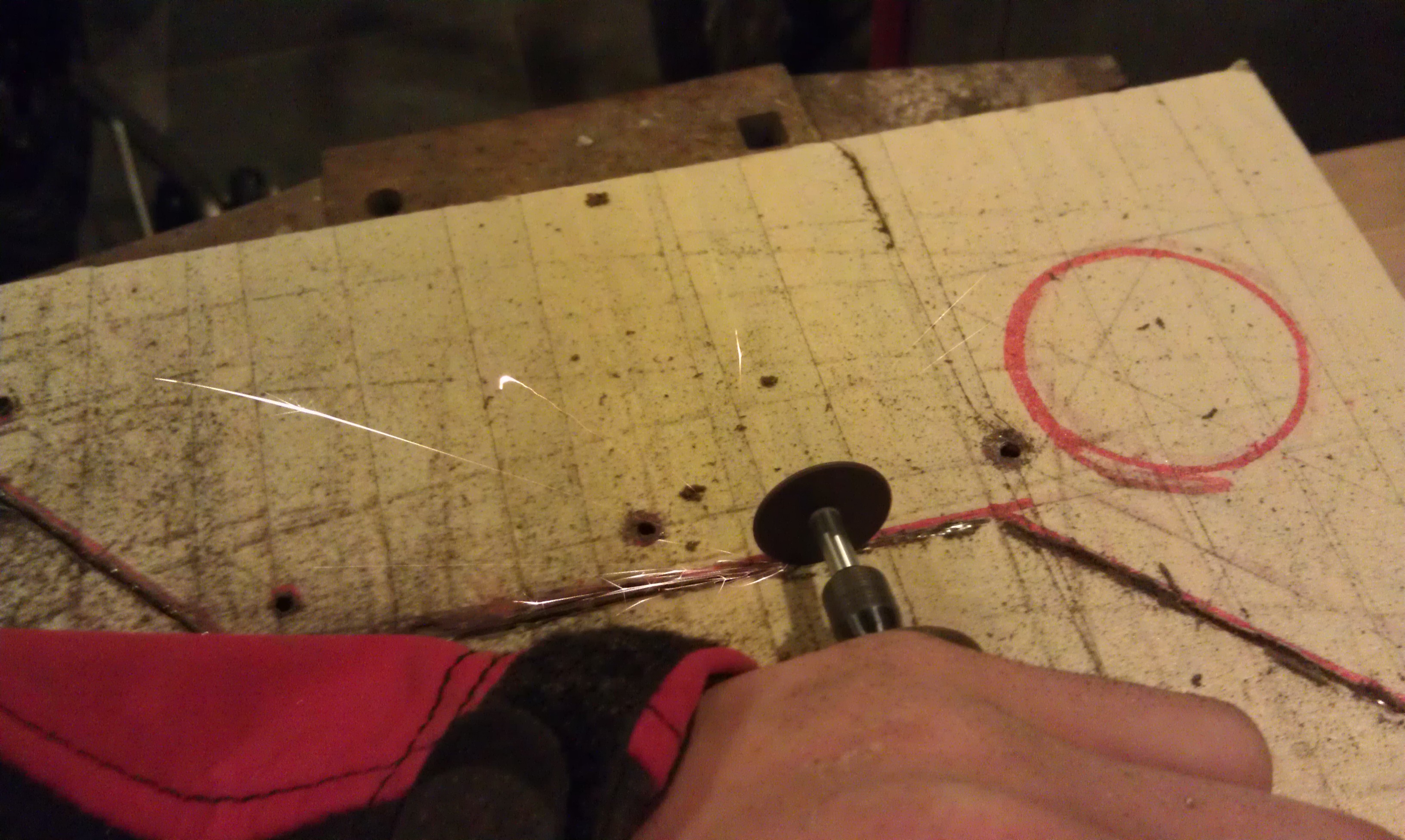

Today I started cutting out the side panels, needs some adjustment, but not any big….I really don’t wanna to degrade to a smaller window! Take a look at the picture Then I just need the parts from MNPCTECH.com - which got the best modding supplies!



Dremel is the only tool you should use for modding!

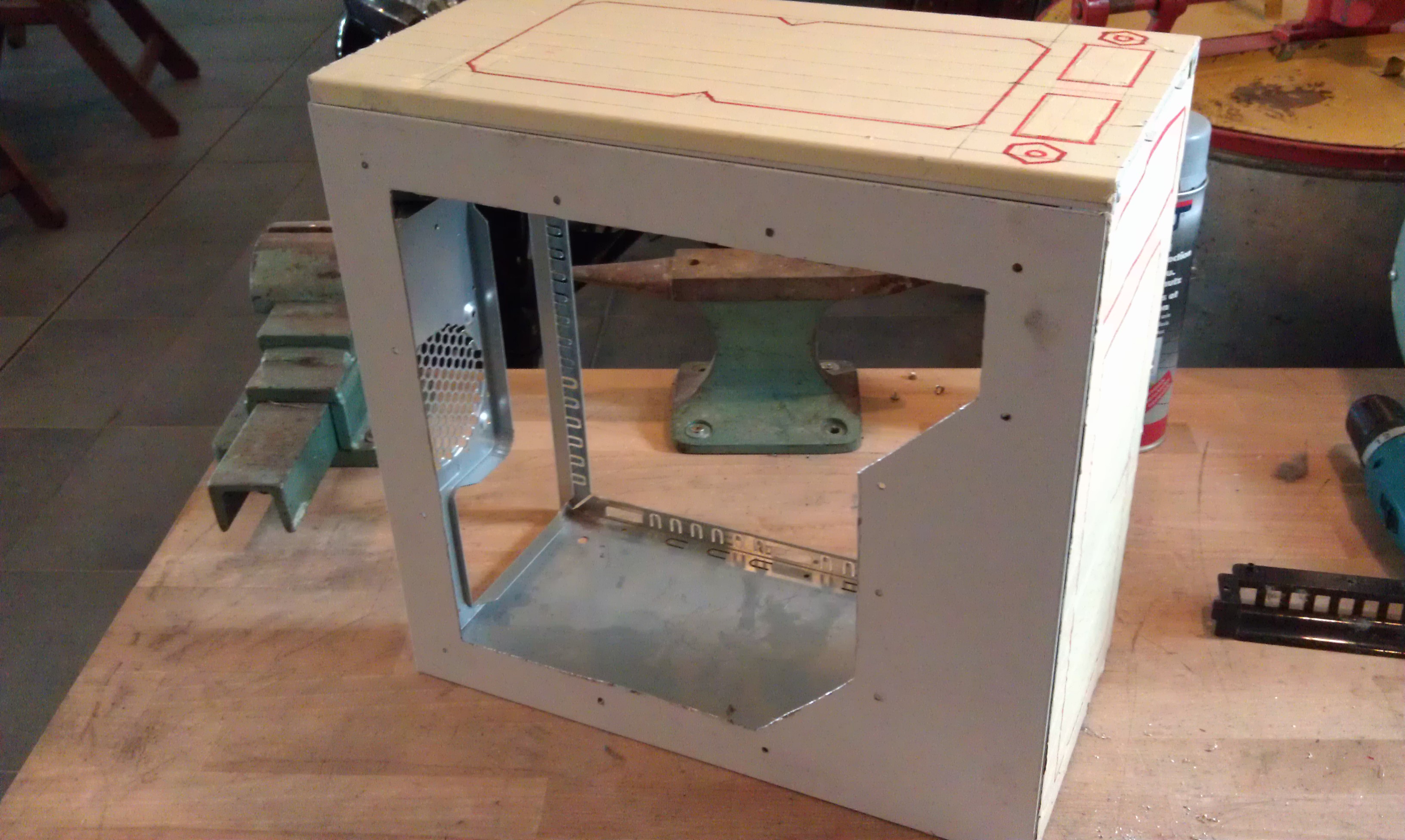

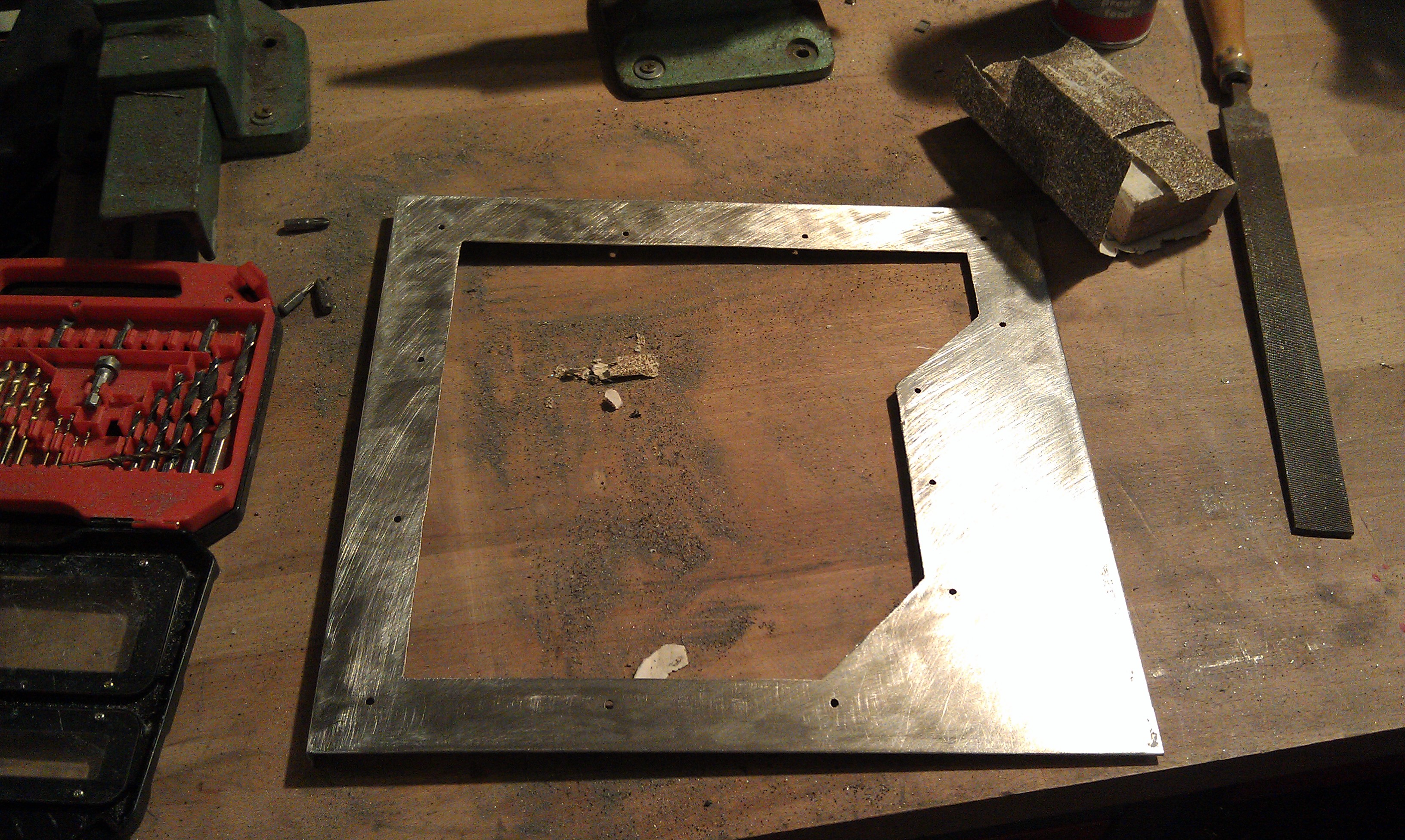

All cut out



Some work left...

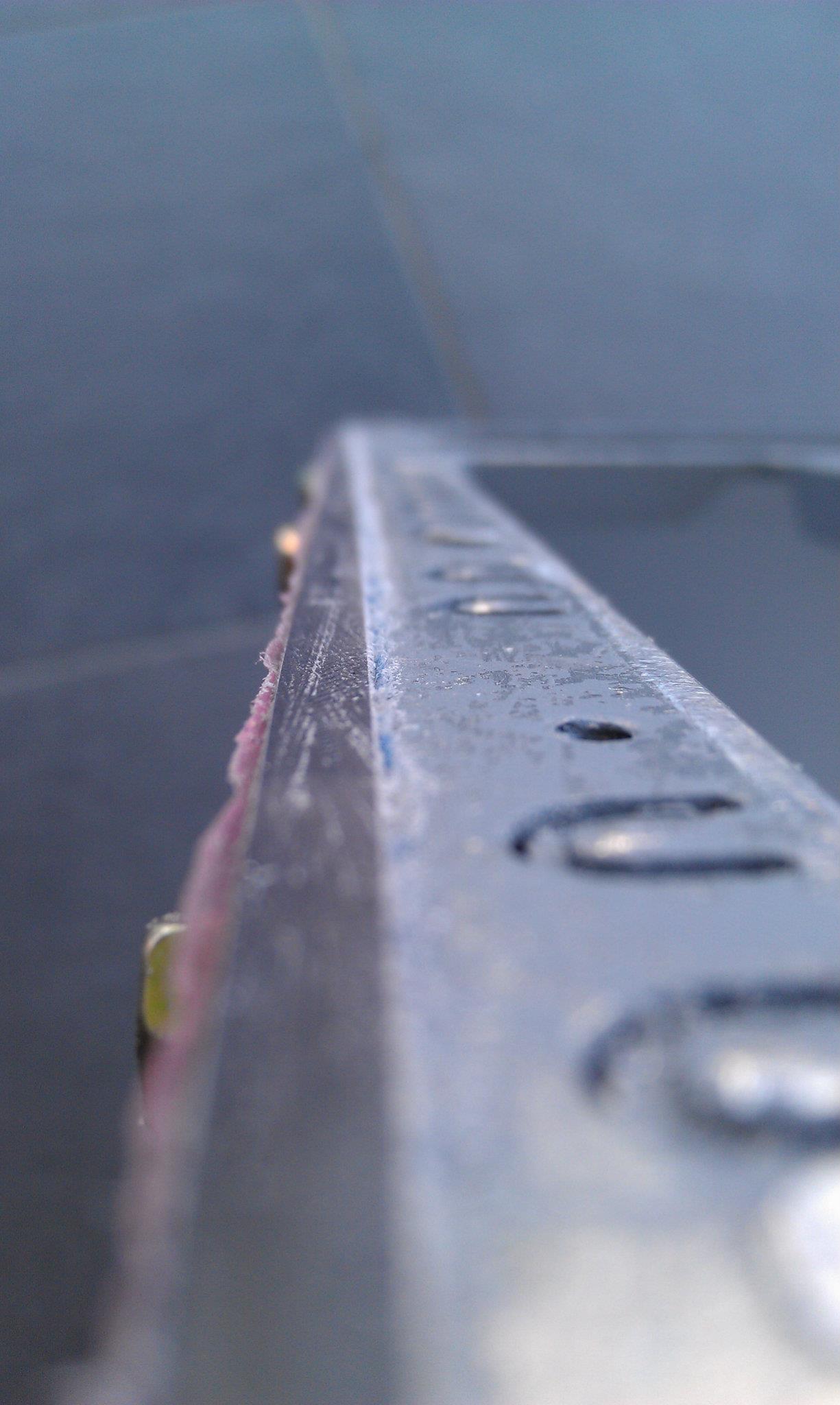

All sandpapered! just need the finishing touches now

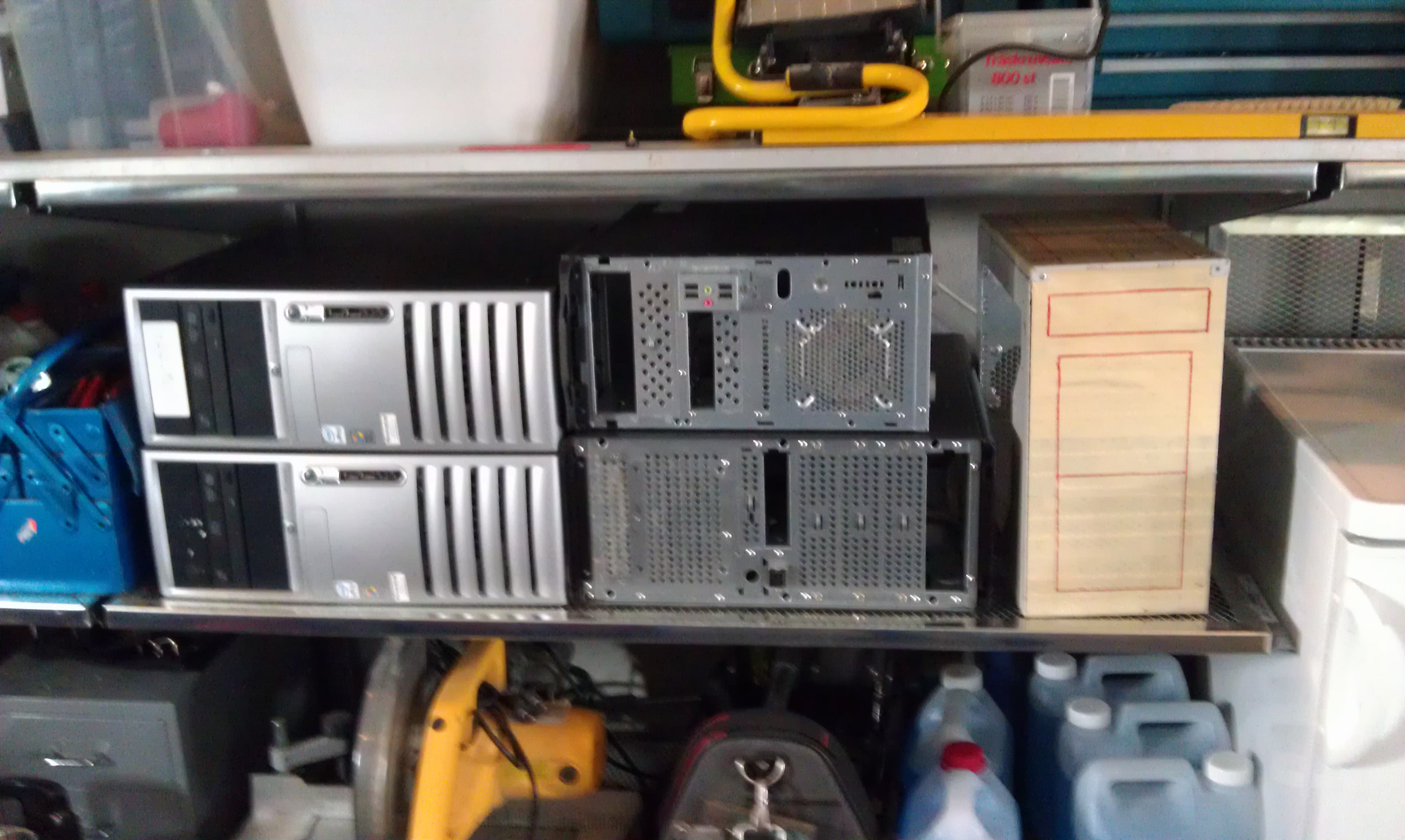

Got 4 cases from work, needed to alumi.

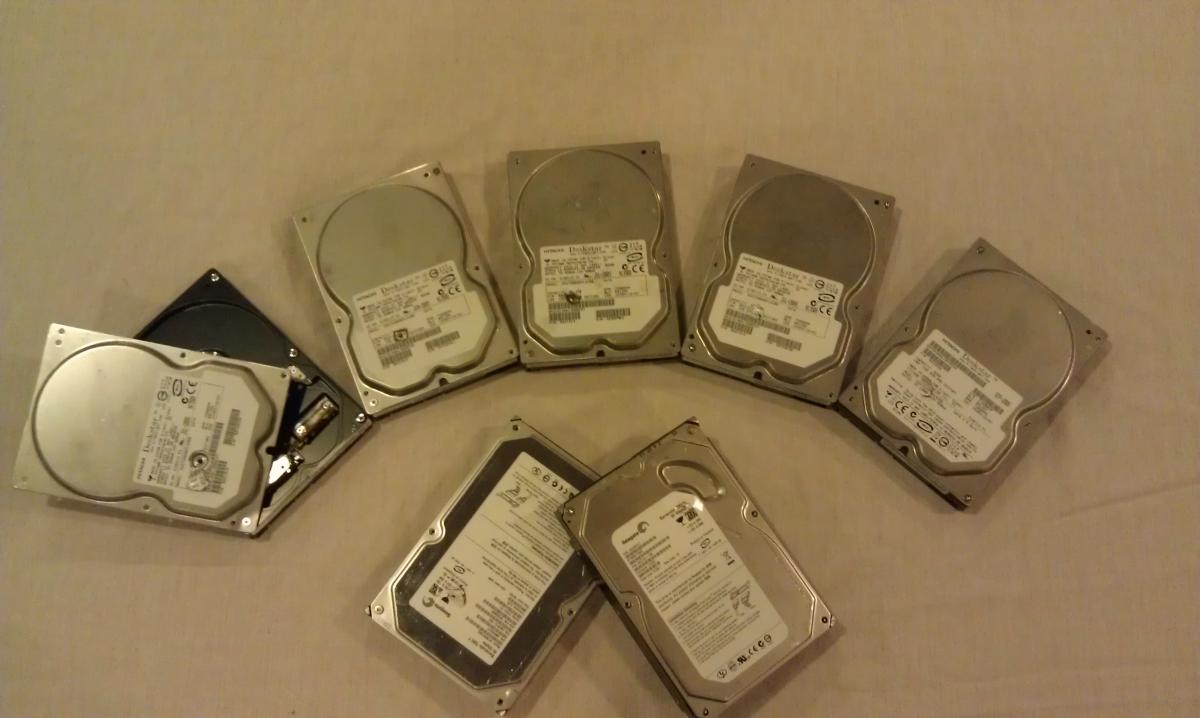

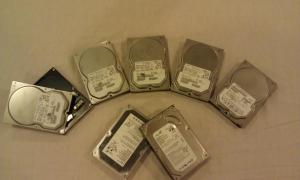

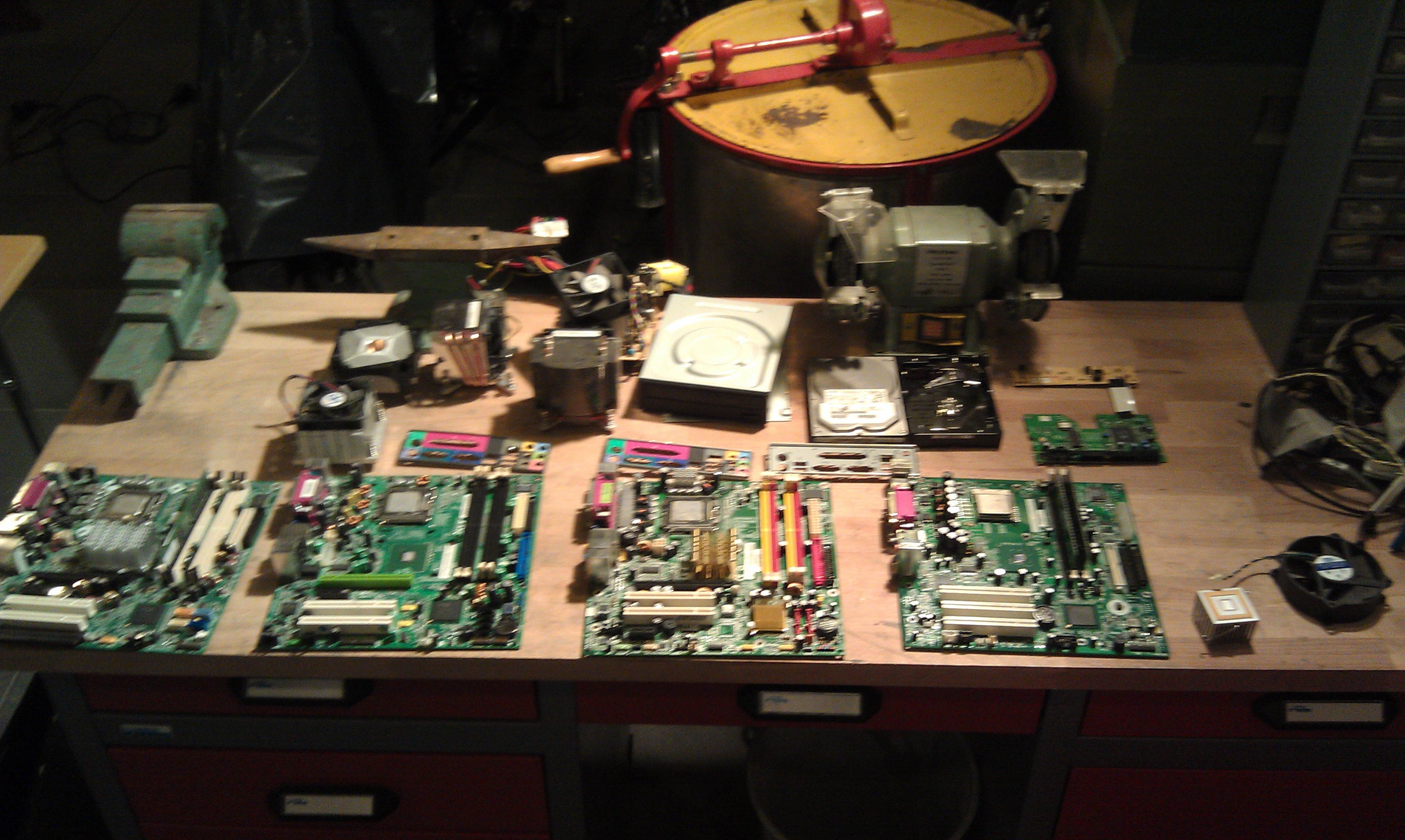

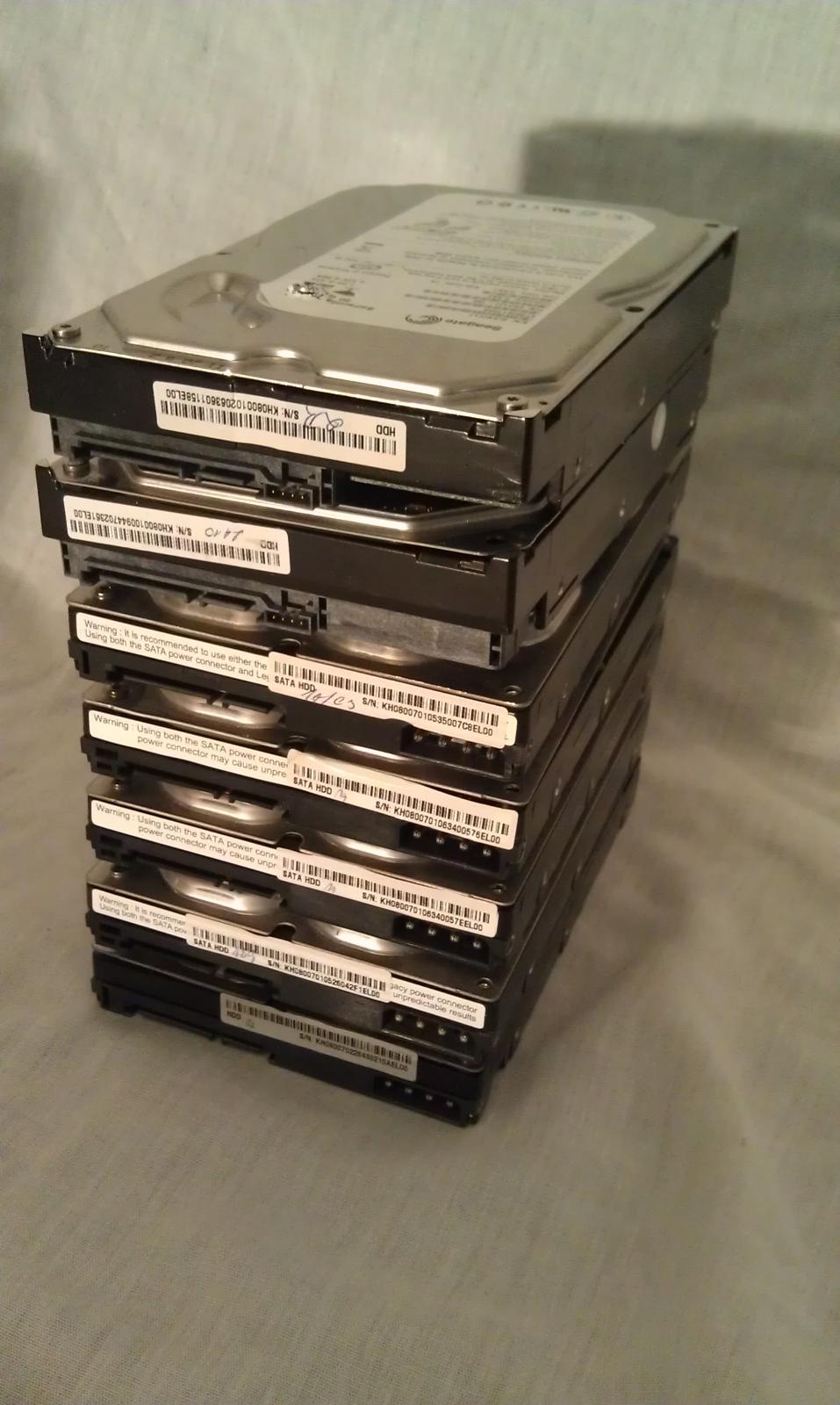

Some old hardware which was in the cases I got from

work

[Gjest medlem-245286]

18.03.2012: Got some air under the wigs.

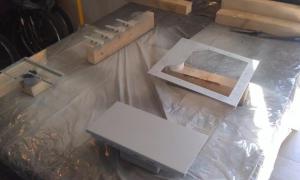

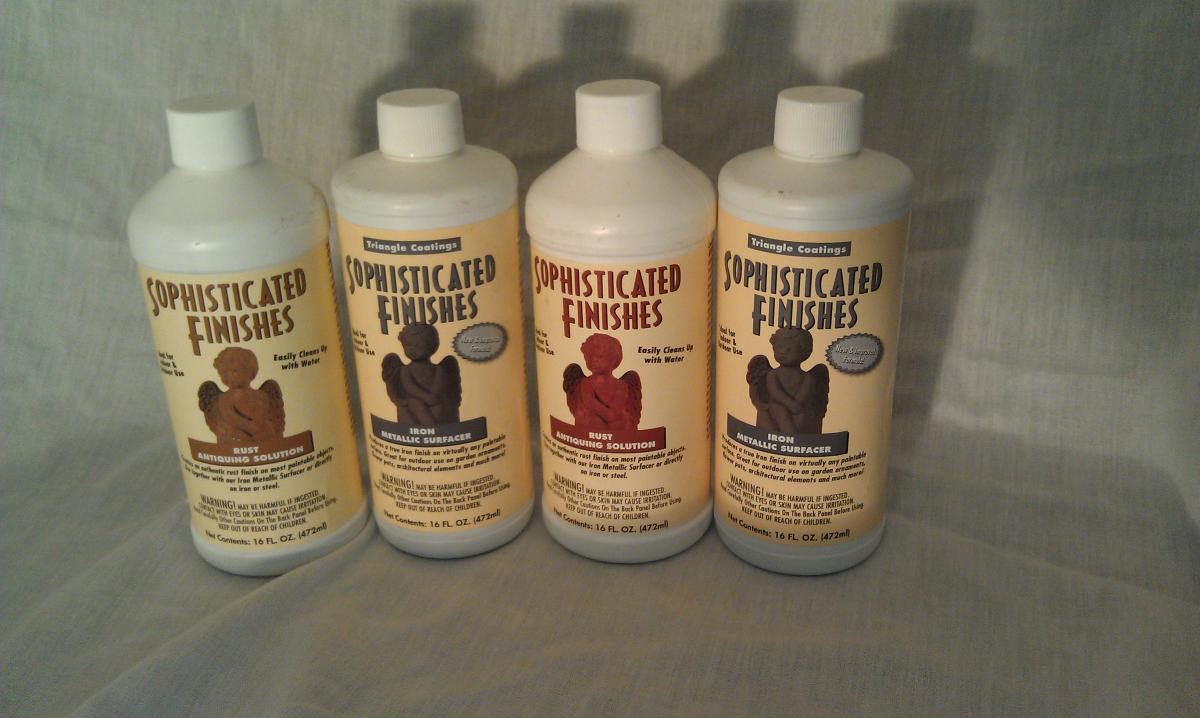

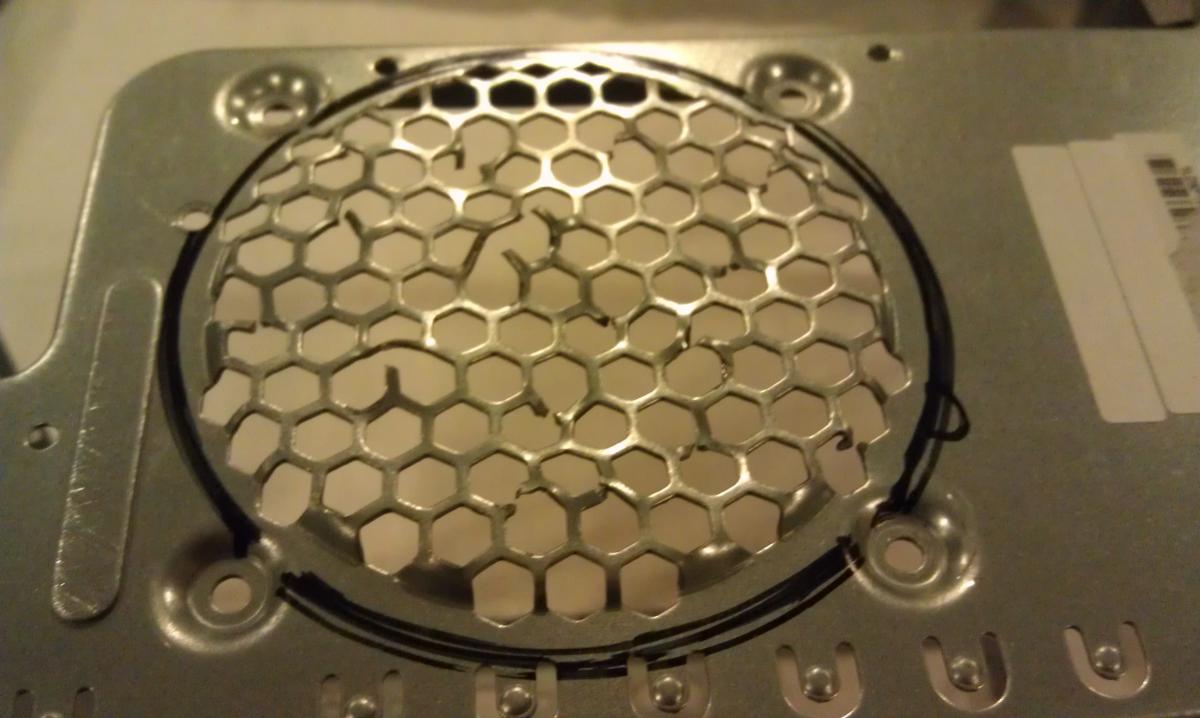

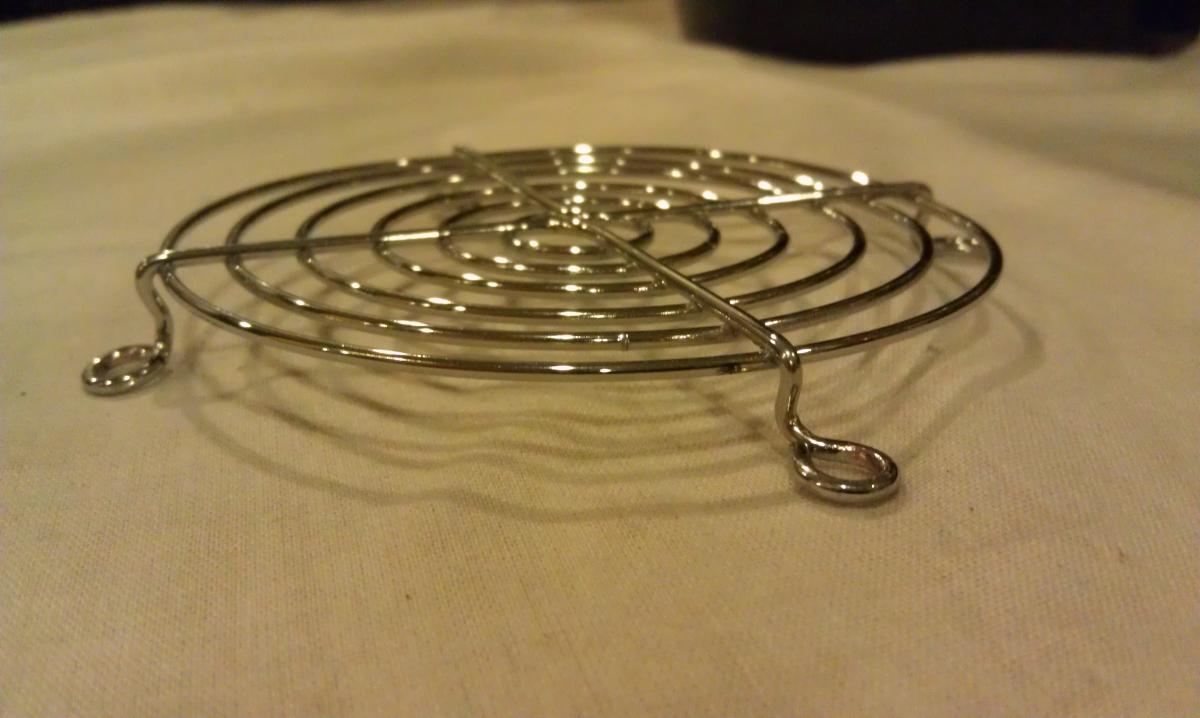

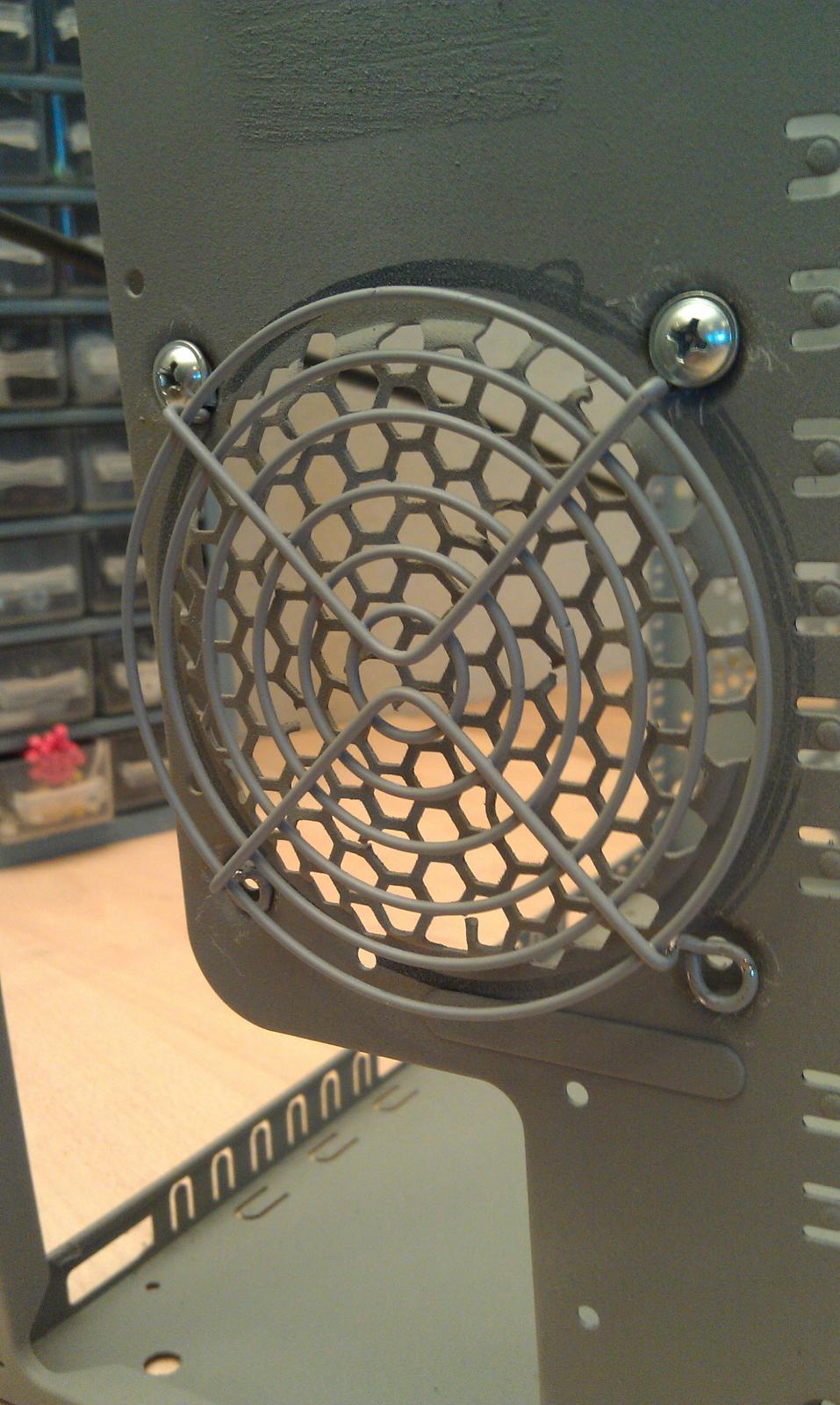

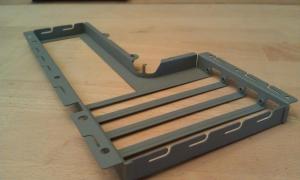

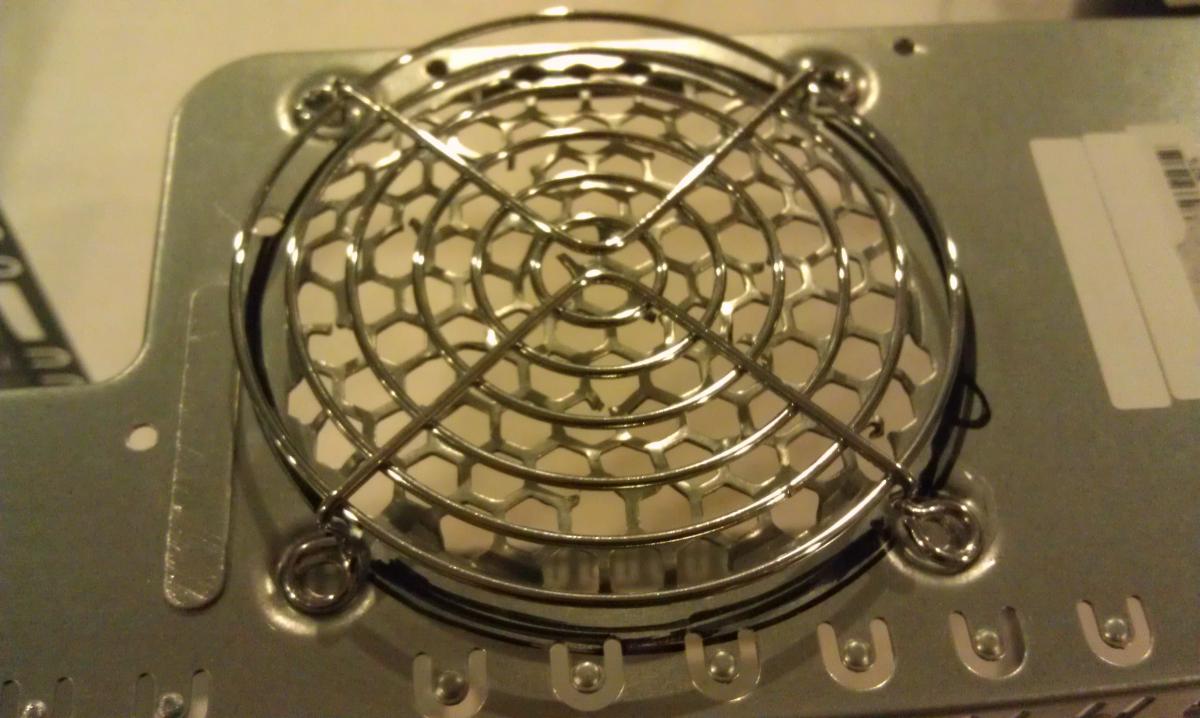

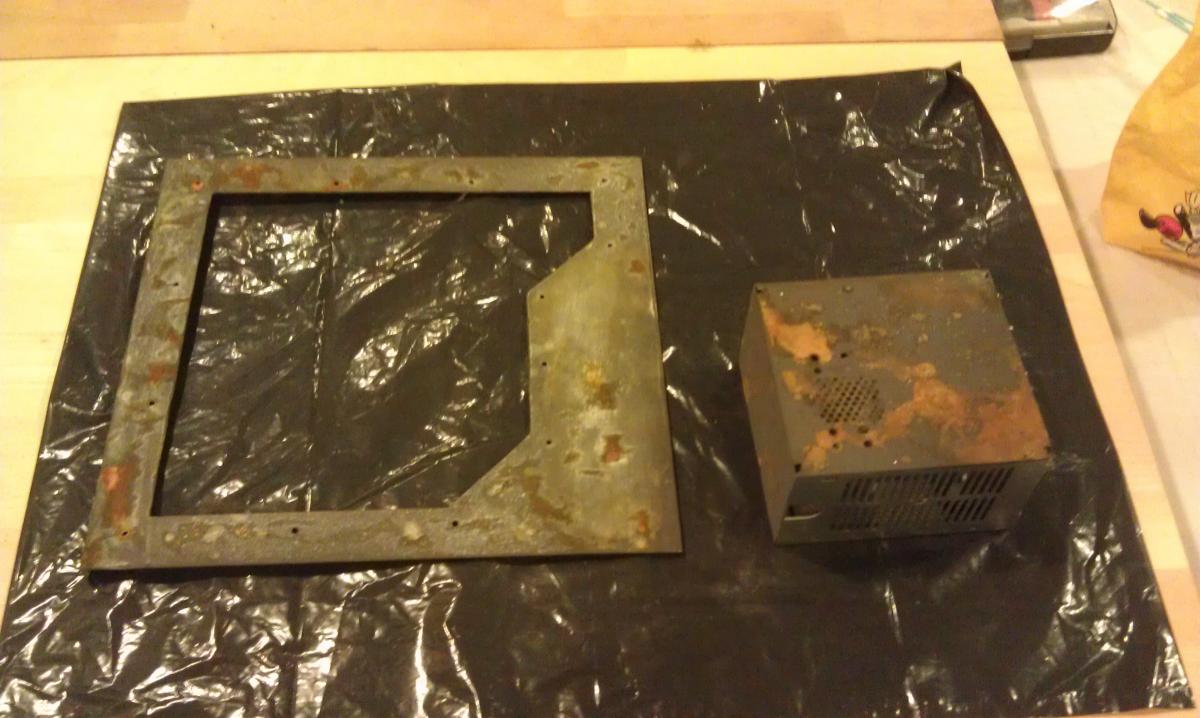

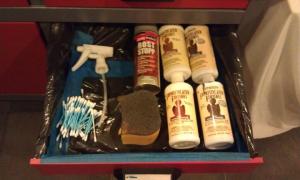

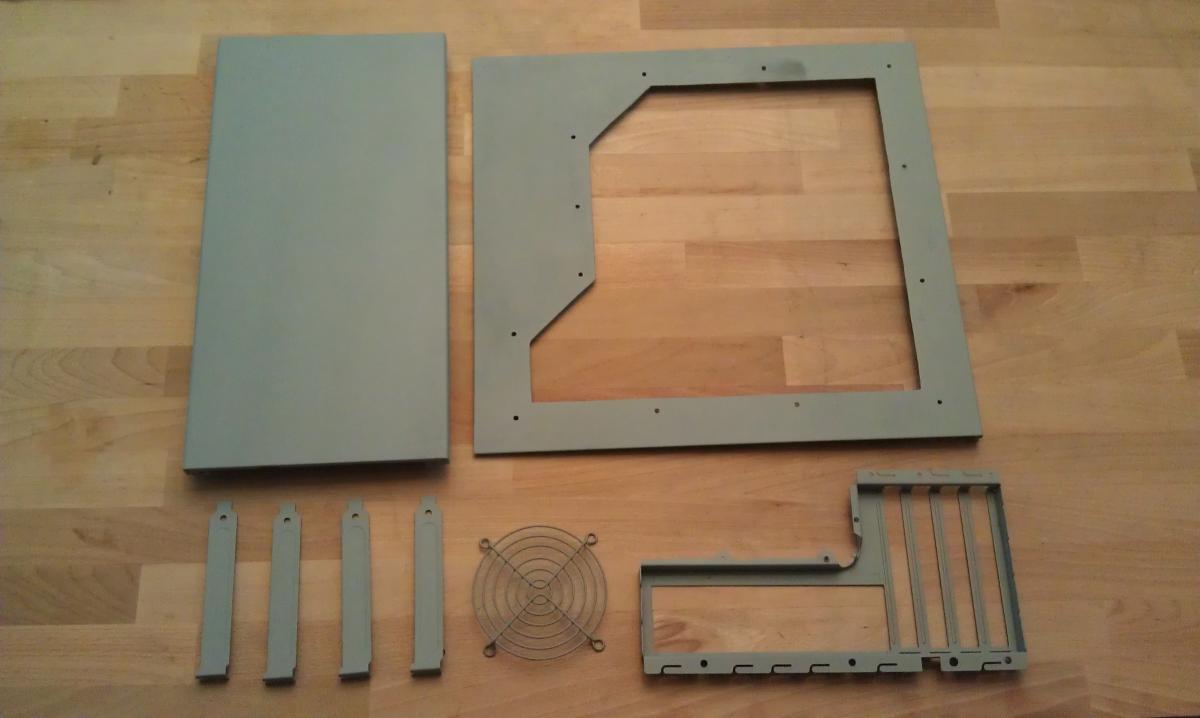

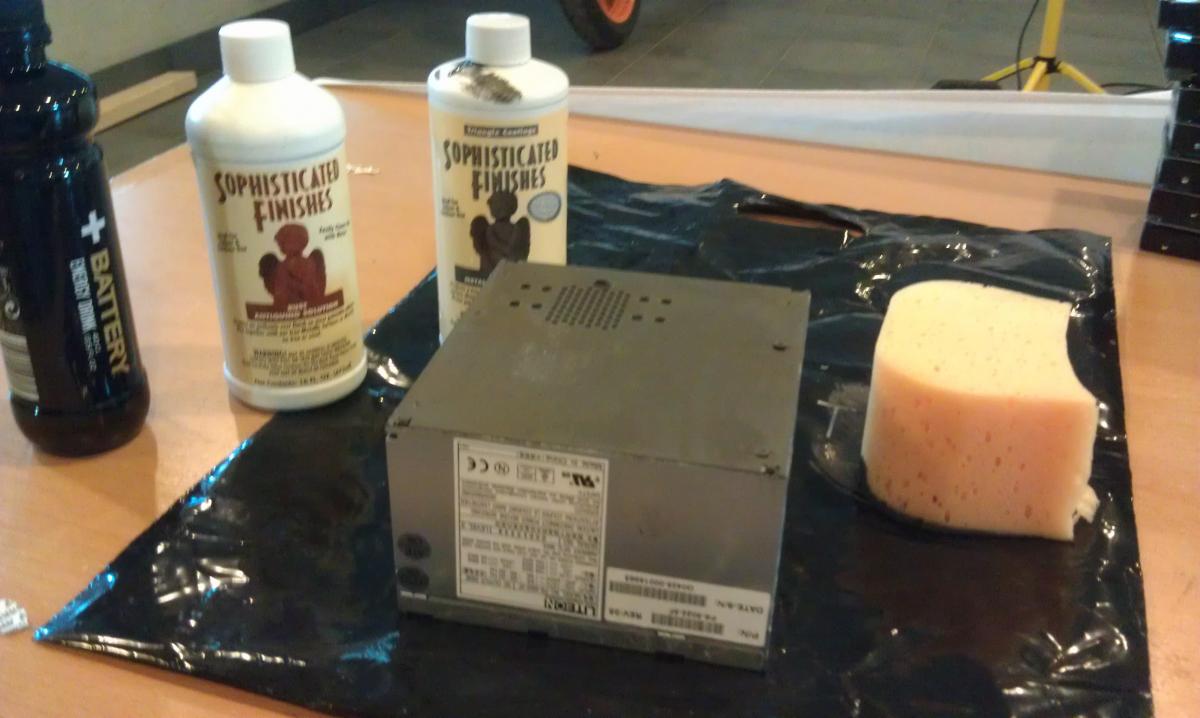

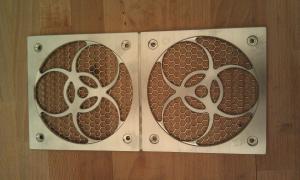

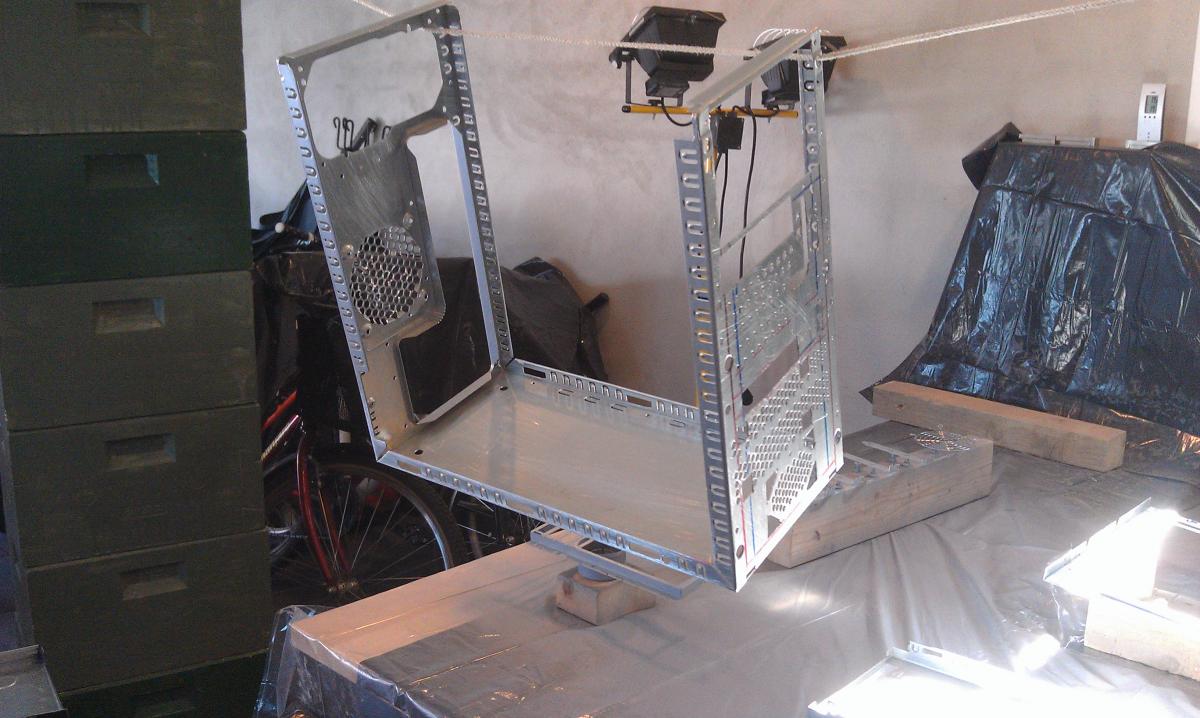

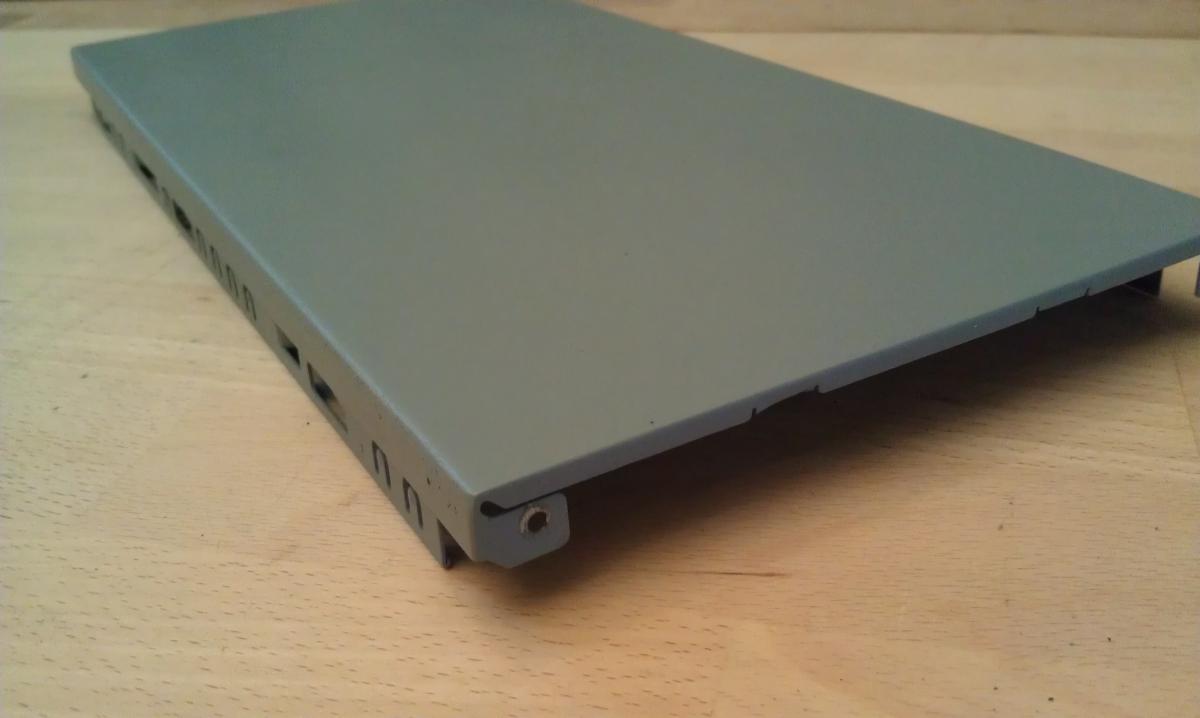

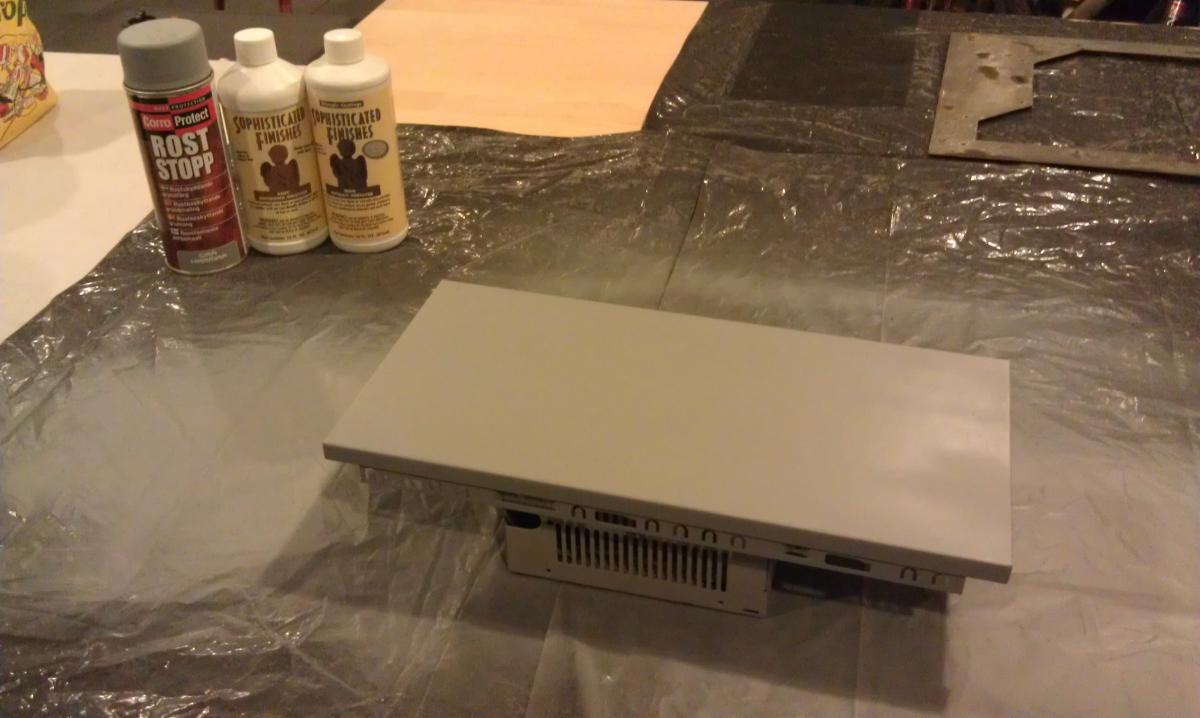

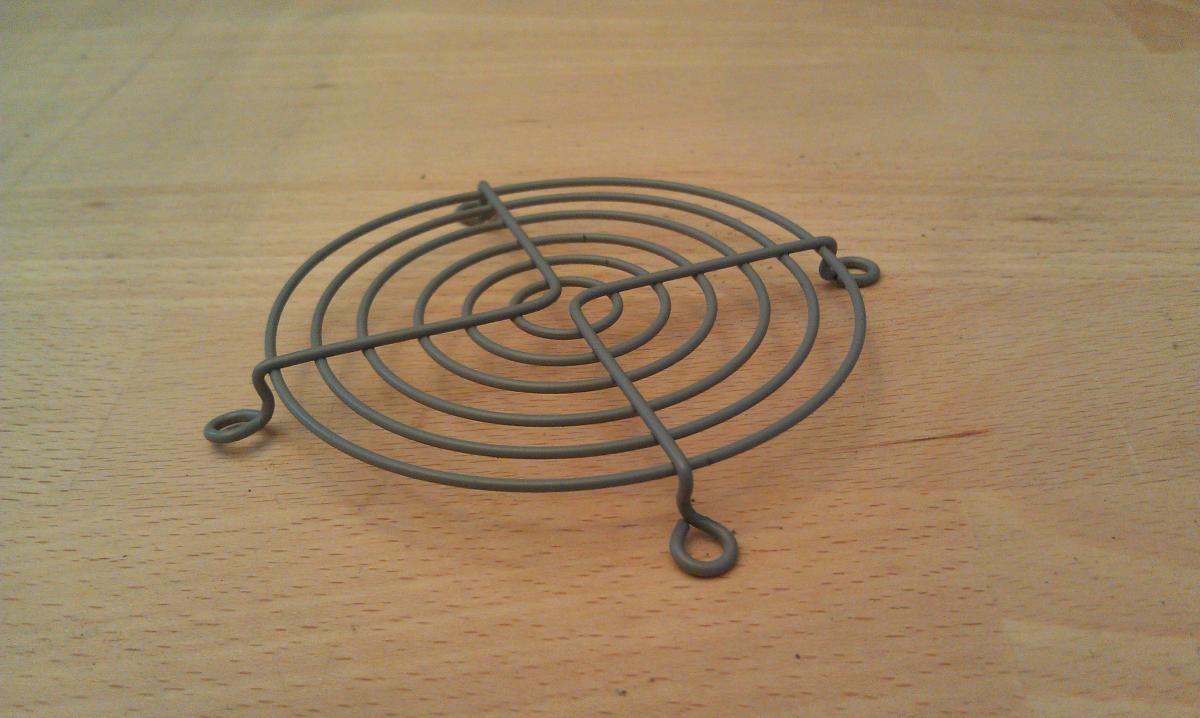

I been working the weekend, finally got the painting from DickBlick. Also bought a primer. And my first paint job went pretty fine! Also I did a little modding on the back fan grill.

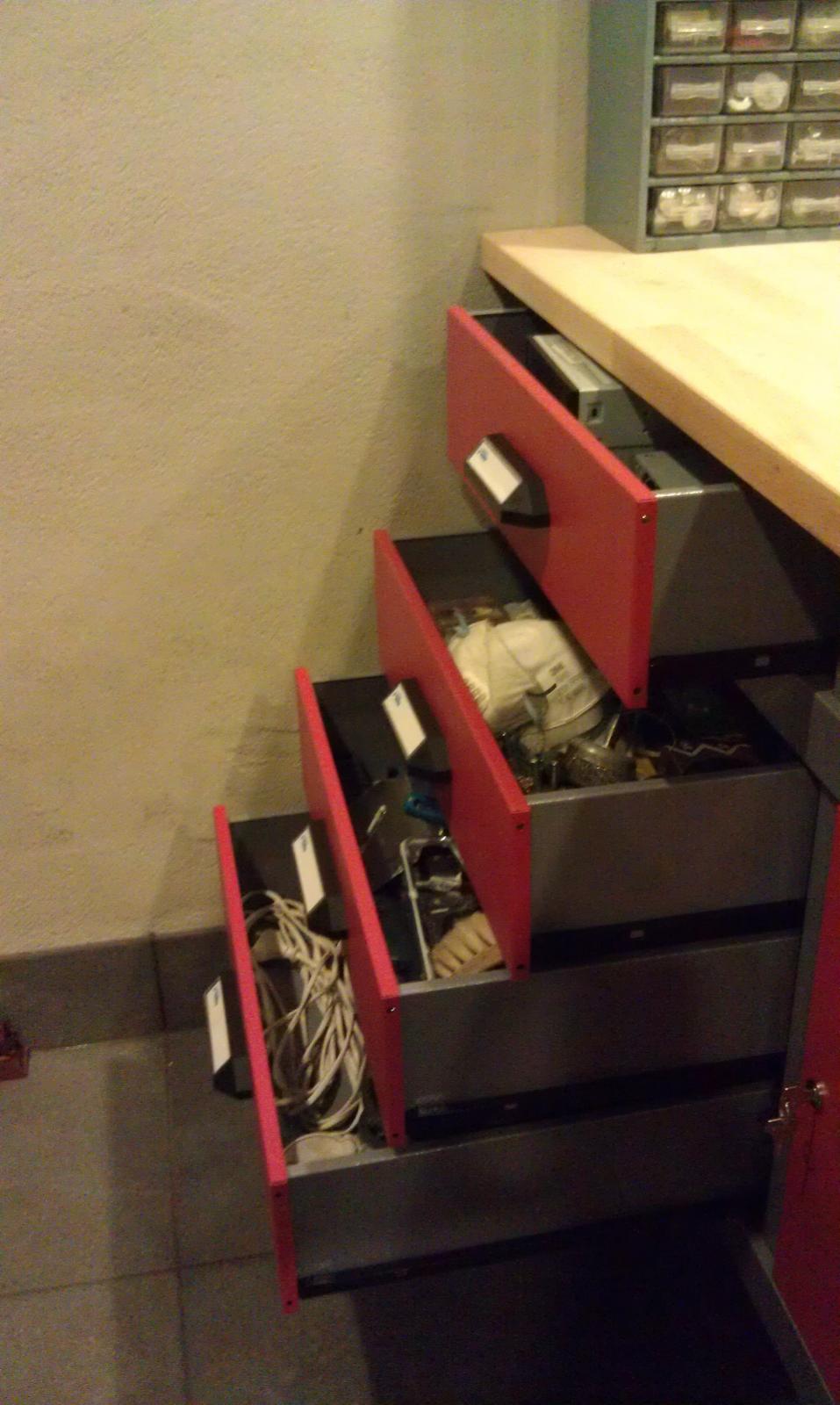

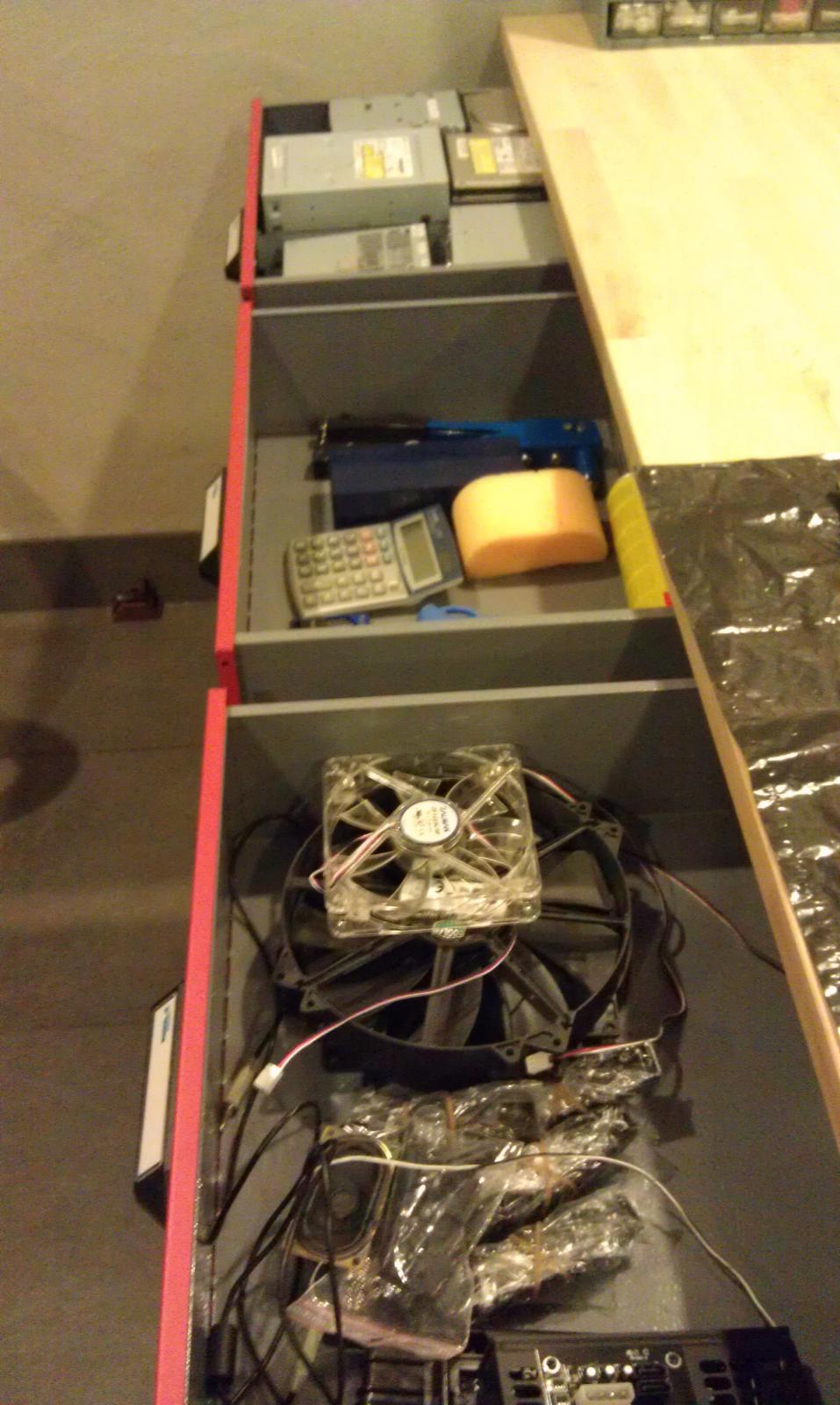

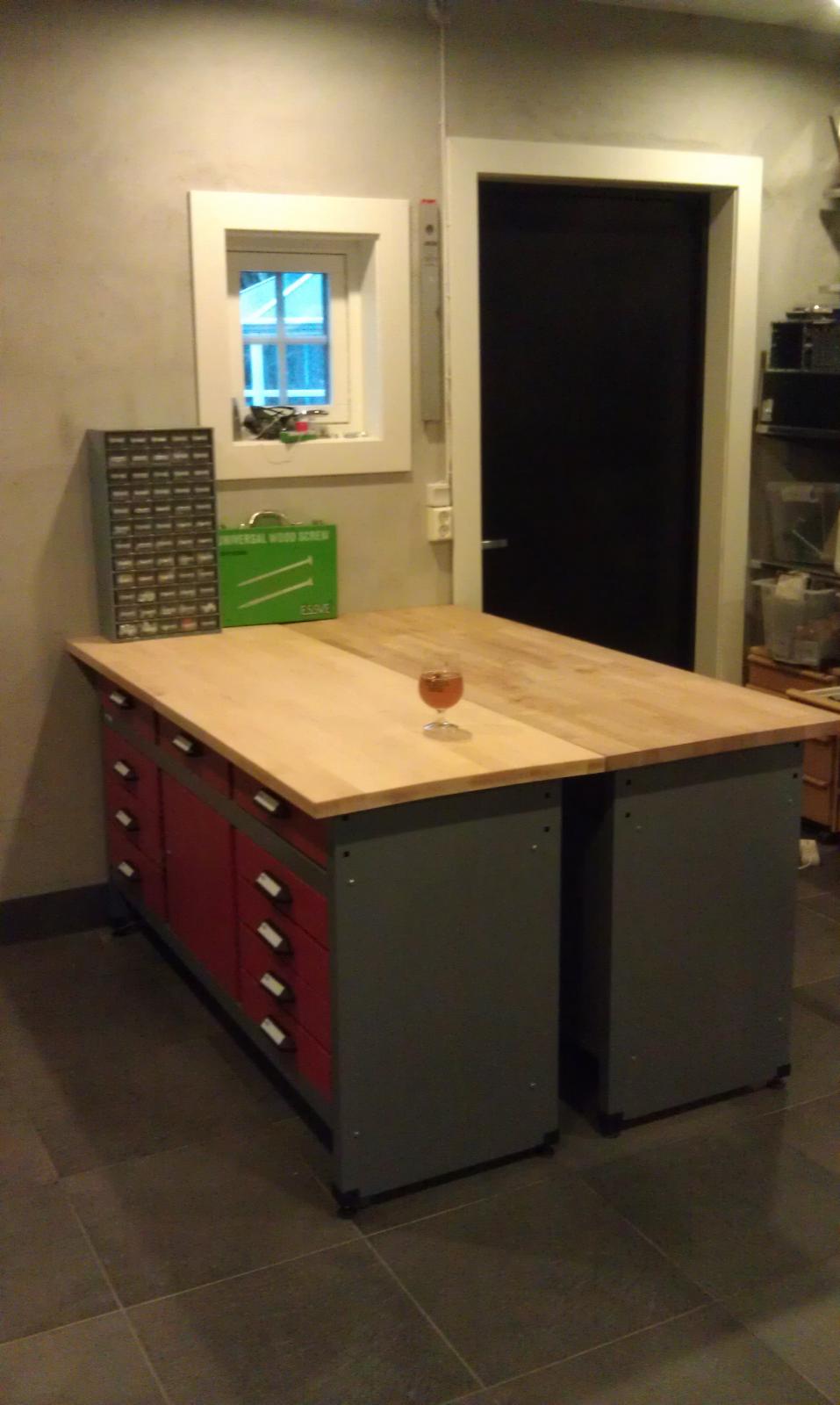

I also got a new workbench, which was needed! Took three atempt to set up the shit from germany, but it's the best when it's finished! Lot's of pics under



[Gjest medlem-245286]

02.04.2012: Still waiting.

Sorry guys, I have ordered a lot from FrozenCPU but it takes time......Recieved some item from mnpctech which are beeing posted later today. Unfortanly it's not enough to paint the case and partly finish it up.



Bare with me, it's gonna be awesome at the end!



Specs:

MB: ASRock Extreme 4m

CPU: Intel i7 3930k

RAM: Not sure, GSkill or dominator - depends on what my wallet allow me

GPU: x2 XFX 6970

PSU: XFX 1250watt

SSD: x2 OCZ Vertex 240GB SSD

Full Watercooling from bitspower, ekwb and techbay



This is only temporary

[Gjest medlem-245286]

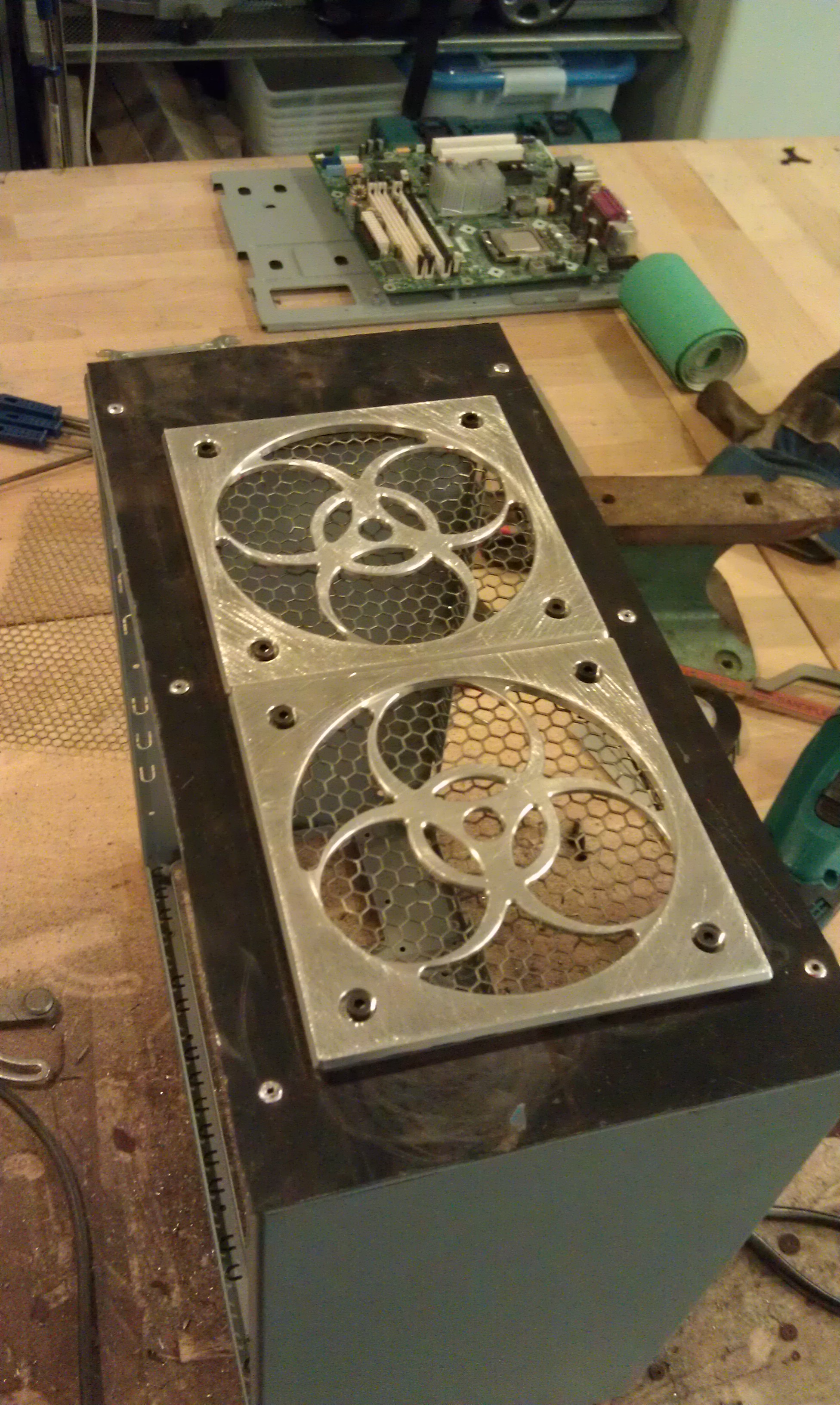

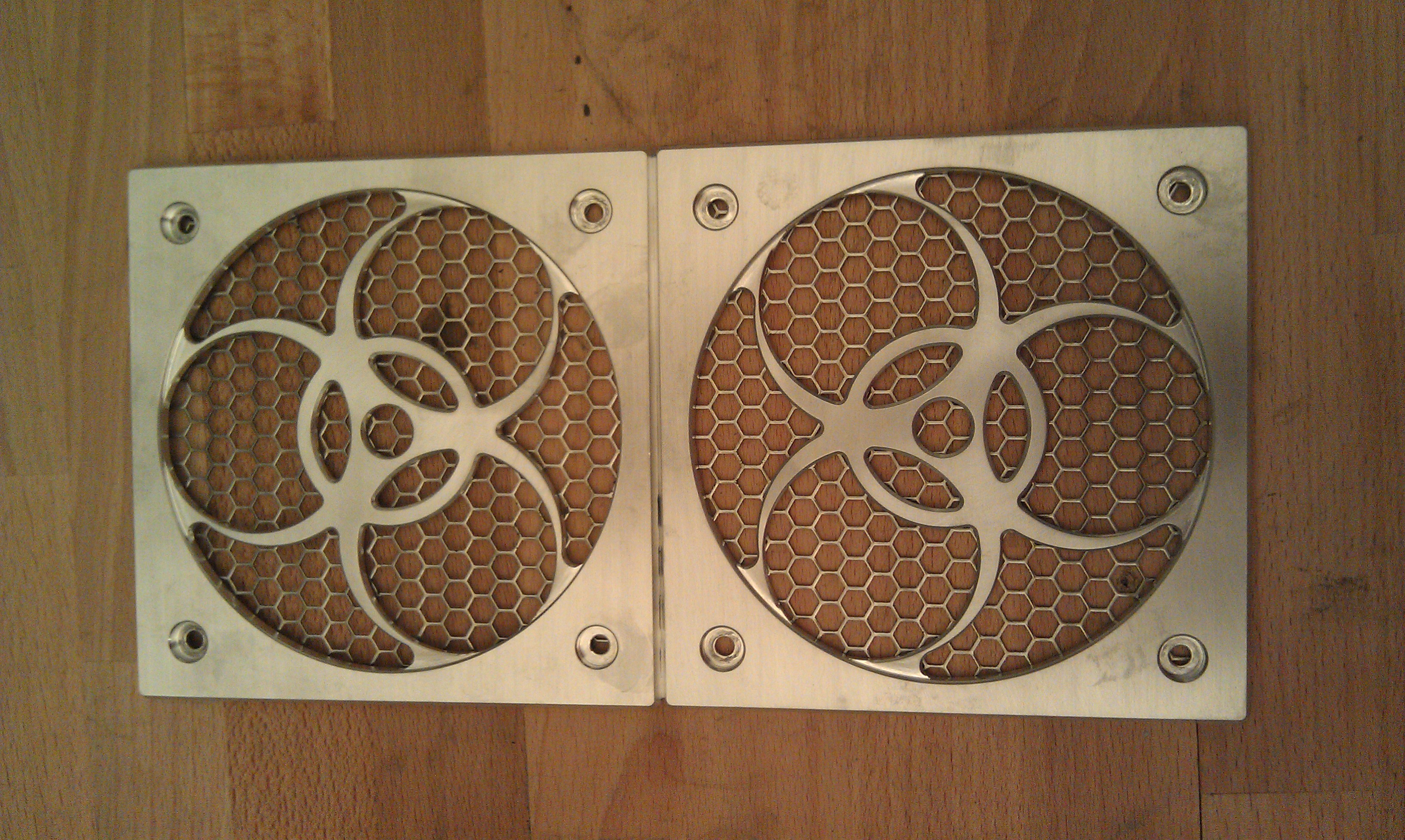

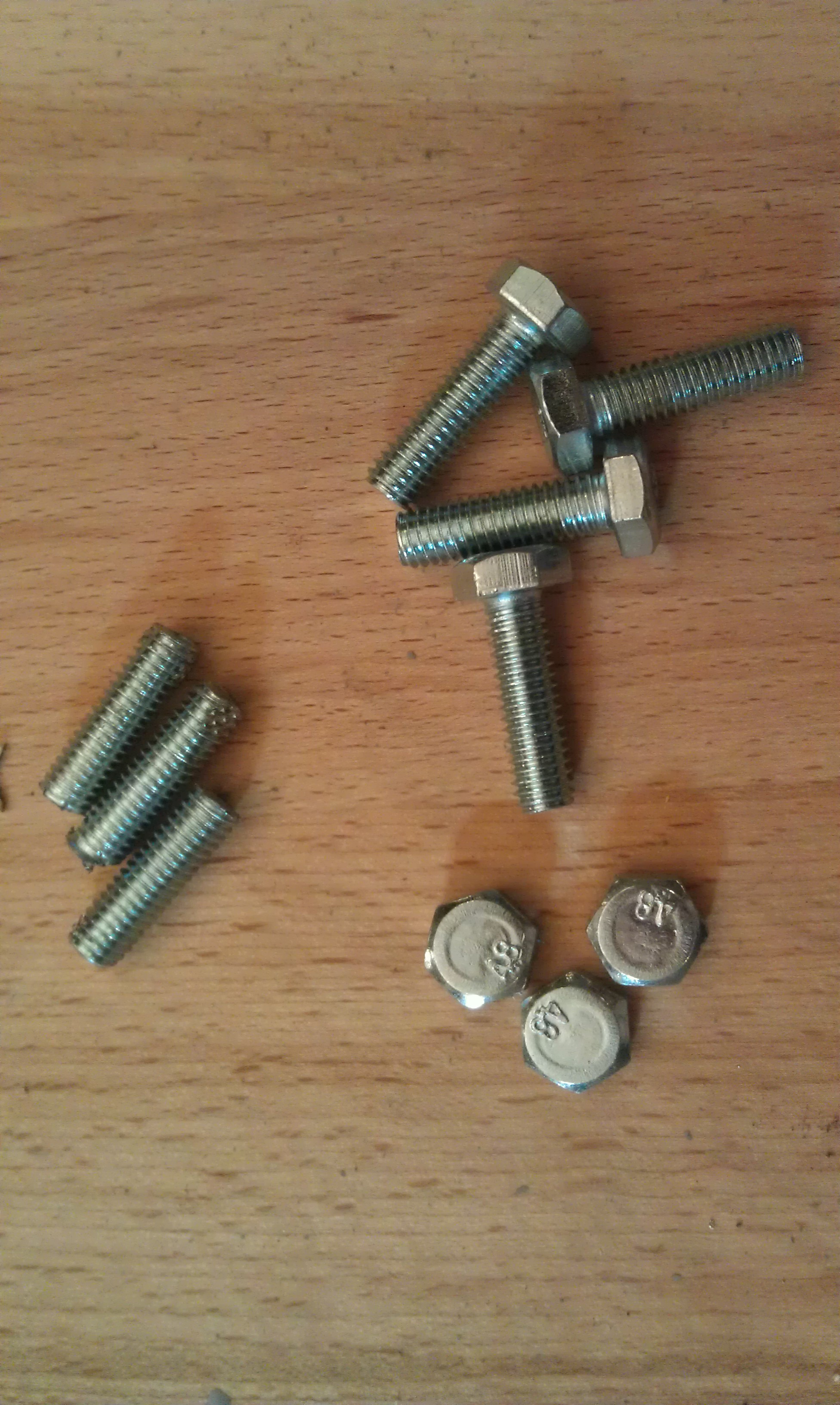

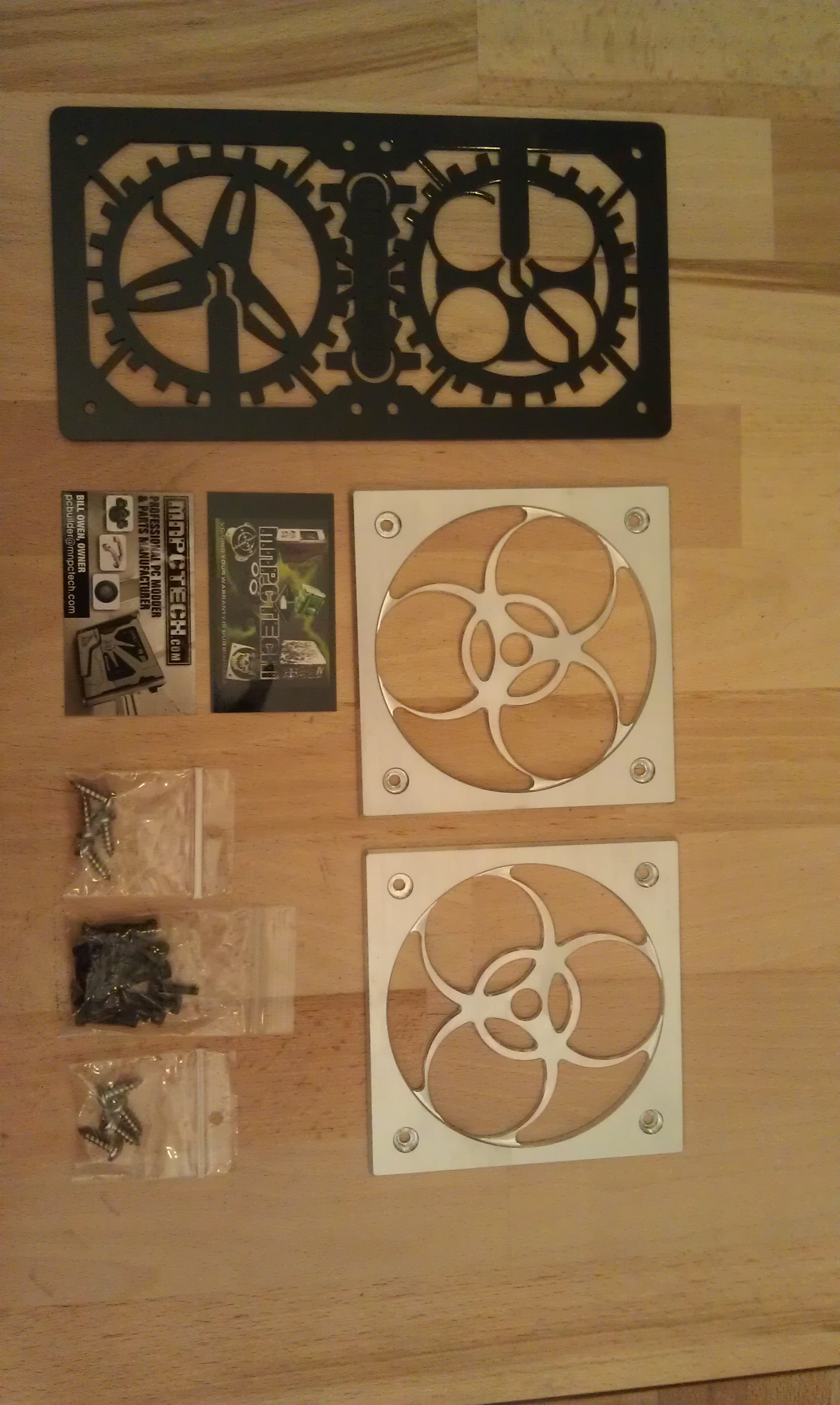

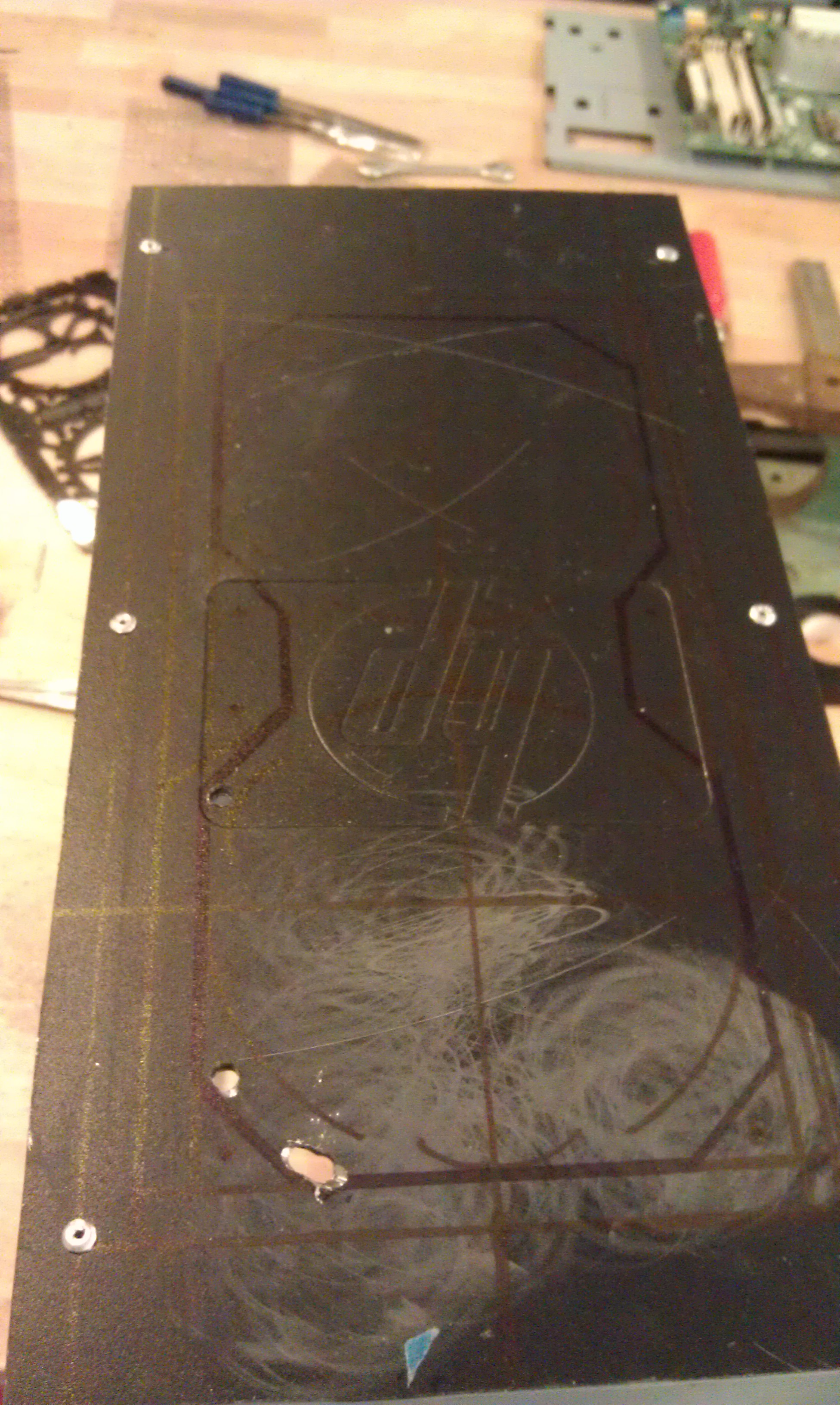

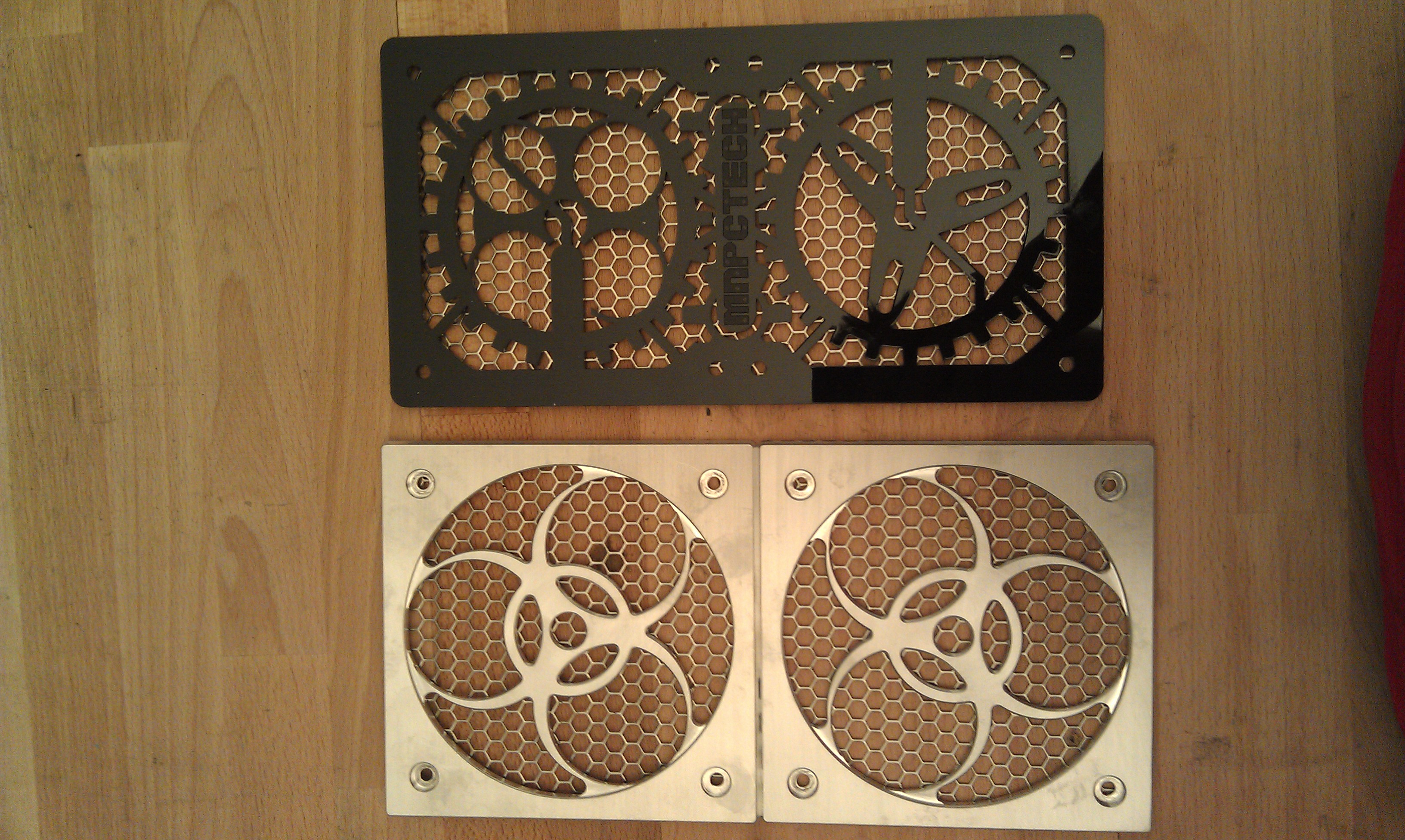

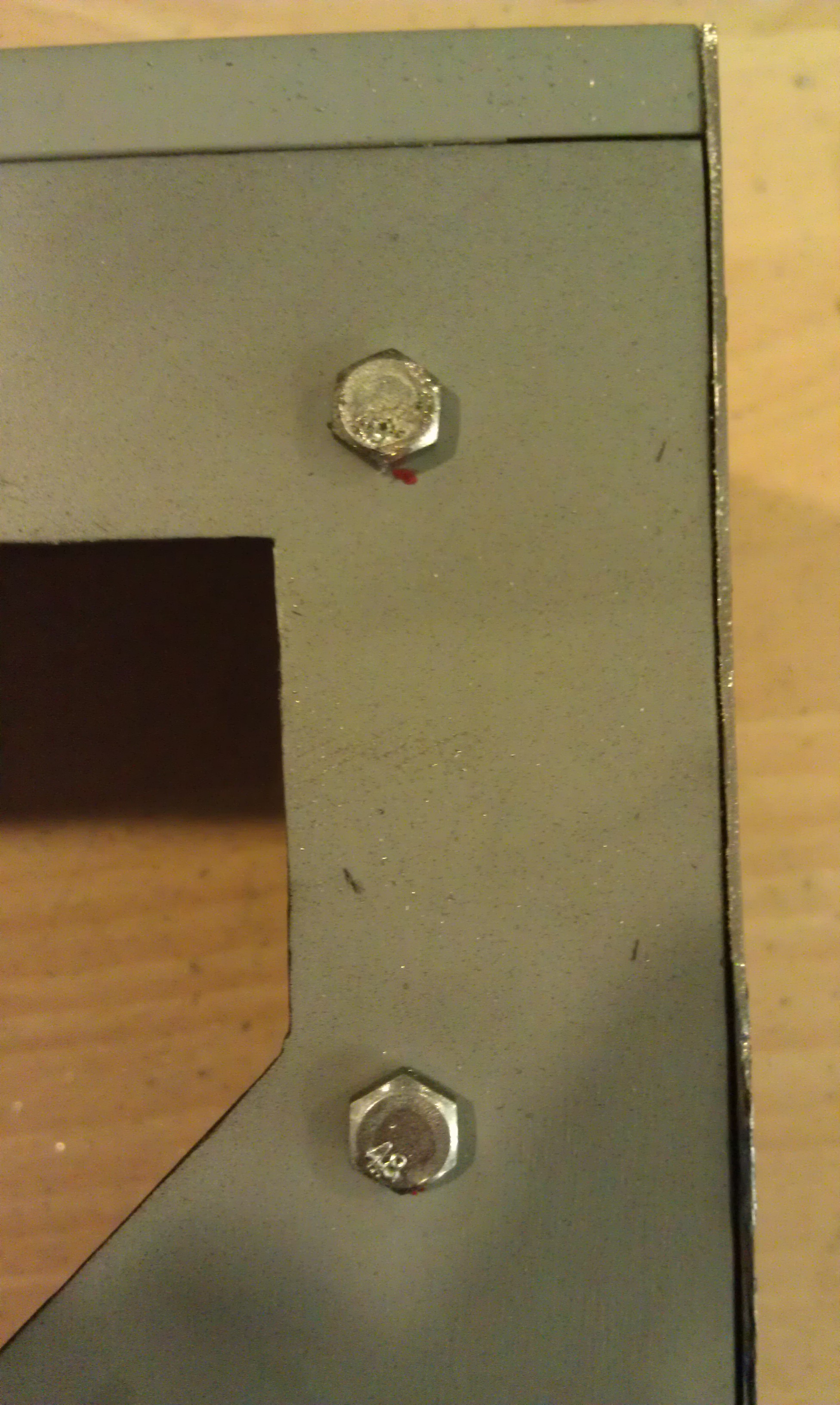

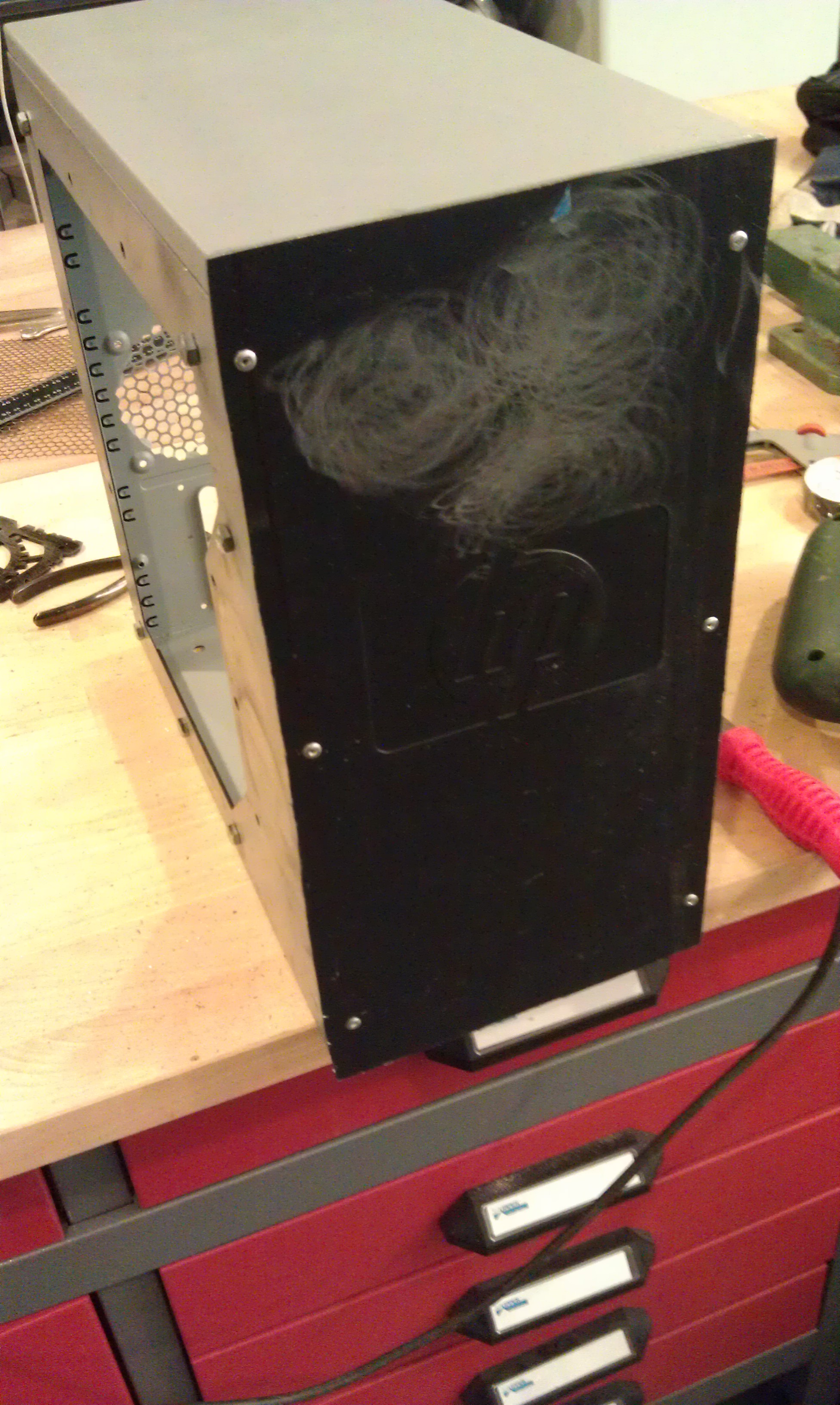

Here are the parts from MNPCTECH and some small moding, waiting for modding supply from frozencpu. Enjoy



















Endret 3. april 2012 av medlem-245286

[Gjest medlem-245286]

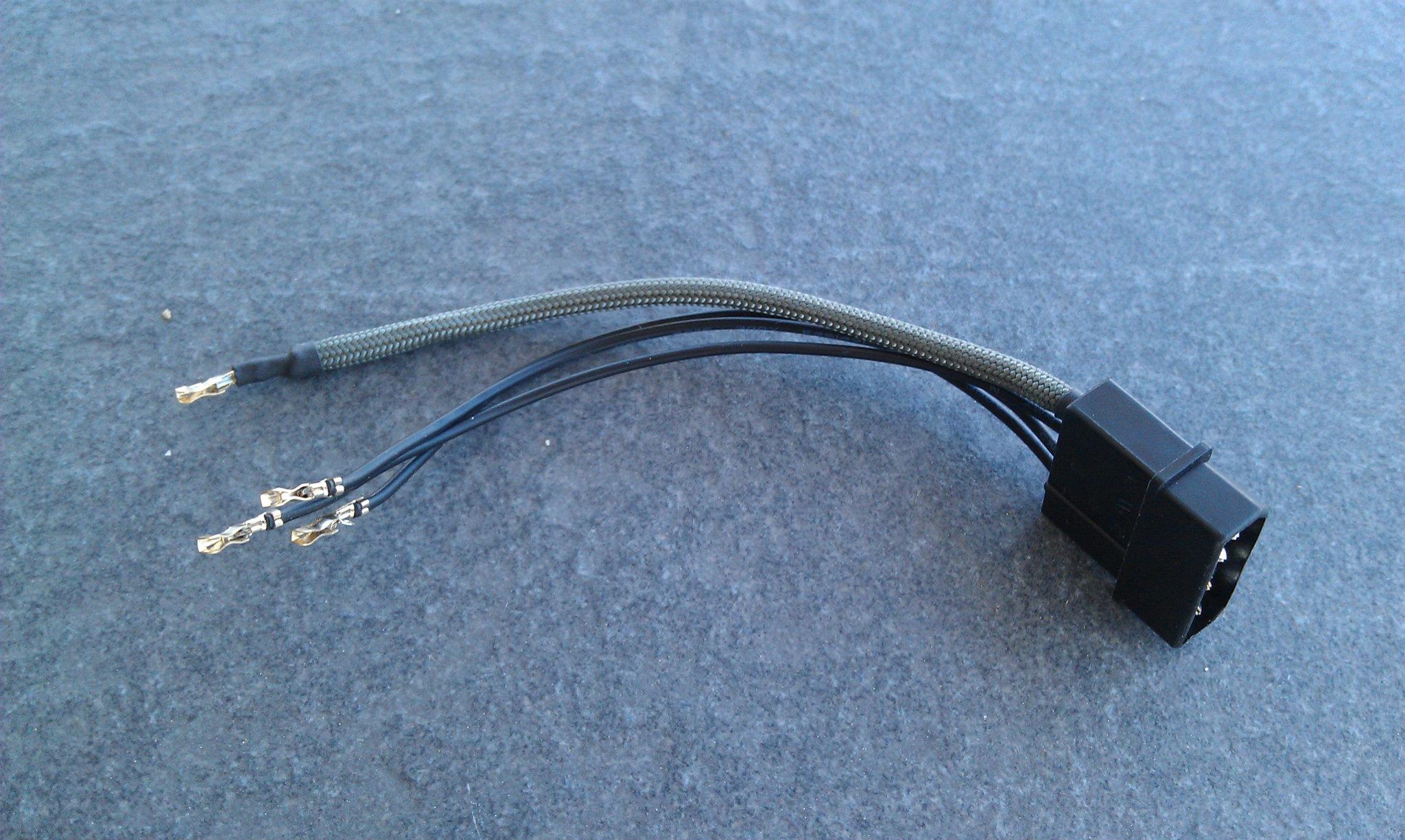

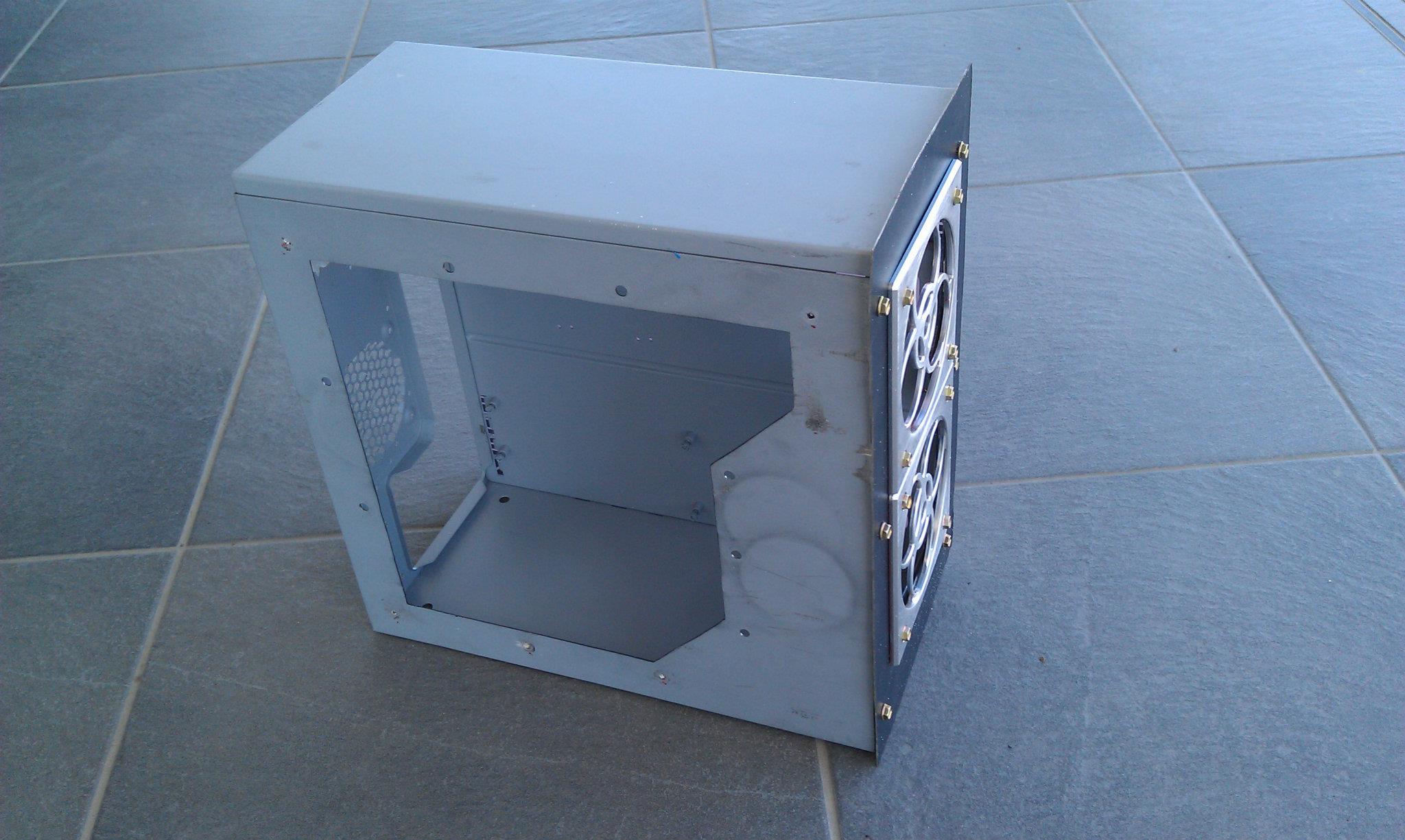

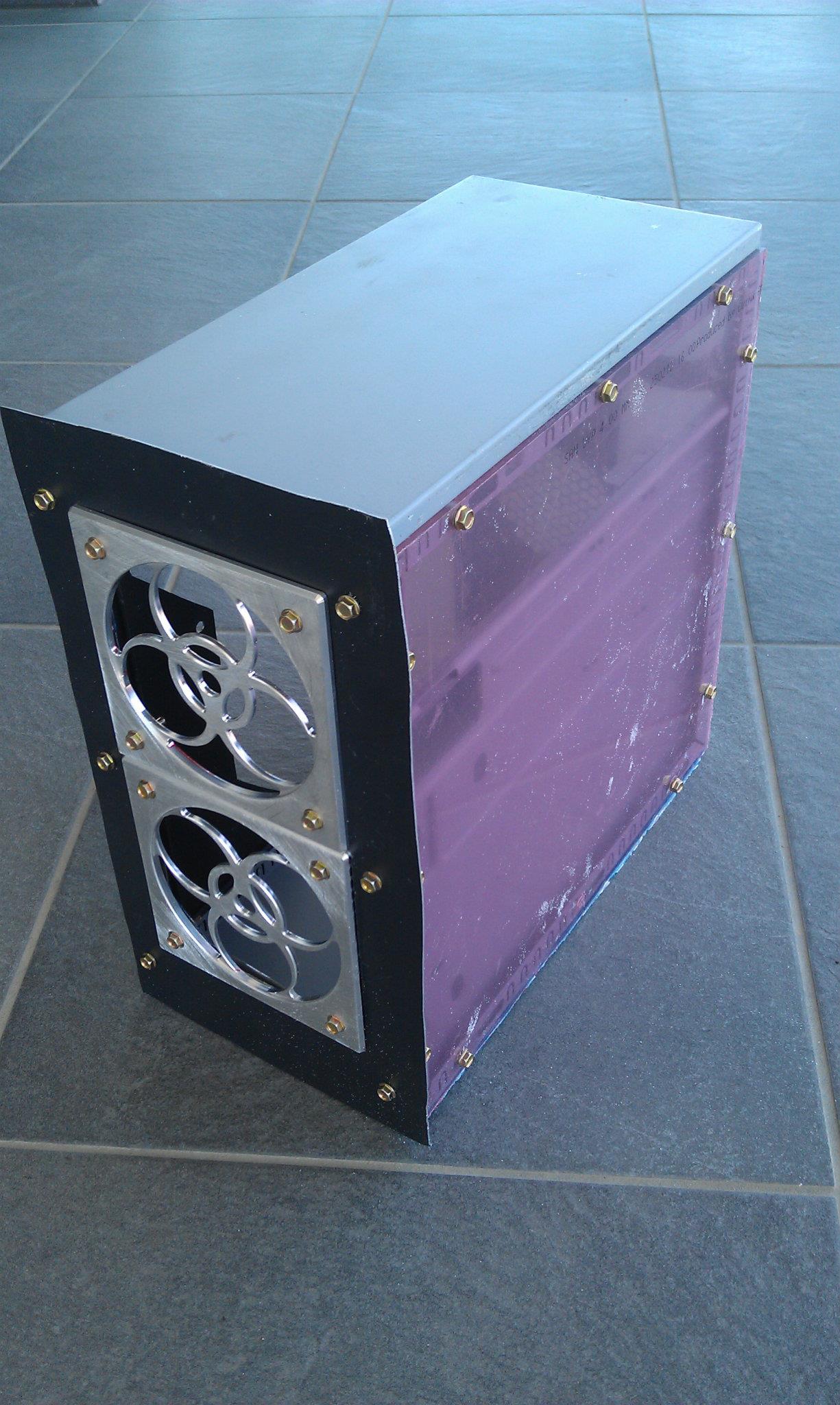

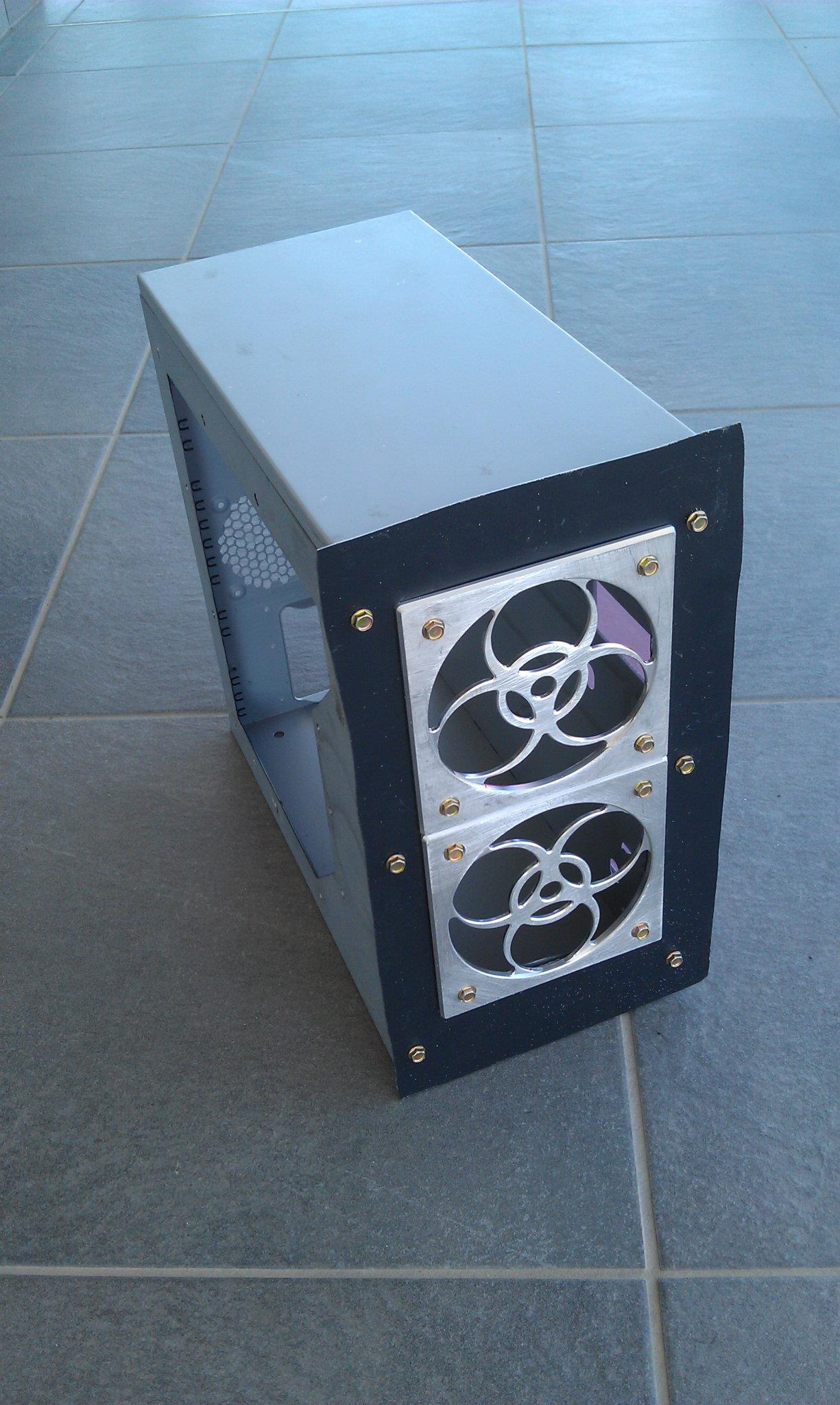

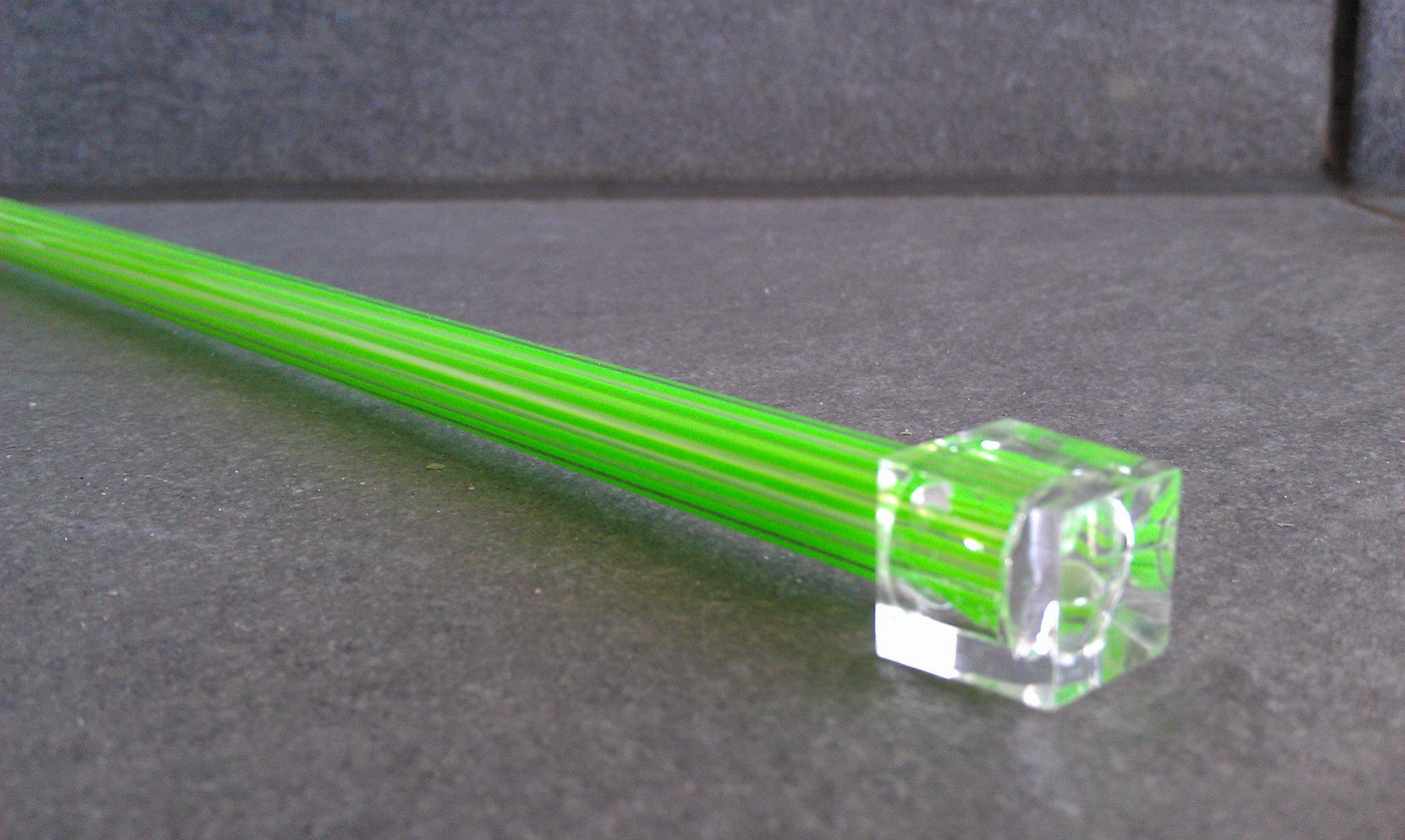

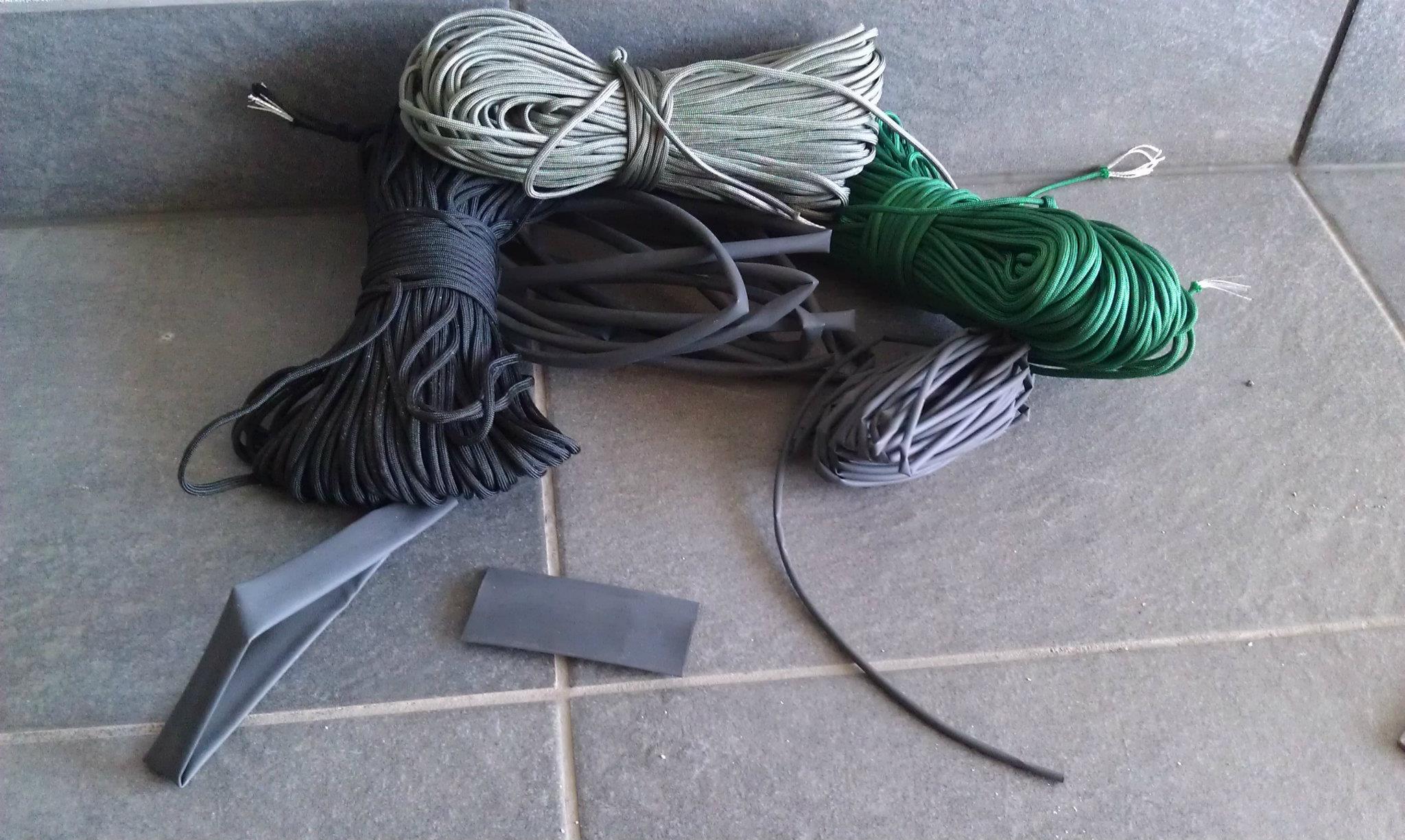

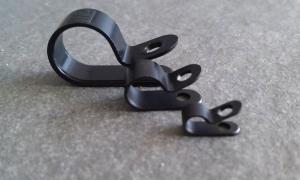

Here is some new photos, The quality will stay like this in the future!
