[LØST] Uønsket firkant i Conky

[Kleivis]

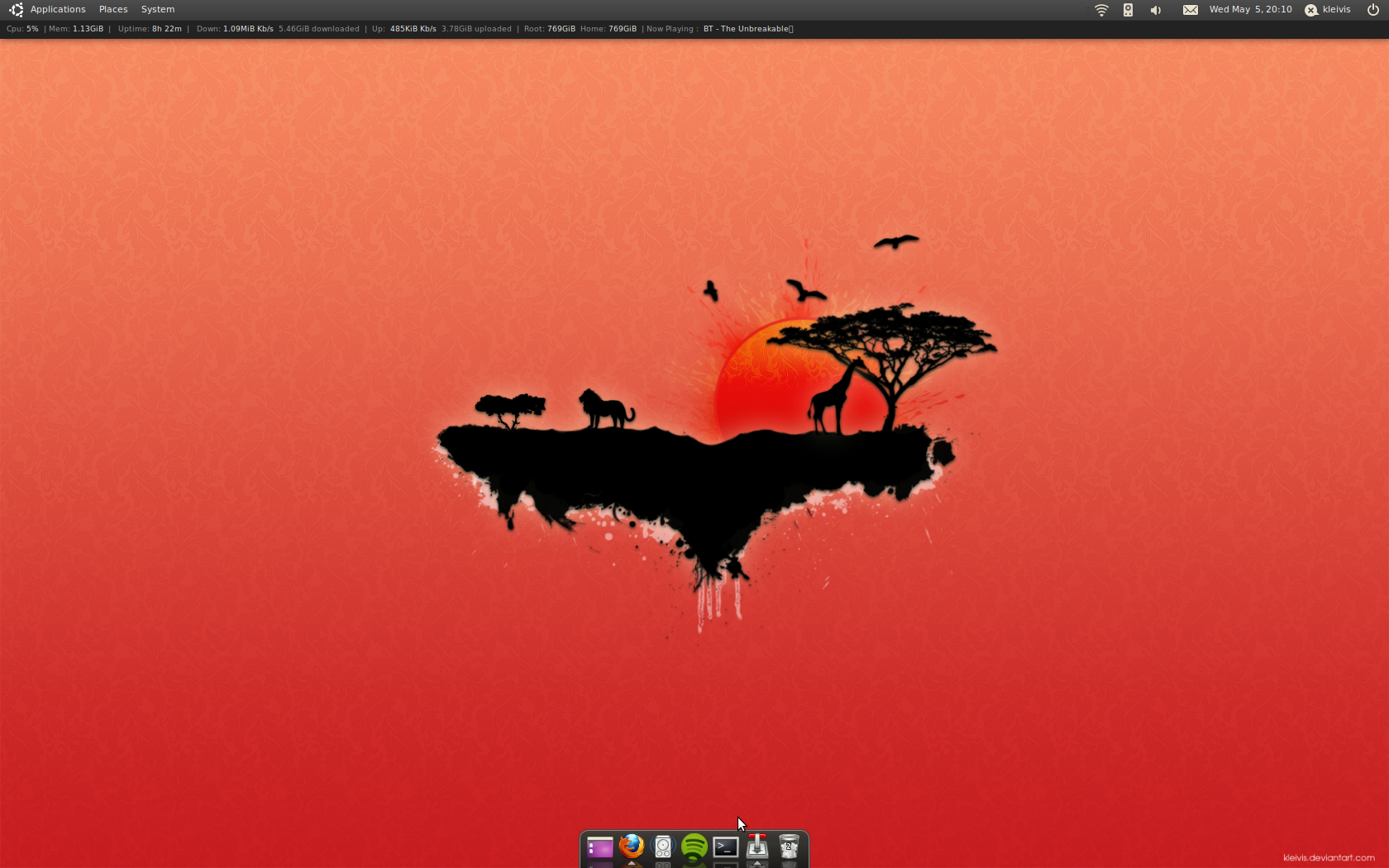

Eg fant et Conky script som eg har sett en del bruker, men helt på slutten etter Rythmbox info får eg en uønsket firkant. Hvordan får eg den bort? :|





#avoid flicker

double_buffer yes



#own window to run simultanious 2 or more conkys

own_window  yes

own_window_transparent no

own_window_type normal

own_window_hints undecorate,sticky,skip_taskbar,skip_pager



#borders

draw_borders no

border_margin 1



#shades

draw_shades no



#position

gap_x 5

gap_y 0

alignment top_left



#behaviour

update_interval 1



#colour

default_color  8f8f8f

#default_shade_color 000000

own_window_colour 222222



#font

use_xft yes

xftfont DejaVu Serif Book:pixelsize=9



#to prevent window from moving

use_spacer none

minimum_size 1680 0



#mpd

mpd_host localhost

mpd_port 6600



# Possible variables to be used:

#

#      Variable         Arguments                  Description

#  acpiacadapter                     ACPI ac adapter state.

#  acpifan                           ACPI fan state

#  acpitemp                          ACPI temperature.

#  adt746xcpu                        CPU temperature from therm_adt746x

#  adt746xfan                        Fan speed from therm_adt746x

#  battery           (num)           Remaining capasity in ACPI or APM

#                                    battery. ACPI battery number can be

#                                    given as argument (default is BAT0).

#  buffers                           Amount of memory buffered

#  cached                            Amount of memory cached

#  color             (color)         Change drawing color to color

#  cpu                               CPU usage in percents

#  cpubar            (height)        Bar that shows CPU usage, height is

#                                    bar's height in pixels

#  downspeed         net             Download speed in kilobytes

#  downspeedf        net             Download speed in kilobytes with one

#                                    decimal

#  exec              shell command   Executes a shell command and displays

#                                    the output in torsmo. warning: this

#                                    takes a lot more resources than other

#                                    variables. I'd recommend coding wanted

#                                    behaviour in C and posting a patch :-).

#  execi             interval, shell Same as exec but with specific interval.

#                    command         Interval can't be less than

#                                    update_interval in configuration.

#  fs_bar            (height), (fs)  Bar that shows how much space is used on

#                                    a file system. height is the height in

#                                    pixels. fs is any file on that file

#                                    system.

#  fs_free           (fs)            Free space on a file system available

#                                    for users.

#  fs_free_perc      (fs)            Free percentage of space on a file

#                                    system available for users.

#  fs_size           (fs)            File system size

#  fs_used           (fs)            File system used space

#  hr                (height)        Horizontal line, height is the height in

#                                    pixels

#  i2c               (dev), type, n  I2C sensor from sysfs (Linux 2.6). dev

#                                    may be omitted if you have only one I2C

#                                    device. type is either in (or vol)

#                                    meaning voltage, fan meaning fan or temp

#                                    meaning temperature. n is number of the

#                                    sensor. See /sys/bus/i2c/devices/ on

#                                    your local computer.

#  kernel                            Kernel version

#  loadavg           (1), (2), (3)   System load average, 1 is for past 1

#                                    minute, 2 for past 5 minutes and 3 for

#                                    past 15 minutes.

#  machine                           Machine, i686 for example

#  mails                             Mail count in mail spool. You can use

#                                    program like fetchmail to get mails from

#                                    some server using your favourite

#                                    protocol. See also new_mails.

#  mem                               Amount of memory in use

#  membar            (height)        Bar that shows amount of memory in use

#  memmax                            Total amount of memory

#  memperc                           Percentage of memory in use

#  new_mails                         Unread mail count in mail spool.

#  nodename                          Hostname

#  outlinecolor      (color)         Change outline color

#  pre_exec          shell command   Executes a shell command one time before

#                                    torsmo displays anything and puts output

#                                    as text.

#  processes                         Total processes (sleeping and running)

#  running_processes                 Running processes (not sleeping),

#                                    requires Linux 2.6

#  shadecolor        (color)         Change shading color

#  stippled_hr       (space),        Stippled (dashed) horizontal line

#                    (height)

#  swapbar           (height)        Bar that shows amount of swap in use

#  swap                              Amount of swap in use

#  swapmax                           Total amount of swap

#  swapperc                          Percentage of swap in use

#  sysname                           System name, Linux for example

#  time              (format)        Local time, see man strftime to get more

#                                    information about format

#  totaldown         net             Total download, overflows at 4 GB on

#                                    Linux with 32-bit arch and there doesn't

#                                    seem to be a way to know how many times

#                                    it has already done that before torsmo

#                                    has started.

#  totalup           net             Total upload, this one too, may overflow

#  updates                           Number of updates (for debugging)

#  upspeed           net             Upload speed in kilobytes

#  upspeedf          net             Upload speed in kilobytes with one

#                                    decimal

#  uptime                            Uptime

#  uptime_short                      Uptime in a shorter format

#

#  seti_prog                         Seti@home current progress

#  seti_progbar      (height)        Seti@home current progress bar

#  seti_credit                       Seti@hoome total user credit



#$alignc center text

TEXT

${voffset -1} Cpu: ${color e0e0e0}${font}${cpu cpu0}% ${color} | Mem: ${color e0e0e0}${font}${mem}${color}  |  ${color} Uptime: ${color e0e0e0}${font}${uptime_short}${color}  |  ${color} Down: ${color e0e0e0}${font}${downspeed wlan0} Kb/s ${color} ${totaldown wlan0} downloaded${color}  |  Up: ${color} ${color e0e0e0}${upspeed wlan0} Kb/s ${color} ${totalup wlan0} uploaded${color}  |  ${color}Root: ${color e0e0e0}${font}${fs_free /} ${color} Home: ${color e0e0e0}${font}${fs_free /home}${color}  | Now Playing : ${color e0e0e0}${font} ${exec rhythmbox-client --no-start --print-playing-format %aa} - ${exec rhythmbox-client --no-start --print-playing-format %tt}

Endret 5. mai 2010 av Kleivert

[Xecuter]

Funker det hvis du bytter ut "--print-playing-format" med "--print-playing"?

[Kleivis]

Ja, men firkanten går ikke bort uansett om eg fjerner alt som har med Rythmbox å gjøre, så det er ikke der feilen ligger tror eg.



Fant forsåvidt ut av det var nok med: ${exec rhythmbox-client --print-playing}



som du sier

Endret 5. mai 2010 av Kleivert

[Sokkalf™]

Har sett lignende når tekstfiler (i dette tilfellet conky-configen) har vært innom en Windows-maskin og fått med seg en CRLF. Unix bruker bare LF (linefeed), så CR (carriage return) vises ofte som en firkant e.l.



Prøv å gå på linjen under, trykk backspace, så enter igjen og lagre. Evt. spesifiser i en tekst-editor at du vil lagre fila i unix-format, og ikke dos-format.

[Kleivis]

Supert! Fungerte når eg lagret i Unix format. Takker!
