Den effektive og lærerike tråden om Conky :)


molland

Anbefalte innlegg

Dette kommer når jeg skrev conky i terminal.. i oppstarten står det att files ikke finnes. Men det gjør den jo

Hvis det står at den ikke finnes gjør den ikke det, prøv å bruk tab for å fullføre stien. Og er du heeeelt sikker på at du har en FIL som heter .conkyrc (legg merke til punktumet) i hjemmekatalogen din?

Lenke til kommentar
Videoannonse
Annonse

jeg har to problemer med conky.



1. den skal være på bottom_right, men er nede - nesten midt på, litt til venstre.

2. hver gang den oppdaterer seg så forsvinner skrivebordsikonene =/



her er min conky.conf:





# Conky, a system monitor, based on torsmo

#

# Any original torsmo code is licensed under the BSD license

#

# All code written since the fork of torsmo is licensed under the GPL

#

# Please see COPYING for details

#

# Copyright © 2004, Hannu Saransaari and Lauri Hakkarainen

# Copyright © 2005-2007 Brenden Matthews, Philip Kovacs, et. al. (see AUTHORS)

# All rights reserved.

#

# This program is free software: you can redistribute it and/or modify

# it under the terms of the GNU General Public License as published by

# the Free Software Foundation, either version 3 of the License, or

# (at your option) any later version.

#

# This program is distributed in the hope that it will be useful,

# but WITHOUT ANY WARRANTY; without even the implied warranty of

# MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the

# GNU General Public License for more details.

# You should have received a copy of the GNU General Public License

# along with this program. If not, see <http://www.gnu.org/licenses/>.

#

# $Id: conky.conf 990 2007-11-22 19:38:17Z pkovacs $



background no

use_xft yes

xftfont Terminus:size=8

xftalpha 0.8

out_to_console no

update_interval 5.0

total_run_times 0

own_window no

double_buffer yes

minimum_size 1000 5

draw_shades no

draw_outline no

draw_borders no

stippled_borders 8

border_margin 4

border_width 1

default_color green

alignment bottom_right

gap_x 10

gap_y 10

no_buffers yes

uppercase no

cpu_avg_samples 2

net_avg_samples 2

override_utf8_locale no

use_spacer yes



TEXT

${color dark green}$sysname $kernel on $machine

${color dark green}Date ${color }${time %a} ${color }${time %e %B %G}

${color dark green}Time ${color }${time %H:%M}

${color dark green}Uptime ${color }$uptime

${color dark green}CPU${color green} $cpu% ${color }${acpitemp}C

${color dark green}Load ${color }$loadavg

${color dark green}CPU freq ${color green}${freq_dyn}

${color dark green}Processes ${color }$processes

${color dark green}Running ${color }$running_processes



${color dark green}RAM ${color dark green}$mem${color } / $memmax

${color dark green}SWAP ${color dark green}$swap${color } / $swapmax



${color dark green}Highest CPU %

${color dark green} ${top name 1} ${top cpu 1}

${color green} ${top name 2} ${top cpu 2}

${color green} ${top name 3} ${top cpu 3}

${color green} ${top name 4} ${top cpu 4}



${color dark green}Highest MEM %

${color dark green} ${top_mem name 1} ${top_mem mem 1}

${color green} ${top_mem name 2} ${top_mem mem 2}

${color green} ${top_mem name 3} ${top_mem mem 3}

${color green} ${top_mem name 4} ${top_mem mem 4}



${color dark green}eth0

${color green}IP address ${color }${addr eth0}

${color green}Up:$color ${upspeed eth0} k/s${color green} - Down:$color ${downspeed eth0} k/s



${color dark green}wlan0

${color green}IP address ${color }${addr wlan0}

${color green}Up:$color ${upspeed wlan0} k/s${color green} - Down:$color ${downspeed wlan0} k/s



${color dark green}BAT

${color green}Remaining ${color }${battery_percent BAT1}%

${color green}Time left ${color }${battery_time BAT1}









og her er min xorg.conf:





Section "InputDevice"

Identifier "Keyboard1"

Driver "kbd"

Option "AutoRepeat" "500 30"

Option "XkbRules" "xorg"

Option "XkbModel" "pc105"

Option "XkbLayout" "no"

EndSection



Section "InputDevice"

Identifier "Synaptics Touchpad"

Driver "synaptics"

Option "Name" "SynPS/2 Synaptics TouchPad"

Option "SHMConfig" "true"

Option "CorePointer"

Option "LeftEdge" "130"

Option "RightEdge" "920"

Option "TopEdge" "130"

Option "BottomEdge" "700"

Option "FingerLow" "5"

Option "FingerHigh" "20"

Option "TapButton1" "1"

Option "MaxTapTime" "150"

Option "MaxTapMove" "2200"

Option "EmulateMidButtonTime" "75"

Option "CoastingSpeed" "30"

Option "CornerCoasting" "true"

Option "VertScrollDelta" "20"

Option "HorizScrollDelta" "20"

Option "MinSpeed" "0.60"

Option "MaxSpeed" "1.00"

Option "AccelFactor" "0.030"

Option "EdgeMotionMinSpeed" "180"

Option "EdgeMotionMaxSpeed" "180"

Option "CircularScrolling" "1"

Option "CircScrollDelta" "0.1"

Option "CircScrollTrigger" "2"

EndSection



Section "InputDevice"

Identifier "Mouse1"

Driver "mouse"

Option "Protocol" "auto"

Option "Device" "/dev/input/mice"

# Option "ZAxisMapping" "4 5 6 7"

Option "ZAxisMapping" "4 5"

Option "Emulate3Buttons" "yes"

EndSection



Section "Monitor"

Identifier "lcd"

HorizSync 31.5 - 57.0

VertRefresh 40.0 - 150.0

EndSection





Section "Device"

Identifier "geeFors"

Driver "nvidia"

VideoRam 524288

Option "RenderAccel" "true"

Option "No logo" "true"

EndSection



Section "Screen"

Identifier "Screen0"

Device "geeFors"

Monitor "lcd"

DefaultDepth 24

SubSection "Display"

Viewport 0 0

Depth 24

Modes "1440x900" "1280x1024" "1024x768" "800x600" "640x480"

EndSubSection

EndSection





Section "Module"

Load "glx"

Load "dri"

Load "dbe"

SubSection "extmod"

Option "omit xfree86-dga"

EndSubSection

Load "freetype"

EndSection



Section "Extensions"

Option "Composite" "Enable"

Option "RENDER" "Enable"

Option "RenderAccel" "true"

EndSection





Endret av indietrash
Lenke til kommentar

indietrash:

1: Jeg vil anbefale deg å bruke gap_x 10 og gap_y 10 (med dine egene tall selvfølgelig) isteden.



2: Kan høres ut som noe ala det jeg slet med med på min maskin en gang, men ati kort og compiz. Har du dette?

Endret av Smif
Lenke til kommentar

har gap. har ikke ATI eller Compiz. jeg vil ikke ha et eget vindu. en av hovedpoengene med min conky er å ha den rett på bakgrunnen. men når jeg kjørte den i eget vindu fant jeg ut at det ikke er noe galt med alignment (right). for dersom dere ser her:




så ser dere at det er forskjøvet til venstre av en eller annen grunn.

Lenke til kommentar

Lurer på en ting. Er det noen som vet hvordan jeg får høyrejustert infoen fra Banshee slik som resten av infoen er i conky?

background no
font Sans:size=8
#xftfont Sans:size=10
use_xft yes
xftalpha 0.9
update_interval 3.0
total_run_times 0
own_window yes
own_window_type normal
own_window_transparent yes
own_window_hints undecorated,below,sticky,skip_taskbar,skip_pager
double_buffer yes
minimum_size 220 5
maximum_width 220
draw_shades yes
draw_outline no
draw_borders no
draw_graph_borders yes
default_color white
default_shade_color black
default_outline_color green
alignment bottom_right
gap_x 12
gap_y 35
no_buffers yes
uppercase no
cpu_avg_samples 2
override_utf8_locale no
uppercase yes # set to yes if you want all text to be in uppercase

TEXT
${color white}SYSTEM ${hr 1}${color}

Hostname: $alignr$nodename
Kernel: $alignr$kernel
Date: $alignr${time %a} ${time %e %B %G}
Time: $alignr${time %H:%M}
Uptime: $alignr$uptime


${color white}Banshee${hr 2}${color white}
${exec banshee-1 --query-artist}
${exec banshee-1 --query-title}
${exec banshee-1 --query-track-number}
${exec banshee-1 --query-album}

${color white}CPU & RAM${hr 2}${color white}

CPU: ${alignr}${freq} MHz
Processes: ${alignr}$processes ($running_processes running)
Load: ${alignr}$loadavg


Ram ${alignr}$mem / $memmax ($memperc%)
${membar 4}
swap ${alignr}$swap / $swapmax ($swapperc%)
${swapbar 4}

Highest CPU $alignr CPU% MEM%
${top name 1}$alignr${top cpu 1}${top mem 1}
${top name 2}$alignr${top cpu 2}${top mem 2}
${top name 3}$alignr${top cpu 3}${top mem 3}

Highest MEM $alignr CPU% MEM%
${top_mem name 1}$alignr${top_mem cpu 1}${top_mem mem 1}
${top_mem name 2}$alignr${top_mem cpu 2}${top_mem mem 2}
${top_mem name 3}$alignr${top_mem cpu 3}${top_mem mem 3}

${color white}Filesystem ${hr 1}${color}

Root: ${alignr}${fs_free /} / ${fs_size /}
${fs_bar 4 /}
Home: ${alignr}${fs_free /home} / ${fs_size /home}
${fs_bar 4 /home}
Windows: ${alignr}${fs_free /media/sda3} / ${fs_size /media/sda3}
${fs_bar 4 /media/sda3}
Film og serier: ${alignr}${fs_free /media/sdb1} / ${fs_size /media/sdb1}
${fs_bar 4 /media/sdb1}


${color white}NETWORK ${hr 1}${color}

${color white}Essid ${alignr}${color }${wireless_essid wlan0}
${color white}Link qual ${alignr}${color }${wireless_link_qual_perc wlan0}%
${color white}Bitrate ${alignr}${color }${wireless_bitrate wlan0}

Down ${downspeed wlan0} k/s ${alignr}Up ${upspeed wlan0} k/s
${downspeedgraph wlan0 25,107} ${alignr}${upspeedgraph wlan0 25,107}
Total ${totaldown wlan0} ${alignr}Total ${totalup wlan0}

kopi av conky configen

Lenke til kommentar

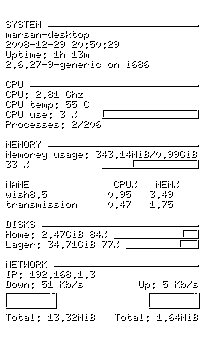

Kjedlig conky-config her. Viser det jeg trenger å se egentlig. Bruker conky mest når jeg rendrer bilder i Blender slik at jeg kan følge med på tempen på CPU ettersom jeg har manuel viftestyring på CPU.

.conkyrc:

Klikk for å se/fjerne innholdet nedenfor

update_interval 1
  #use_xft yes
  #xftfont
  draw_shades yes
  double_buffer yes
  aligment bottom_left
  no_buffers yes
  own_window yes
  own_window_transparent yes
  own_window_type override

  TEXT

  SYSTEM ${hr 2}
  $nodename
  $time
  Uptime: $uptime_short
  $kernel on $machine

  CPU ${hr 2}
  CPU: $freq_g Ghz
  CPU temp: $acpitemp C
  CPU use: $cpu % $alignc${cpubar 8}
  Processes: $running_processes/$processes

  MEMORY ${hr 2}
  Memorey usage: $mem/$memmax
  $memperc % $alignc${membar 8}

  NAME			  CPU%   MEM%
  ${top name 1}${top cpu 1} ${top mem 1}
  ${top name 2}${top cpu 2} ${top mem 2}

  DISKS ${hr 2}
  Home: ${fs_free /home} ${fs_used_perc /home}% ${fs_bar 8 /home}
  Lager: ${fs_free /media/lager} ${fs_used_perc /media/lager}% ${fs_bar 8 /media/lager}

  NETWORK ${hr 2}
  IP: ${addr wlan0}
  Down: ${downspeed wlan0} Kb/s ${alignr}Up: ${upspeed wlan0} Kb/s
  ${downspeedgraph wlan0 15,50 ffffff ffffff} ${alignr}${upspeedgraph wlan0 15,50 ffffff ffffff}$color
  Total: ${totaldown wlan0} ${alignr}Total: ${totalup wlan0}


Endret av Marsan
Lenke til kommentar






background no

font Sans:size=8

#xftfont Sans:size=10

use_xft yes

xftalpha 0.9

update_interval 3.0

total_run_times 0

own_window yes

own_window_type normal

own_window_transparent yes

own_window_hints undecorated,below,sticky,skip_taskbar,skip_pager

double_buffer yes

minimum_size 220 5

maximum_width 500

draw_shades yes

draw_outline no

draw_borders no

draw_graph_borders yes

default_color white

default_shade_color black

default_outline_color green

alignment top_right

gap_x 12

gap_y 0

no_buffers yes

uppercase no

cpu_avg_samples 2

override_utf8_locale no

uppercase yes # set to yes if you want all text to be in uppercase



TEXT

${color white}SYSTEM ${hr 1}${color}



Hostname: $alignr$nodename

Kernel: $alignr$kernel

Uptime: $alignr$uptime

Temp: ${alignr}${acpitemp}C

CPU: ${alignr}${freq} MHz

Processes: ${alignr}$processes ($running_processes running)

Load: ${alignr}$loadavg



CPU1 ${alignr}${cpu cpu1}%

${cpubar 4 cpu1}

CPU2 ${alignr}${cpu cpu2}%

${cpubar 4 cpu2}



Ram ${alignr}$mem / $memmax ($memperc%)

${membar 4}

swap ${alignr}$swap / $swapmax ($swapperc%)

${swapbar 4}



Highest MEM $alignr CPU% MEM%

${top_mem name 1}$alignr${top_mem cpu 1}${top_mem mem 1}

${top_mem name 2}$alignr${top_mem cpu 2}${top_mem mem 2}

${top_mem name 3}$alignr${top_mem cpu 3}${top_mem mem 3}

${top_mem name 4}$alignr${top_mem cpu 4}${top_mem mem 4}

${top_mem name 5}$alignr${top_mem cpu 5}${top_mem mem 5}

${top_mem name 6}$alignr${top_mem cpu 6}${top_mem mem 6}

${top_mem name 7}$alignr${top_mem cpu 7}${top_mem mem 7}

${top_mem name 8}$alignr${top_mem cpu 8}${top_mem mem 8}

${top_mem name 9}$alignr${top_mem cpu 9}${top_mem mem 9}

${top_mem name 10}$alignr${top_mem cpu 10}${top_mem mem 10}



${color white}Filesystem ${hr 1}${color}



Root: ${alignr}${fs_free /} / ${fs_size /}

${fs_bar 4 /}

Disk: ${alignr}${fs_free /media/disk} / ${fs_size /media/disk}

${fs_bar 4 /media/disk}

MEdia: ${alignr}${fs_free /media/media} / ${fs_size /media/media}

${fs_bar 4 /media/media}



${color white}NETWORK ${hr 1}${color}



${color white}WIRELESS: ${color}

Down ${downspeed wlan0} k/s ${alignr}Up ${upspeed wlan0} k/s

${downspeedgraph wlan0 25,107} ${alignr}${upspeedgraph wlan0 25,107}

Total ${totaldown wlan0} ${alignr}Total ${totalup wlan0}



${color white}LAN: ${color}

Down ${downspeed eth0} k/s ${alignr}Up ${upspeed eth0} k/s

${downspeedgraph eth0 25,107} ${alignr}${upspeedgraph eth0 25,107}

Total ${totaldown eth0} ${alignr}Total ${totalup eth0}







Om noen skulle ønske å bruke denne må dere selv endre stien til partisjonene og evt fjerne Wireless.

Lenke til kommentar

Holder på å finjustere litt da, og batterivisern er heller ikke ferdig (må lage min egen siden conky sine alternativer ikke fungerte)

Klikk for å se/fjerne innholdet nedenfor

background yes
font Bitstream Vera Sans:size=9
xftfont Bitstream Vera Sans:size=9
use_xft yes
xftalpha 0.1
update_interval 1.0
total_run_times 0
own_window yes
own_window_type override
own_window_transparent yes
own_window_hints undecorated,below,sticky,skip_taskbar,skip_pager
double_buffer yes
draw_shades no
draw_outline no
draw_borders no
draw_graph_borders yes
minimum_size 324
maximum_width 310
default_color white
default_shade_color 000000
default_outline_color 000000
alignment top_right
gap_x 2
gap_y 24
no_buffers yes
cpu_avg_samples 2
override_utf8_locale yes
uppercase no # set to yes if you want all text to be in uppercase
use_spacer right

TEXT
$alignc Hostname: $nodename
$alignc Kernel: $kernel
$alignc Uptime: $uptime
${font DejaVuSans:Condensed:Bold:size=18} ${time  %d/%m-%Y %H:%M:%S}${font Bitstream Vera Sans:size=9}
${color #B8FF00}CPU:${color white}
Core1:$alignr ${cpu cpu1}%@${freq_g cpu1}GHz ${cpubar cpu1 7,76}
Core2:$alignr ${cpu cpu2}%@${freq_g cpu2}GHz ${cpubar cpu2 7,76}
Overall Usage:$alignr $cpu% $alignr${cpubar 8,182}
${cpugraph 20,}

${color #B8FF00}MEM:${color white}
RAM ${alignr}$mem / $memmax ($memperc%)
${membar 8}
SWAP ${alignr}$swap / $swapmax ($swapperc%)
${swapbar 8}

Linux: ${fs_bar 8,200 /} ${fs_used_perc /}%
Totalt: ${fs_size /}  ${alignr}Ledig: ${fs_free /}(${fs_free_perc /}%)
Home: ${fs_bar 8,200 /home} ${fs_used_perc /home}%
Totalt: ${fs_size /home}  ${alignr}Ledig: ${fs_free /home}(${fs_free_perc /home}%)
Storeage: ${fs_bar 8,200 /media/storeage} ${fs_used_perc /}%
Totalt: ${fs_size /media/storeage}  ${alignr}Ledig: ${fs_free /media/storeage}(${fs_free_perc /media/storeage}%)

${color #B8FF00}Strøm:${color white} ${acpiacadapter}
${execpi 3 /home/alexander/.conky_script/battery_stats}
${execpi 60 /home/alexander/.conky_script/server_stats.php}

${color #B8FF00}LAN:${color white} ${alignr}IP: ${addr eth0}
${color green}LAN Download:                  $alignr${color #FF0009}LAN Upload:
${color green}${downspeed eth0} k/s                                  ${alignr}     ${color #FF0009} ${upspeed eth0} k/s
${color green}${downspeedgraph eth0 20,150} ${alignr}${color #FF0009}${upspeedgraph eth0 20,150}
${color green}Total:${totaldown eth0}  ${alignr}${color #FF0009}Total:${totalup eth0}

${color #B8FF00}WiFi:${color white} ${alignc}                 IP: ${addr wlan0} ${alignr}Rate:${color orange}${wireless_bitrate wlan0}${color white}
Link quality: ${color orange}${wireless_link_qual_perc wlan0}%${color white} ${alignr}${wireless_link_bar 8,185 wlan0}
${color green}WiFi Download: ${color white}${alignc}    ESSID: ${color orange}${wireless_essid wlan0}${color white} $alignr${color #FF0009}WiFi Upload:
${color green}${downspeed wlan0}KB/s    ${color #FF0009} ${alignr}${upspeed wlan0}KB/s
${color green}${downspeedgraph wlan0 20,150} ${alignr}${color #FF0009}${upspeedgraph wlan0 20,150}
${color green}Total:${totaldown wlan0}  ${alignr}${color #FF0009}Total:${totalup wlan0}
${color white}AP Mode: ${wireless_mode wlan0} ${alignr}AP MAC: ${wireless_ap wlan0}

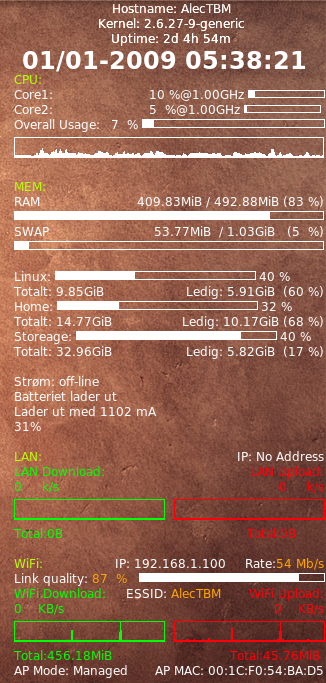

Nytt bilde (stort bilde):

Klikk for å se/fjerne innholdet nedenfor



Kjører et php script til å parse acpi filene, funker bra, skal fikse en bar nå snart.



Jeg har et problem da, hvis jeg klikker på conkyen på visse områder så blir det som å klikke på ikonene på andre siden, det er litt irriterende, noen forslag?



EDIT:

Da har jeg lagt til en batteribar og serverstats xD

Henter fram oppetid og temperatur på servern :)

Php brukes der også

Endret av AlecTBM
Lenke til kommentar
  • 2 uker senere...




Konfigurasjonsfil:





background yes

use_xft yes

xftfont 123:size=8

xftalpha 0.1

update_interval 1

total_run_times 0

own_window yes

own_window_type normal

own_window_transparent yes

own_window_hints undecorated,below,sticky,skip_taskbar,skip_pager

double_buffer yes

minimum_size 250 5

maximum_width 400

draw_shades no

draw_outline no

draw_borders no

draw_graph_borders no

default_color gray

default_shade_color red

default_outline_color green

alignment top_right

gap_x 10

gap_y 10

no_buffers no

uppercase no

cpu_avg_samples 2

net_avg_samples 1

override_utf8_locale yes

use_spacer yes

text_buffer_size 256



TEXT



${color Tan1}${font openlogos:size=20}U${font Arial:size=20}GNU${color DimGray}/${color Ivory}LINUX${font openlogos:size=20}t



${voffset -90}

${color DimGray}

${font}

${font Arial:bold:size=10}${color Tan1}SYSTEM ${color DarkSlateGray} ${hr 2}

$font${color DimGray}$sysname $kernel $alignr $machine

Oppetid $alignr${uptime}

Prosesser: ${alignr}$processes ($running_processes running)

Load: ${alignr}$loadavg



${font Arial:bold:size=10}${color Tan1}PROSESSER ${color DarkSlateGray}${hr 2}

$font${color DimGray}CPU1 ${cpu cpu1}% ${cpubar cpu1}

CPU2 ${cpu cpu2}% ${cpubar cpu2}



${font Arial:bold:size=10}${color Tan1}MINNE ${color DarkSlateGray}${hr 2}

$font${color DimGray}RAM $alignc $mem / $memmax $alignr $memperc%

$membar

$font${color DimGray}SWAP ${alignc}$swap / $swapmax $alignr $swapperc%

${swapbar}



${font Arial:bold:size=10}${color Tan1}HDD ${color DarkSlateGray}${hr 2}

$font${color DimGray}/ $alignc ${fs_used /} / ${fs_size /} $alignr ${fs_free_perc /}%

${fs_bar /}





${font Arial:bold:size=10}${color Tan1}CPU ${color DarkSlateGray}${hr 2}

${color DimGray}$font${top name 1}${alignr}${top cpu 1} %

$font${top name 2}${alignr}${top cpu 2} %

$font${top name 3}${alignr}${top cpu 3} %

$font${top name 4}${alignr}${top cpu 4} %



${font Arial:bold:size=10}${color Tan1}MINNEBRUK ${color DarkSlateGray}${hr 2}

${color DimGray}$font${top_mem name 1}${alignr}${top mem 1} %

$font${top_mem name 2}${alignr}${top mem 2} %

$font${top_mem name 3}${alignr}${top mem 3} %

$font${top_mem name 4}${alignr}${top mem 4} %





${font Arial:bold:size=10}${color Tan2}NETTVERK ${color DarkSlateGray}${hr 2}

$font${color DimGray}IP @ wlan0 $alignr ${addr wlan0}



Ned $alignr ${downspeed wlan0} kb/s

Opp $alignr ${upspeed wlan0} kb/s



Nedlastet: $alignr ${totaldown wlan0}

Opplastet: $alignr ${totalup wlan0}

$endif





Lenke til kommentar

Opprett en konto eller logg inn for å kommentere

Du må være et medlem for å kunne skrive en kommentar

Opprett konto

Det er enkelt å melde seg inn for å starte en ny konto!

Start en konto

Logg inn

Har du allerede en konto? Logg inn her.

Logg inn nå
  • Hvem er aktive   0 medlemmer

    • Ingen innloggede medlemmer aktive
×
×
  • Opprett ny...
